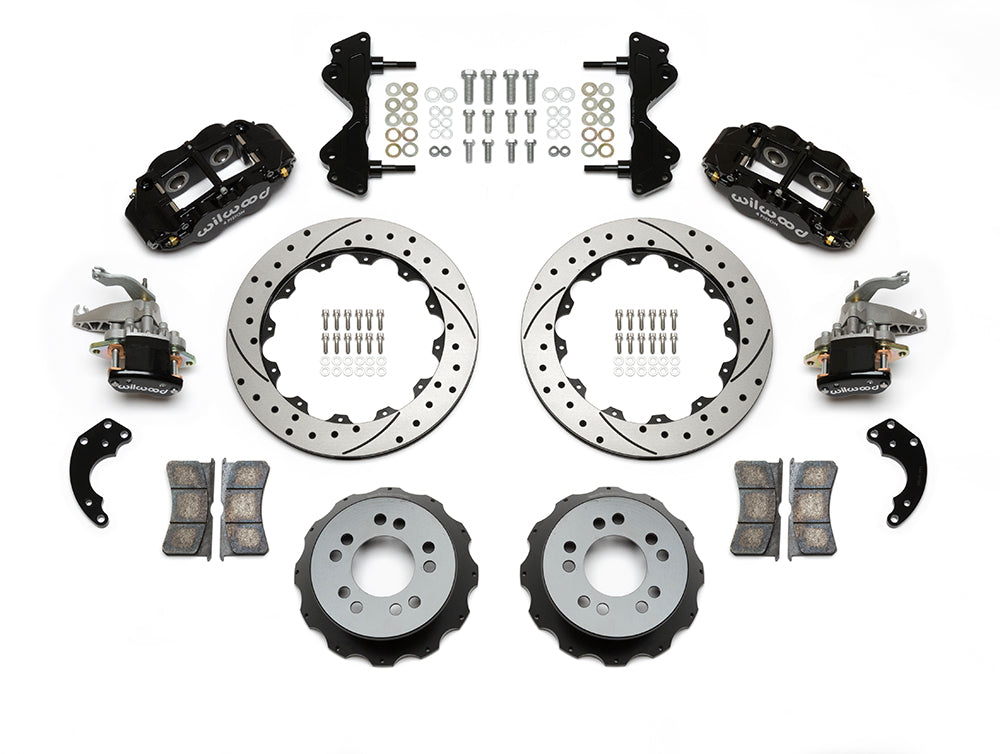

Wilwood black Superlite 4R/MC4 rear kit for Currie Pro-Tour unit-bearing axles, with 12.88-inch drilled-and-slotted rotors, hats, pads and brackets laid out

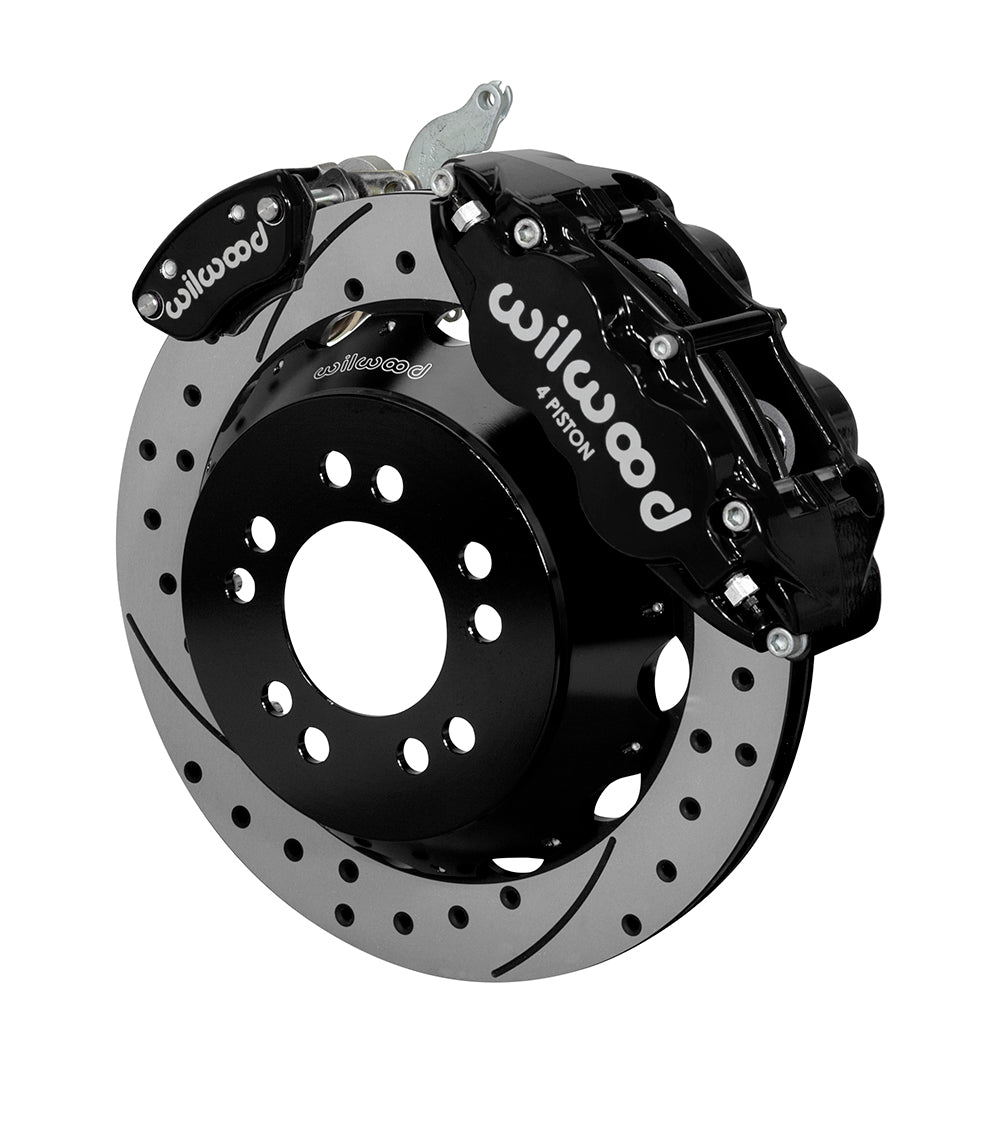

Wilwood black rear Superlite 4R service caliper and separate MC4 parking caliper around a drilled-and-slotted rotor assembly
Wilwood black Superlite 4R/MC4 rear kit for Currie Pro-Tour unit-bearing axles, with 12.88-inch drilled-and-slotted rotors, hats, pads and brackets laid out
Wilwood black rear Superlite 4R service caliper and separate MC4 parking caliper around a drilled-and-slotted rotor assembly

Wilwood Rear Black Superlite Kit, Drilled 12.88-Inch Rotors for Currie Pro-Tour Unit-Bearing Axles

SKU: 140-14262-D

$2,231.16 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Black four-piston Superlite calipers operate over 12.88-inch drilled-and-slotted rotors in this Currie kit. Mechanical parking action comes from separate MC4 calipers, with hub and axle-end geometry fixed by the Pro-Tour unit-bearing application. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.

Technical Details

  • Manufacturer: Wilwood
  • Manufacturer part number: 140-14262-D
  • Kit classification: Rear Brake Kits - Street Performance
  • Axle position: Rear Kits
  • Brake Type: Disc; Parking
  • Selling unit: Sold as a kit.
  • Minimum wheel guidance (clearance drawing required): 17 in; 431.8 mm
  • Required rear axle / flange: Currie Pro-Tour Unit Bearing
  • Catalog axle-offset reference: 0.00 in; 0 mm
  • Spindle Included: No
  • Mounting Hardware Included: Yes
  • Separate wheel hubs included: No
  • Rotor Outside Diameter: 12.88 in; 327.15 mm
  • Rotor Thickness: 0.81 in; 20.57 mm
  • Rotor Material: Iron
  • Surface Type: SRP Drilled & Slotted
  • Rotor construction: Vented
  • Bolt Circle Diameter: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Catalog stud / mounting-hole reference: 0.560 in; 14.22 mm
  • Rotor surface finish: Black Electro Coat
  • Hat material: Aluminum
  • Hat finish: Black E-Coat
  • Hat offset dimension: 1.750 in
  • Pistons per service caliper: 4
  • Service-caliper piston construction: Stainless
  • Service-caliper mount: Radial
  • Caliper body construction: Forged aluminum
  • Caliper Color: Black
  • Caliper Finish: Black Powder Coat
  • Caliper Inlet Port Diameter: 1/8-27 NPT
  • Caliper family: Superlite 4R
  • Pad compound: BP-10
  • Master Cylinder Included: No
  • Brake Booster Included: No
  • Brake Lines Included: No

Fitment & Compatibility

Select this kit only for the specified Currie Pro-Tour unit-bearing floating rear axle. DS-1180 defines the caliper-bracket, hub-registration and wheel-pattern requirements; no generic vehicle application is implied. The kit supplies service and MC4 parking calipers, while hydraulic flexlines, parking cables and cable adapters are separate. Confirm the 17-inch wheel template and the available cable travel.

Wilwood product specifications · Installation instructions

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
