Wilwood Rear Superlite 4R/MC4 Kit for Currie Pro-Tour Unit-Bearing Axles, Black 12.88-Inch Brakes

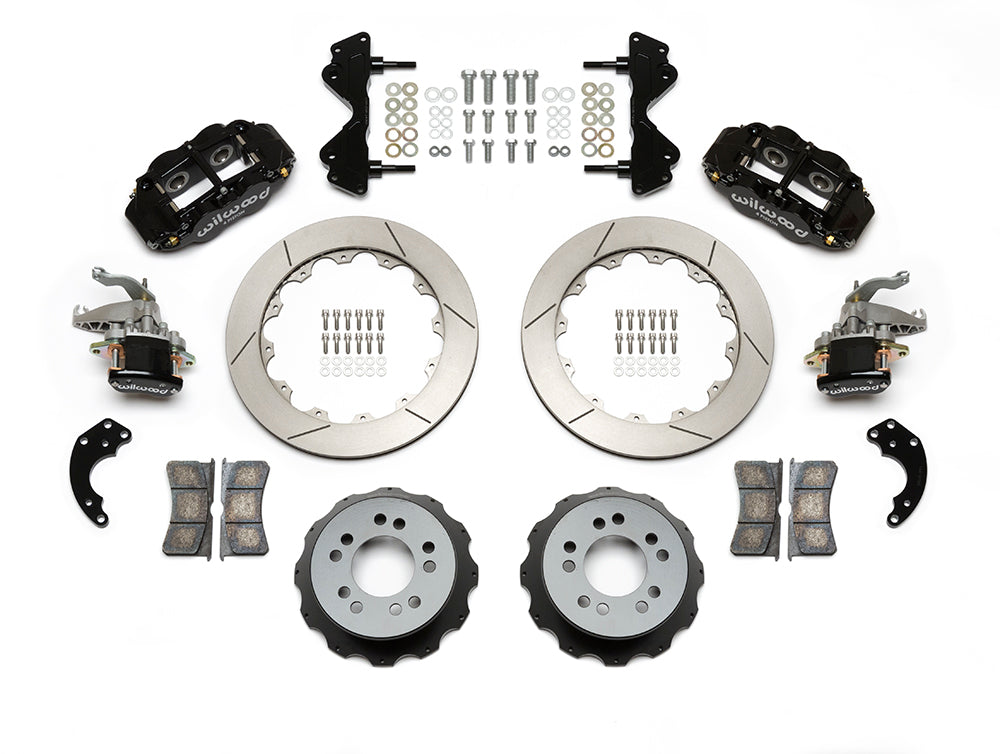

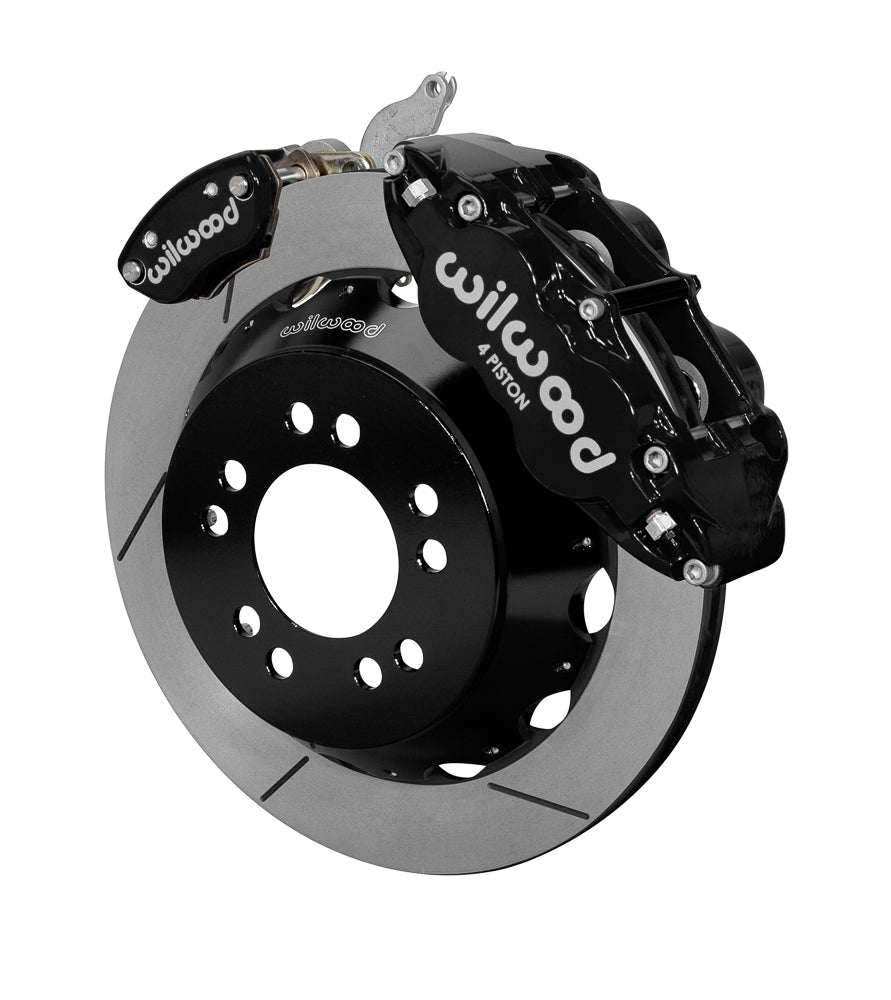

This Currie Pro-Tour rear conversion uses black Superlite 4R service calipers and separate MC4 parking units. The 12.88-inch slotted rotors and hats fit the specified unit-bearing floating axle rather than a generic vehicle rear end. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14262
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc; Parking
• Selling unit: Sold as a kit.
• Pistons per service caliper: 4
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Superlite 4R
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Minimum wheel guidance (clearance drawing required): 17 in; 431.8 mm
• Required rear axle / flange: Currie Pro-Tour Unit Bearing
• Catalog axle-offset reference: 0.00 in; 0 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 12.88 in; 327.15 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Catalog stud / mounting-hole reference: 0.560 in; 14.22 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.750 in

Fitment & Compatibility

Select this kit only for the specified Currie Pro-Tour unit-bearing floating rear axle. DS-1180 defines the caliper-bracket, hub-registration and wheel-pattern requirements; no generic vehicle application is implied. The kit supplies service and MC4 parking calipers, while hydraulic flexlines, parking cables and cable adapters are separate. Confirm the 17-inch wheel template and the available cable travel.
