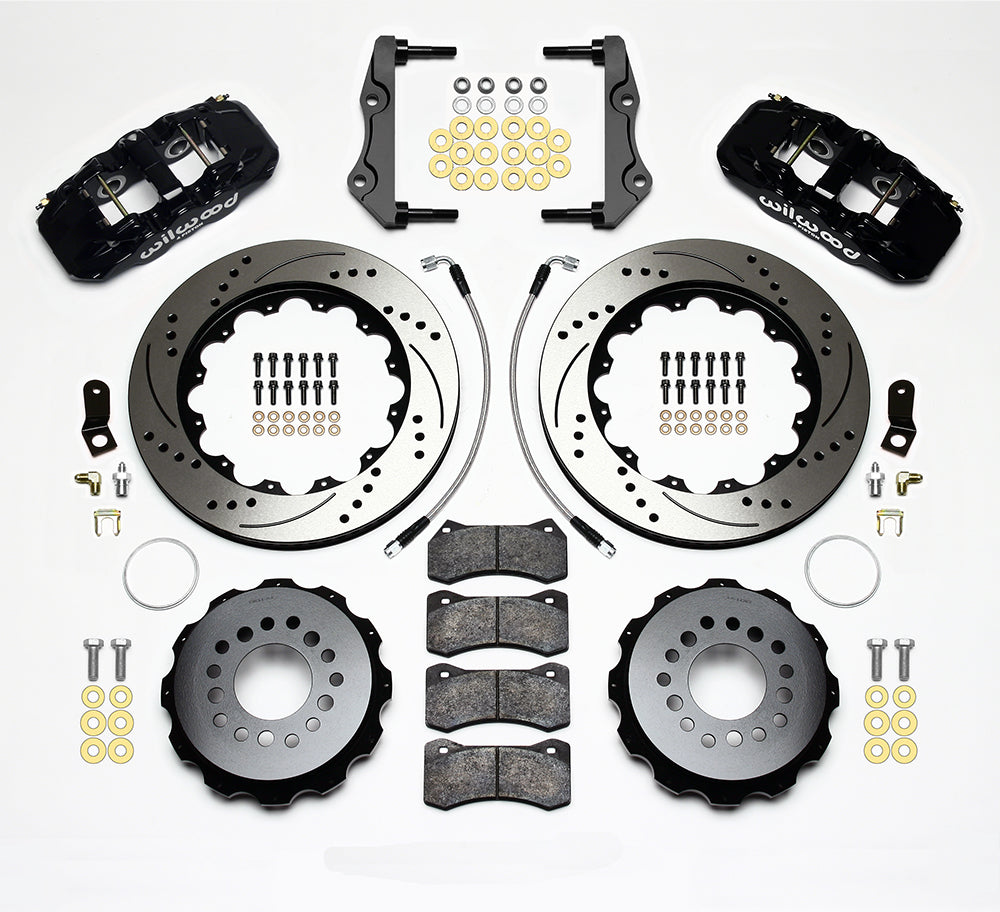

Wilwood black AERO4 kit laid out with drilled-and-slotted rotor rings, separate hats, brake pads, brackets, braided hoses and hardware

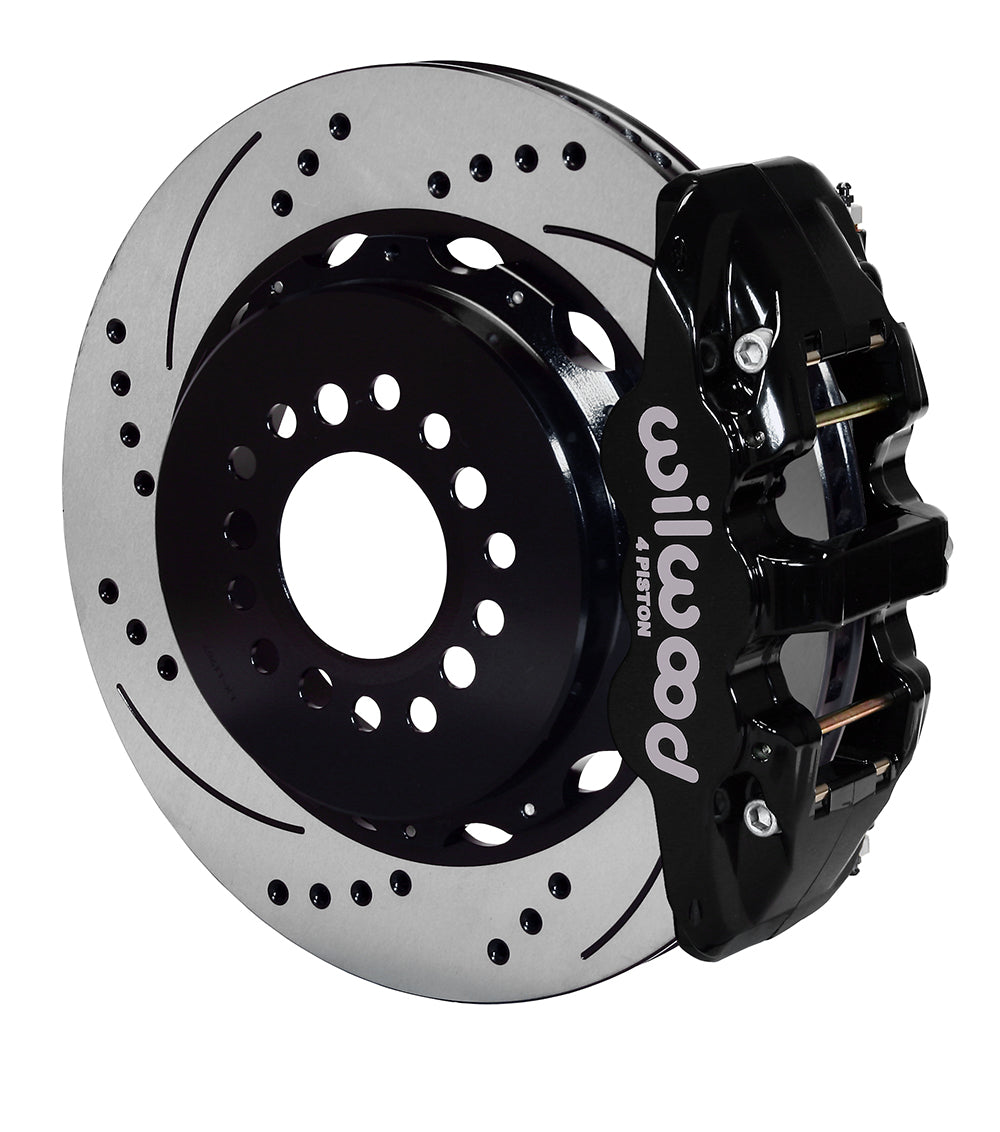

Wilwood black AERO4 caliper over an assembled 14.25-inch drilled-and-slotted rotor and separate mounting hat
Wilwood black AERO4 kit laid out with drilled-and-slotted rotor rings, separate hats, brake pads, brackets, braided hoses and hardware
Wilwood black AERO4 caliper over an assembled 14.25-inch drilled-and-slotted rotor and separate mounting hat

Wilwood Rear Black AERO4 Brake Conversion for Qualified Chrysler/Dodge, 14.25-Inch Drilled Rotors — Selected 2012–2023 Applications

SKU: 140-14068-D

$2,671.63 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Black four-piston AERO4 rear calipers work with 14.25-inch drilled-and-slotted rotors in this package. Factory parking-brake parts are retained only on the correct standard-brake axle; excluded brake and drivetrain packages remain excluded. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.

Technical Details

  • Manufacturer: Wilwood
  • Manufacturer part number: 140-14068-D
  • Kit classification: Rear Brake Kits - Street Performance
  • Axle position: Rear Kits
  • Brake Type: Disc; Parking
  • Selling unit: Sold as a kit.
  • Pistons per service caliper: 4
  • Service-caliper piston construction: Stainless
  • Service-caliper mount: Radial
  • Caliper body construction: Forged aluminum
  • Caliper Color: Black
  • Caliper Finish: Black Powder Coat
  • Caliper Inlet Port Diameter: 1/8-27 NPT
  • Caliper family: AERO4
  • Pad compound: BP-10
  • Rotor Outside Diameter: 14.25 in; 361.95 mm
  • Rotor Thickness: 1.10 in; 27.94 mm
  • Rotor Material: Spec-37 Iron
  • Surface Type: SRP Drilled & Slotted
  • Rotor construction: Vented
  • Bolt Circle Diameter: 5 x 4.53 in; 5 x 115.06 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
  • Catalog stud / mounting-hole reference: 0.610 in; 15.49 mm; 0.520 in; 13.21 mm
  • Rotor surface finish: Black Electro Coat
  • Hat material: Aluminum
  • Hat finish: Black E-Coat
  • Hat offset dimension: 1.340 in
  • Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
  • Required rear axle / flange: OEM
  • Catalog axle-offset reference: 0.00 in; 0 mm
  • Spindle Included: No
  • Mounting Hardware Included: Yes
  • Separate wheel hubs included: No
  • Master Cylinder Included: No
  • Brake Booster Included: No
  • Brake Lines Included: Yes

Fitment & Compatibility

This rear kit retains the matching OE parking brake on qualifying standard-brake RWD Chrysler 300, Dodge Charger and Challenger applications. Wilwood excludes AWD, SRT-8, Police/heavy-duty equipment and factory Brembo calipers even though some vehicle rows mention Pursuit/Police; resolve that overlap before selecting those applications. DS-1099 includes rear flexlines 220-14073. Check hat registration, parking shoes and the wheel template together.

Listed models: 300; Challenger; Charger. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

PMB Performance brings over 20 years of experience to brake-component selection. Provide the actual hardware specification when the brake system has been modified.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
2012-2014 Chrysler 300 RWD 3.6 Liter Disc Disc Rear Kit 1, 2, 3
2012-2014 Chrysler 300 RWD 5.7 Liter Disc Disc Rear Kit 1, 2, 3
2012-2022 Dodge Challenger R/T R/T Disc Disc Rear Kit 1, 2, 3
2012 Dodge Challenger R/T Classic R/T Classic Disc Disc Rear Kit 1, 2, 3
2012-2018 Dodge Challenger SXT SXT Disc Disc Rear Kit 1, 2, 3
2012, 2015-2018 Dodge Challenger SXT Plus SXT Plus Disc Disc Rear Kit 1, 2, 3
2012-2013 Dodge Charger Pursuit Pursuit Disc Disc Rear Kit 1, 2, 3
2012-2014 Dodge Charger R/T R/T (RWD) Disc Disc Rear Kit 1, 2, 3
2012 Dodge Charger SE SE (3.6L) Disc Disc Rear Kit 1, 2, 3
2012-2013 Dodge Charger SE SE (5.7L) Disc Disc Rear Kit 1, 2, 3
2012-2017, 2019-2023 Dodge Charger SXT SXT (RWD) Disc Disc Rear Kit 1, 2, 3
2012-2014 Dodge Charger SXT Plus SXT Plus (RWD) Disc Disc Rear Kit 1, 2, 3
2013 Dodge Charger SE SE (3.6L RWD) Disc Disc Rear Kit 1, 2, 3
2014 Dodge Challenger Rallye Redline Rallye Redline Disc Disc Rear Kit 1, 2, 3
2014 Dodge Charger Pursuit Pursuit (RWD except Perf Brakes) Disc Disc Rear Kit 1, 2, 3
2014 Dodge Charger Pursuit Pursuit (RWD Perf Brakes) Disc Disc Rear Kit 1, 2, 3
2014-2017 Dodge Charger SE SE (RWD) Disc Disc Rear Kit 1, 2, 3
2015-2022 Chrysler 300 RWD Disc Disc Rear Kit 1, 2, 3
2015-2016 Dodge Challenger R/T Plus R/T Plus Disc Disc Rear Kit 1, 2, 3
2015-2018, 2020, 2022-2023 Dodge Charger R/T R/T Disc Disc Rear Kit 1, 2, 3
2015-2016 Dodge Charger R/T Road & Track R/T Road & Track Disc Disc Rear Kit 1, 2, 3
2016 Dodge Challenger R/T Plus Shaker R/T Plus Shaker Disc Disc Rear Kit 1, 2, 3
2016 Dodge Challenger R/T Shaker R/T Shaker Disc Disc Rear Kit 1, 2, 3
2017-2018 Dodge Challenger T/A T/A Disc Disc Rear Kit 1, 2, 3
2017-2018 Dodge Charger Daytona Daytona Disc Disc Rear Kit 1, 2, 3
2018-2019 Dodge Charger GT GT Disc Disc Rear Kit 1, 2, 3
2018 Dodge Charger GT Plus GT Plus Disc Disc Rear Kit 1, 2, 3
2018 Dodge Charger SXT SXT Disc Disc Rear Kit 1, 2, 3
2018 Dodge Charger SXT Plus SXT Plus Disc Disc Rear Kit 1, 2, 3
2018 Dodge Charger SXT Plus Leather SXT Plus Leather Disc Disc Rear Kit 1, 2, 3
2019-2022 Dodge Challenger GT GT (RWD) Disc Disc Rear Kit 1, 2, 3
2019-2022 Dodge Challenger SXT SXT (RWD Disc Disc Rear Kit 1, 2, 3
2020-2023 Dodge Charger GT GT (RWD) Disc Disc Rear Kit 1, 2, 3
