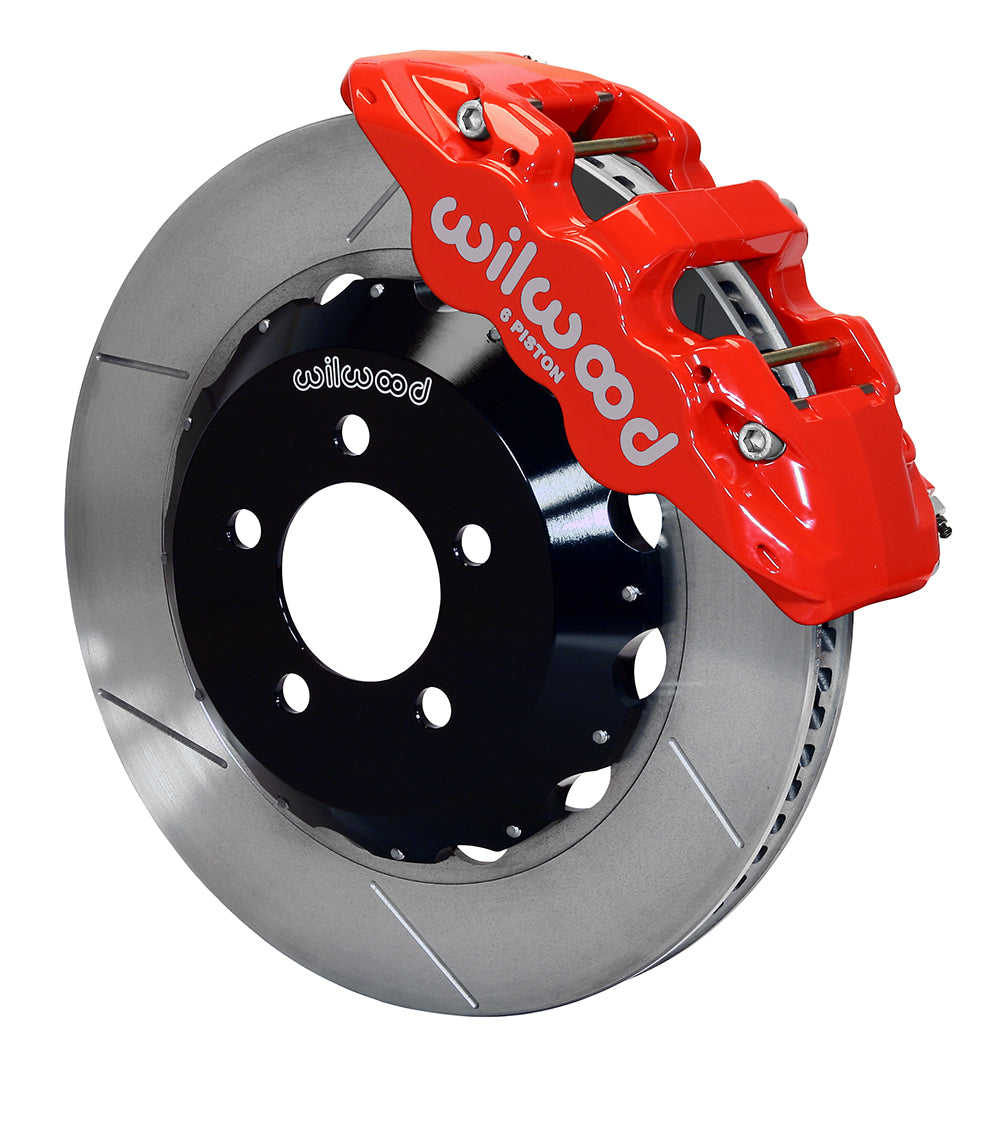

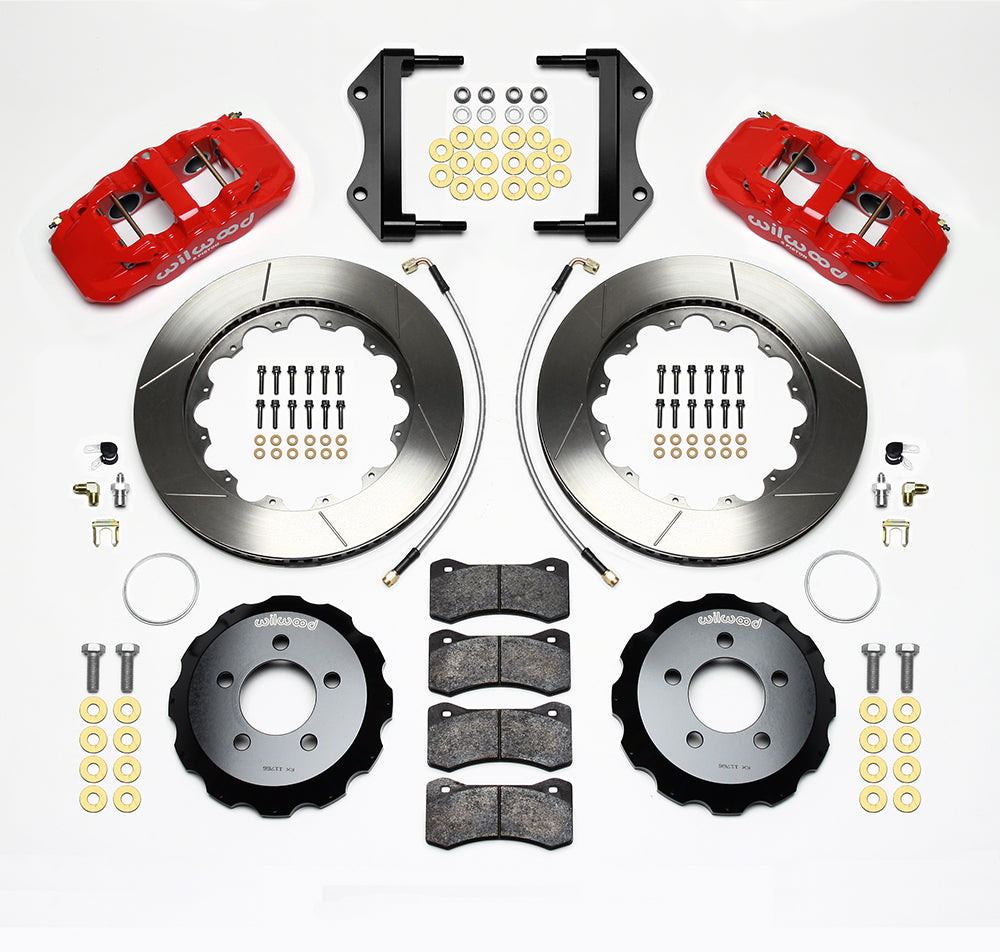

Wilwood Front Slotted 14.25-Inch Brake Package, Red AERO6 for Listed Chrysler 300/Dodge Charger/Dodge Challenger — Selected 2012–2023 Applications

Red AERO6 calipers and 14.25-inch GT-slotted rotors replace the specified front service brakes. The manufacturer limits this package to qualifying standard-brake Chrysler and Dodge vehicles, so model and year alone are insufficient. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14067-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-20
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 14.25 in; 361.95 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 X 4.53 in; 5 X 115.06 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Plain
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.200 in

Fitment & Compatibility

Manufacturer notes and DS-1098 exclude AWD, SRT-8, Police/heavy-duty brakes and factory Brembo calipers. Some vehicle rows nevertheless name Pursuit/Police variants: those entries do not override the exclusions and require clarification with Wilwood. Confirm a qualifying standard-brake RWD Chrysler 300, Dodge Charger or Challenger configuration, not merely model/year. Included front hoses are 220-11771; verify hub registration and wheel clearance.

Listed models: 300; Challenger; Charger. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

Our team at PMB Performance has over 20 years of parts and fitment experience. The existing component number and brake-system details help us check the match.
