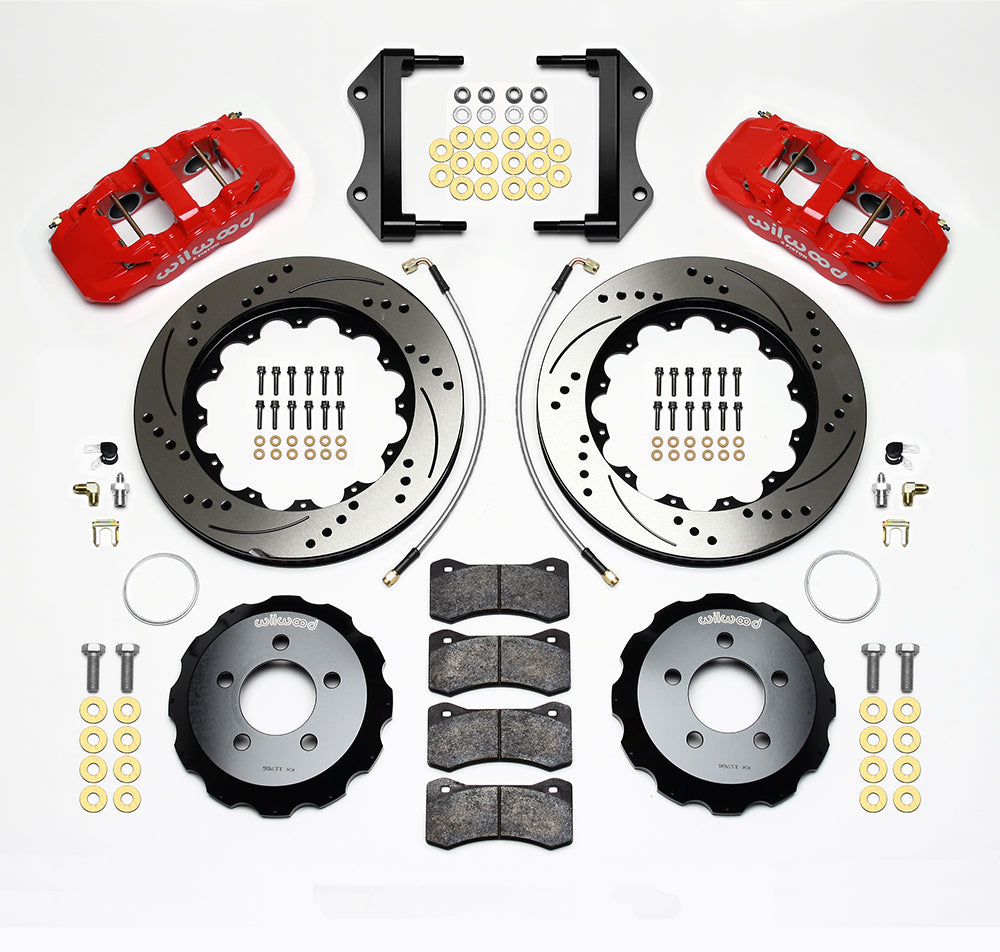

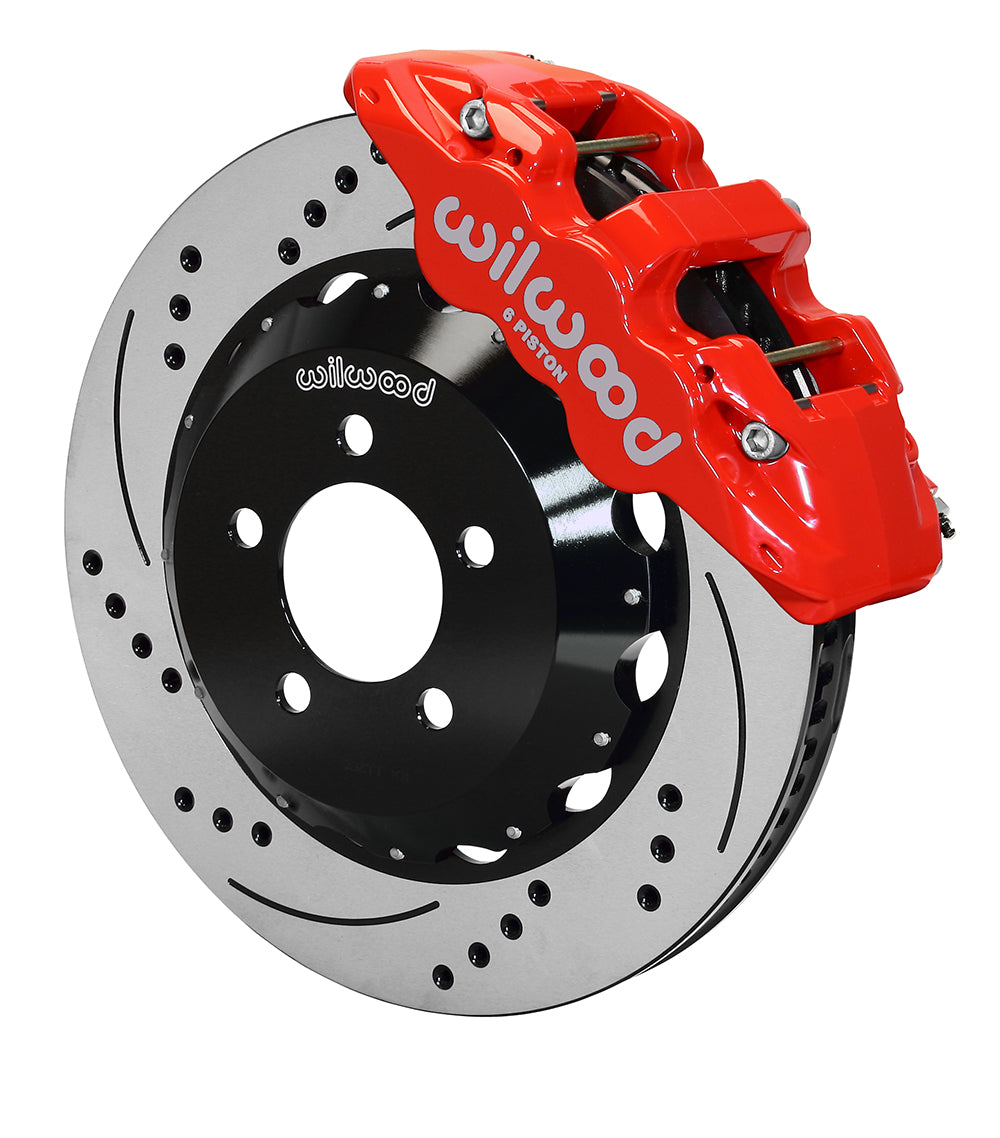

Wilwood Front Red AERO6 Brake Kit, 14.25-Inch Drilled Rotors for Qualified Chrysler 300 and Dodge Models — Selected 2012–2023 Applications

The red AERO6 front kit is intended for the qualifying rear-wheel-drive Chrysler and Dodge brake configurations. Its drilled-and-slotted rotor package does not establish compatibility with AWD, Police, SRT-8 or factory Brembo equipment. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14067-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 14.25 in; 361.95 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 X 4.53 in; 5 X 115.06 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.200 in
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-10

Fitment & Compatibility

Manufacturer notes and DS-1098 exclude AWD, SRT-8, Police/heavy-duty brakes and factory Brembo calipers. Some vehicle rows nevertheless name Pursuit/Police variants: those entries do not override the exclusions and require clarification with Wilwood. Confirm a qualifying standard-brake RWD Chrysler 300, Dodge Charger or Challenger configuration, not merely model/year. Included front hoses are 220-11771; verify hub registration and wheel clearance.

Listed models: 300; Challenger; Charger. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
