Wilwood Front Black Six-Piston Conversion for Chrysler 300/Dodge Charger/Dodge Challenger, 14.25-Inch Drilled Rotors — Selected 2012–2023 Applications

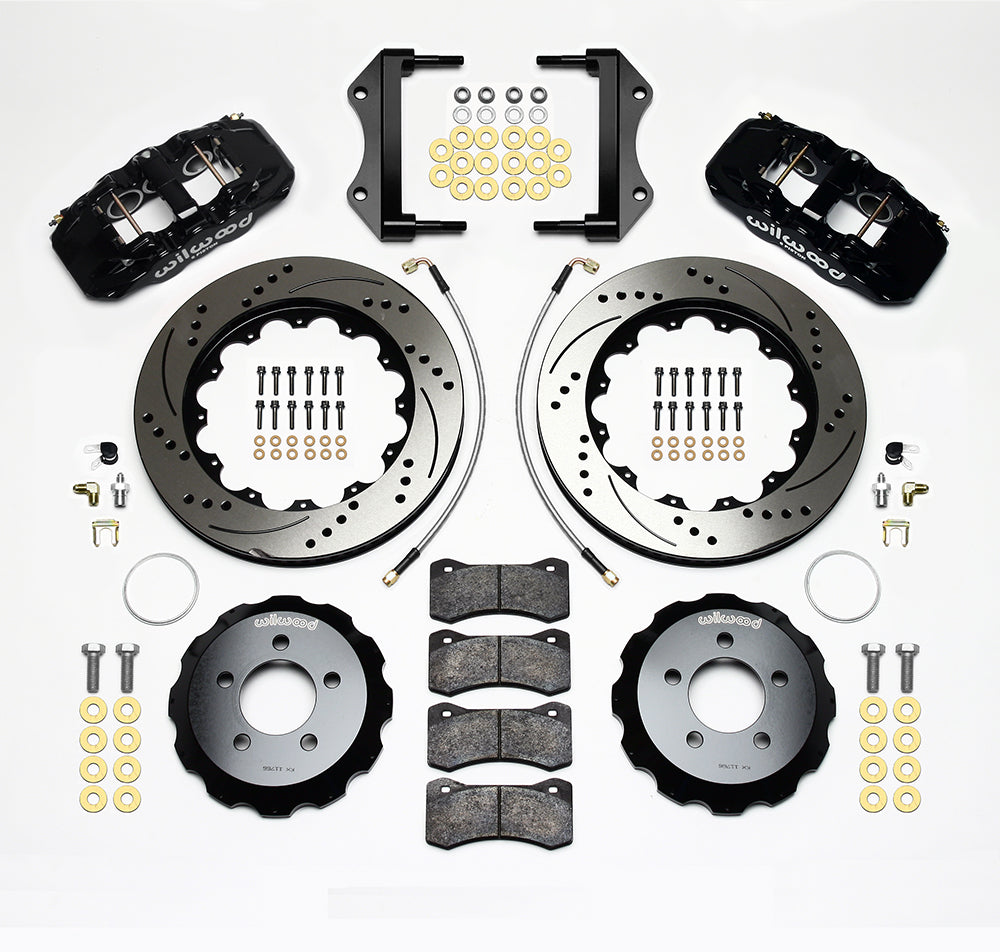

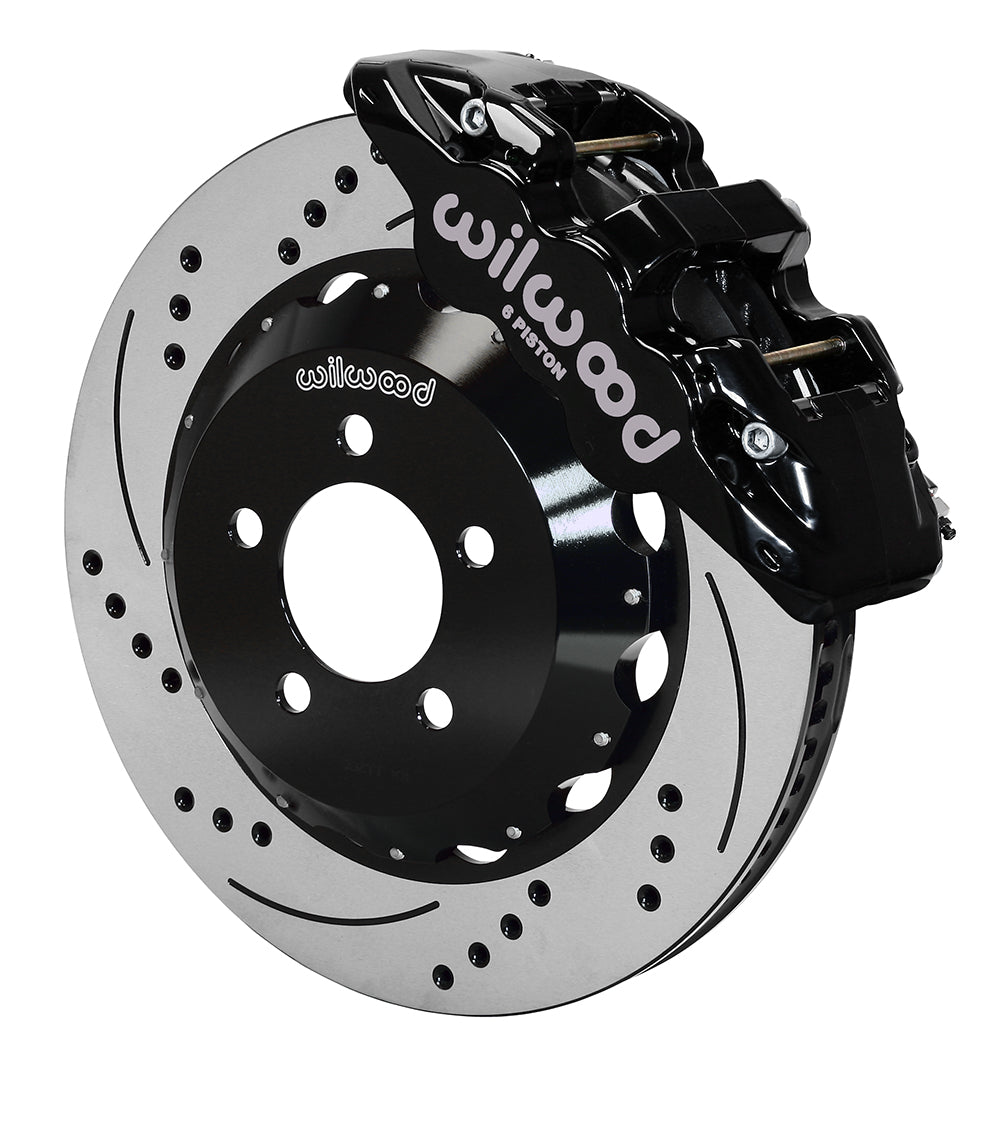

Drilled-and-slotted front rotors measuring 14.25 inches accompany black six-piston AERO6 calipers. This Chrysler/Dodge package requires the specified standard brake arrangement, with explicit exclusions overriding the broad vehicle headings. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14067-D
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Rotor Outside Diameter: 14.25 in; 361.95 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 X 4.53 in; 5 X 115.06 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.200 in
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-10
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No

Fitment & Compatibility

Manufacturer notes and DS-1098 exclude AWD, SRT-8, Police/heavy-duty brakes and factory Brembo calipers. Some vehicle rows nevertheless name Pursuit/Police variants: those entries do not override the exclusions and require clarification with Wilwood. Confirm a qualifying standard-brake RWD Chrysler 300, Dodge Charger or Challenger configuration, not merely model/year. Included front hoses are 220-11771; verify hub registration and wheel clearance.

Listed models: 300; Challenger; Charger. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions
