Wilwood Front AERO6 Kit for Listed Chrysler 300, Dodge Charger and Challenger, Black 14.25-Inch Brakes — Selected 2012–2023 Applications

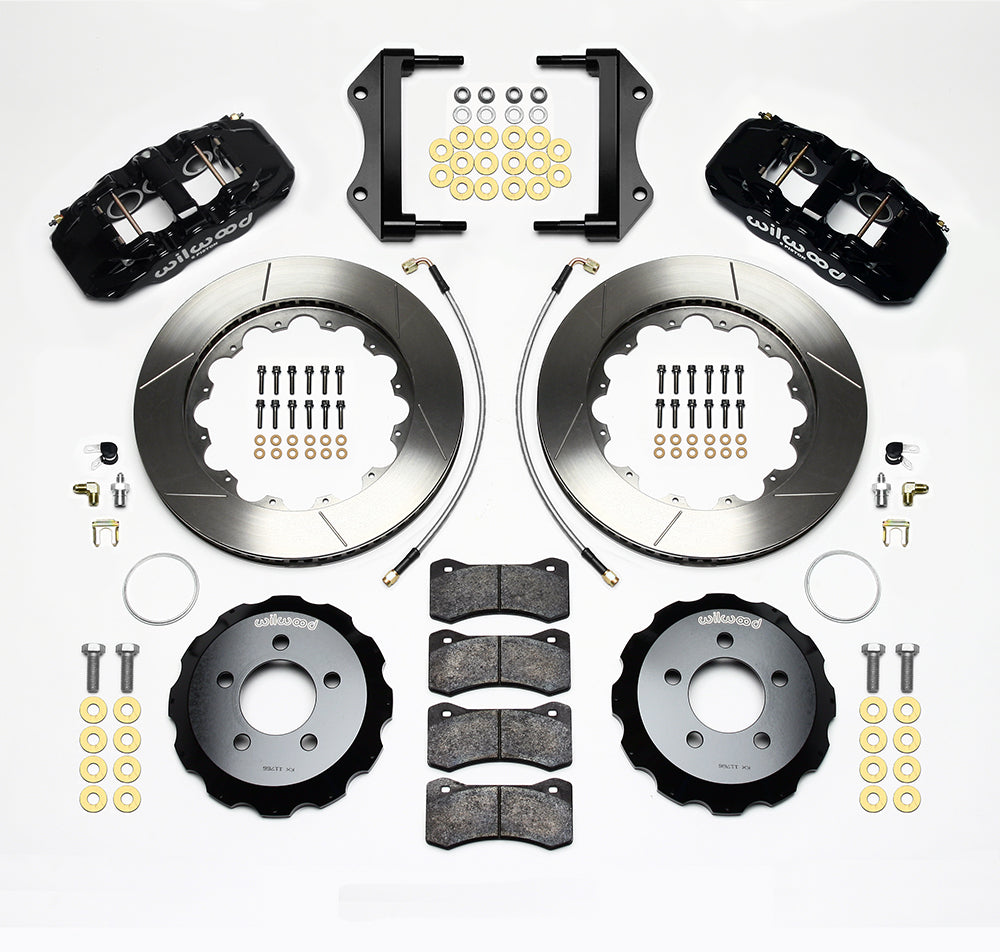

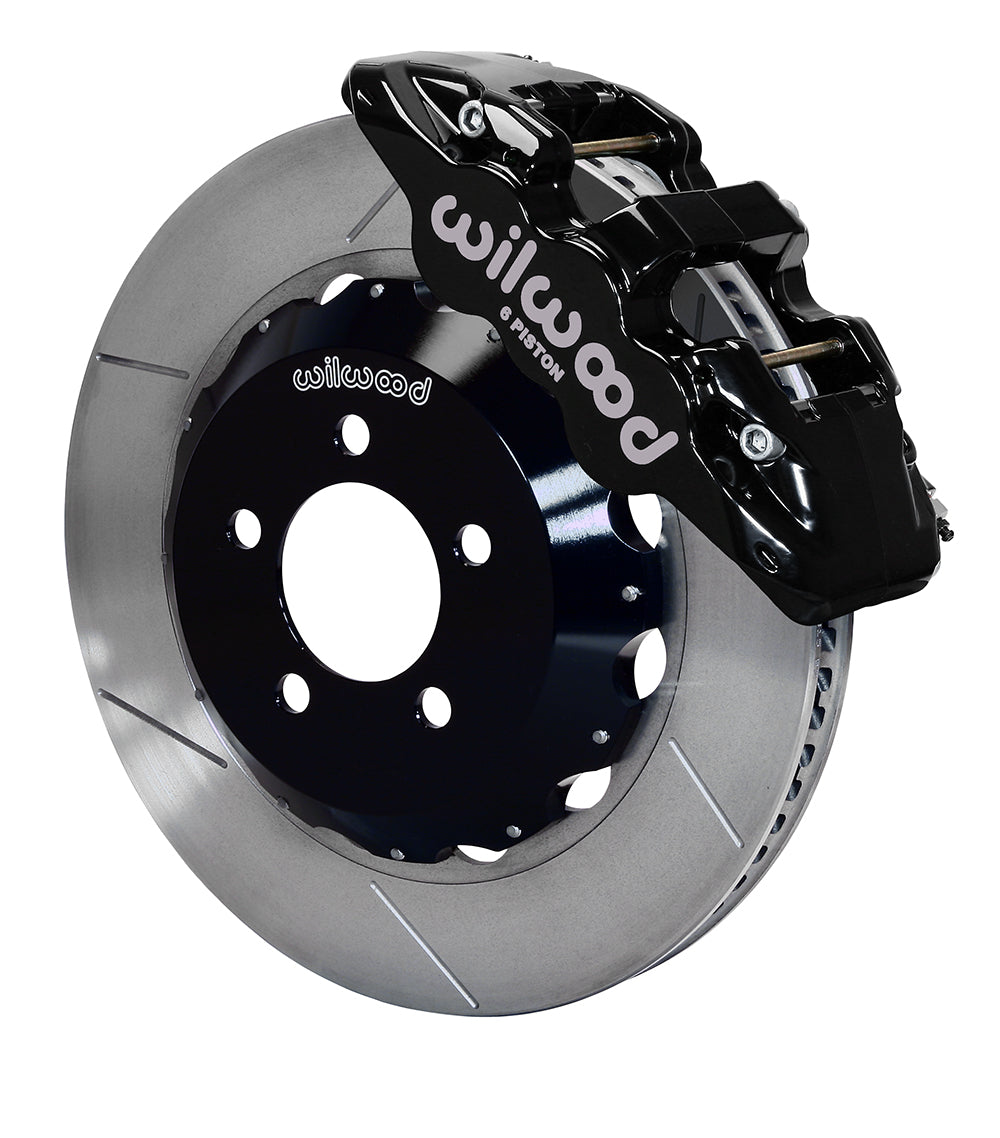

This black AERO6 front conversion supplies 14.25-inch slotted rotors for the specified non-Brembo Chrysler and Dodge applications. Manufacturer exclusions for AWD, SRT-8, Police and heavy-duty brake configurations must be applied before using any vehicle-table entry. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14067
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-20
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Rotor Outside Diameter: 14.25 in; 361.95 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 X 4.53 in; 5 X 115.06 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Plain
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.200 in

Fitment & Compatibility

Manufacturer notes and DS-1098 exclude AWD, SRT-8, Police/heavy-duty brakes and factory Brembo calipers. Some vehicle rows nevertheless name Pursuit/Police variants: those entries do not override the exclusions and require clarification with Wilwood. Confirm a qualifying standard-brake RWD Chrysler 300, Dodge Charger or Challenger configuration, not merely model/year. Included front hoses are 220-11771; verify hub registration and wheel clearance.

Listed models: 300; Challenger; Charger. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions
