Wilwood Rear Slotted Brake Conversion, Red Superlite 4R with 14-Inch Rotors for Jeep Wrangler JK — Selected 2007–2018 Applications

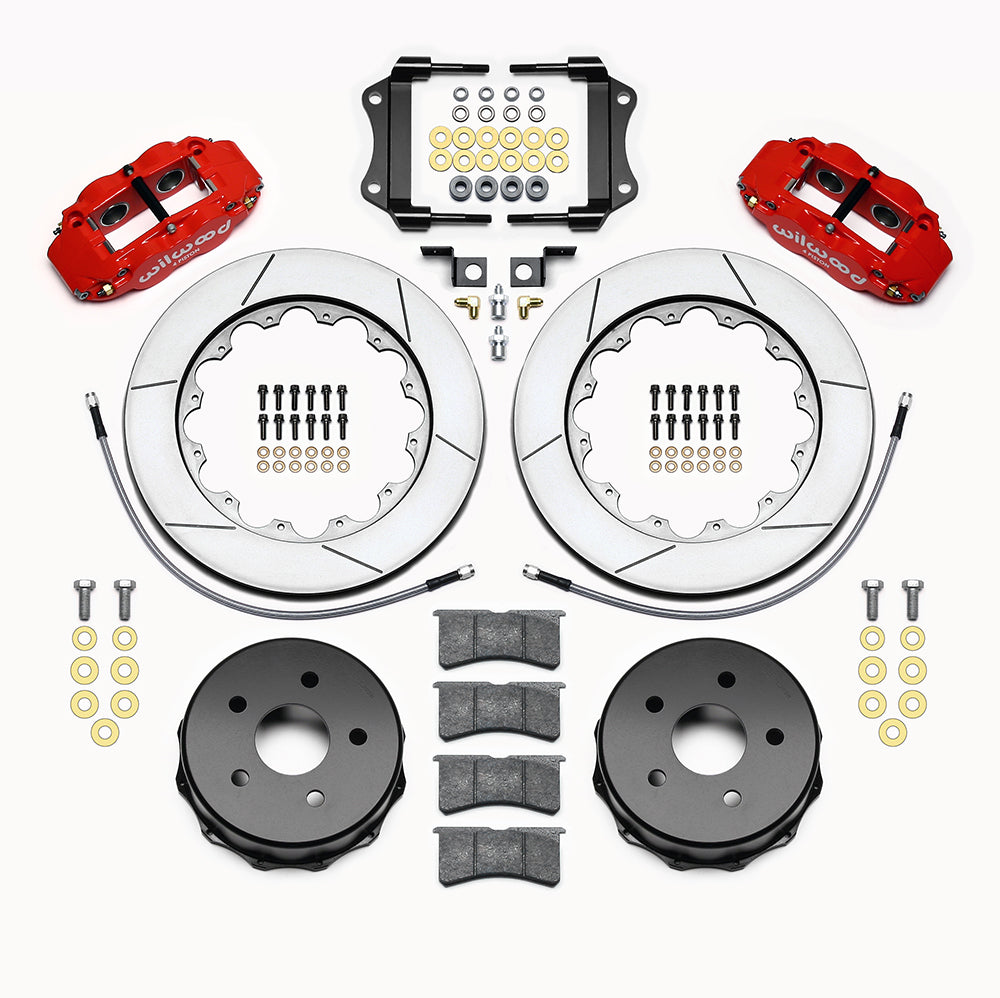

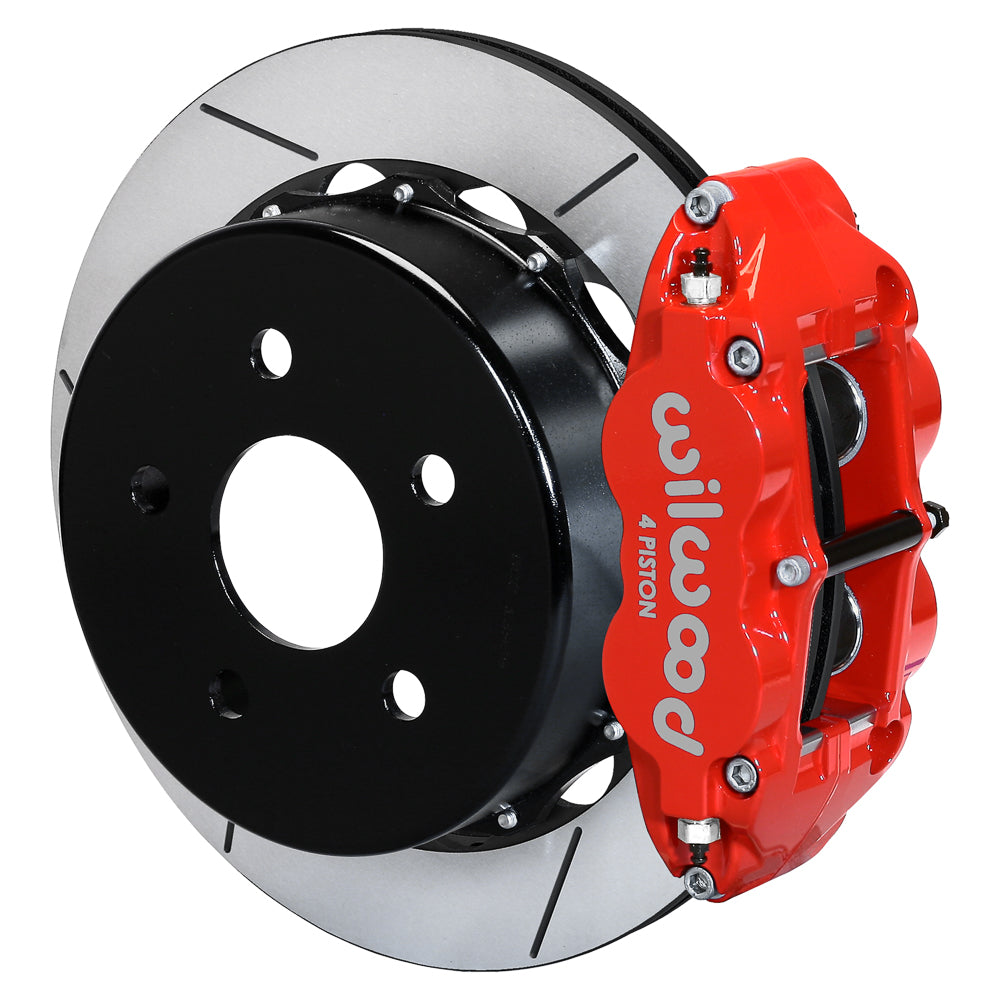

Red Superlite 4R calipers clamp the 14-inch GT-slotted rotors supplied in this rear Wrangler JK kit. The original hub and parking-brake assembly remain central to fitment, with braided rear hoses included for the specified setup. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14066-R
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc; Parking
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 5 in; 5 x 127 mm
• Catalog stud / mounting-hole reference: 0.660 in; 16.76 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Iron
• Hat finish: Black E-Coat
• Hat offset dimension: 2.200 in
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Required rear axle / flange: OEM
• Catalog axle-offset reference: 0.00 in; 0 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Pistons per service caliper: 4
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Superlite 4R
• Pad compound: BP-20

Fitment & Compatibility

Use only the specified Jeep JK rear hub and matching original parking-brake hardware, including the separate 2018 Wrangler JK application rather than JL. The 14-inch rotor package requires more wheel space than the 12.88-inch version. DS-1097 includes rear flexlines 220-13968 and mounting brackets; inspect routing, hub registration and the parking-shoe adjustment during installation.

Listed models: Wrangler; Wrangler JK. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
