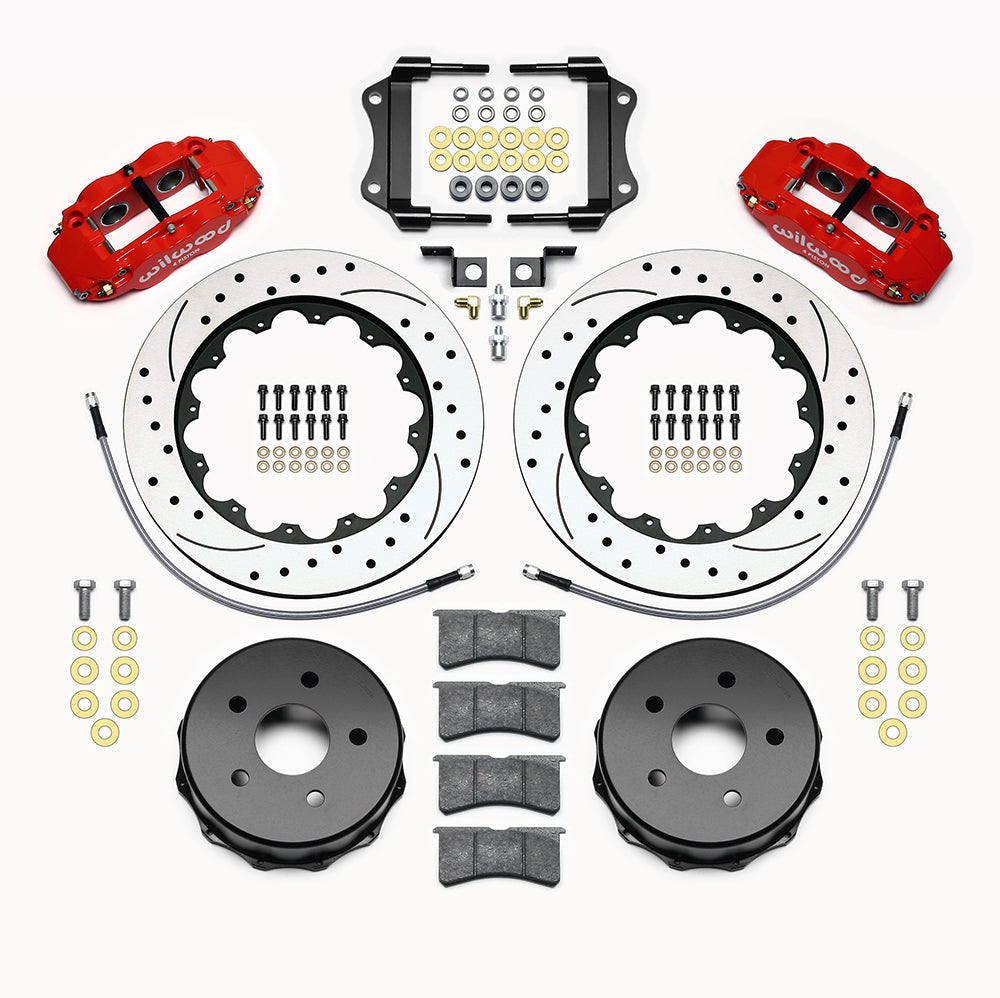

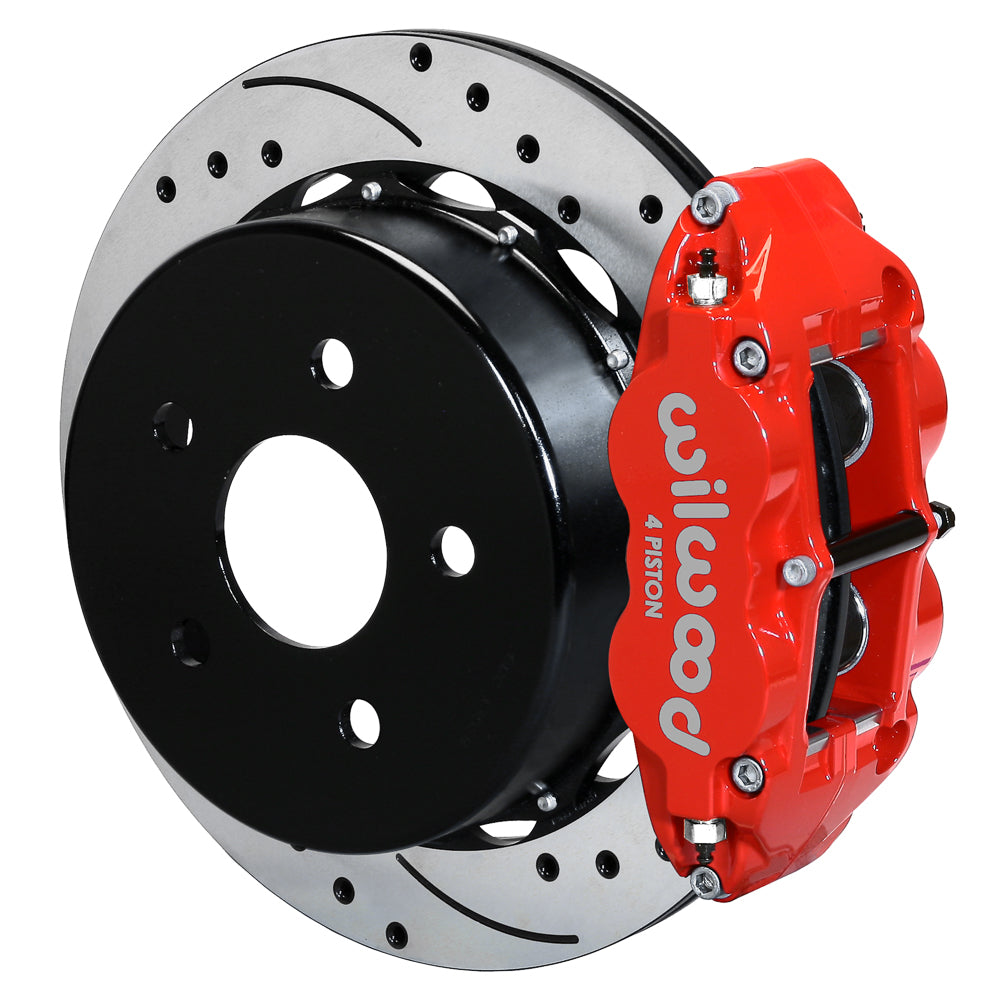

Wilwood Rear 14-Inch Drilled-Rotor Conversion for Jeep JK, Red Superlite Service Calipers — Selected 2007–2018 Applications

This Jeep JK rear package combines red Superlite calipers with 14-inch drilled-and-slotted rotors. The service-brake conversion is designed to work around the matching factory parking-brake hardware without adding an MC4 caliper. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14066-DR
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc; Parking
• Selling unit: Sold as a kit.
• Pistons per service caliper: 4
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Superlite 4R
• Pad compound: BP-20
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 5 in; 5 x 127 mm
• Catalog stud / mounting-hole reference: 0.660 in; 16.76 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Iron
• Hat finish: Black E-Coat
• Hat offset dimension: 2.200 in
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Required rear axle / flange: OEM
• Catalog axle-offset reference: 0.00 in; 0 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes

Fitment & Compatibility

Use only the specified Jeep JK rear hub and matching original parking-brake hardware, including the separate 2018 Wrangler JK application rather than JL. The 14-inch rotor package requires more wheel space than the 12.88-inch version. DS-1097 includes rear flexlines 220-13968 and mounting brackets; inspect routing, hub registration and the parking-shoe adjustment during installation.

Listed models: Wrangler; Wrangler JK. Use the fitment table below for the individual years, submodels and equipment conditions.
