Product details

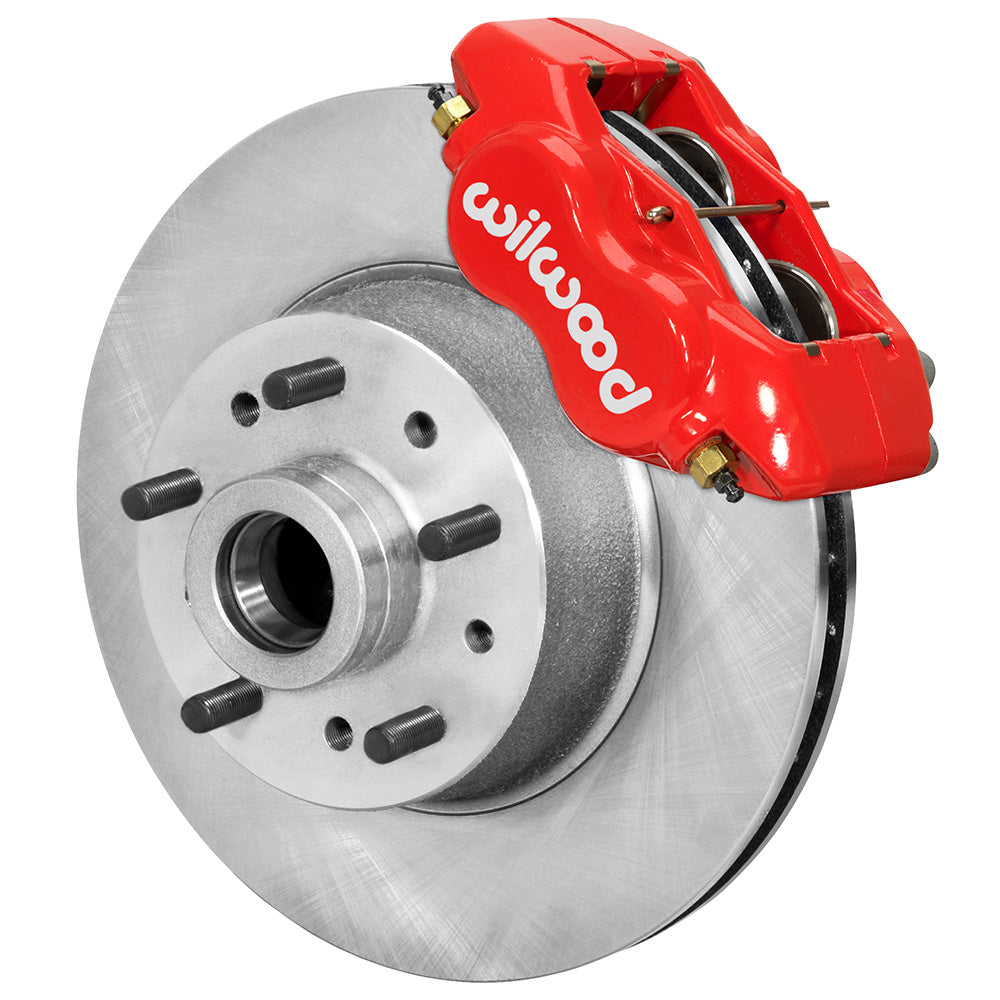

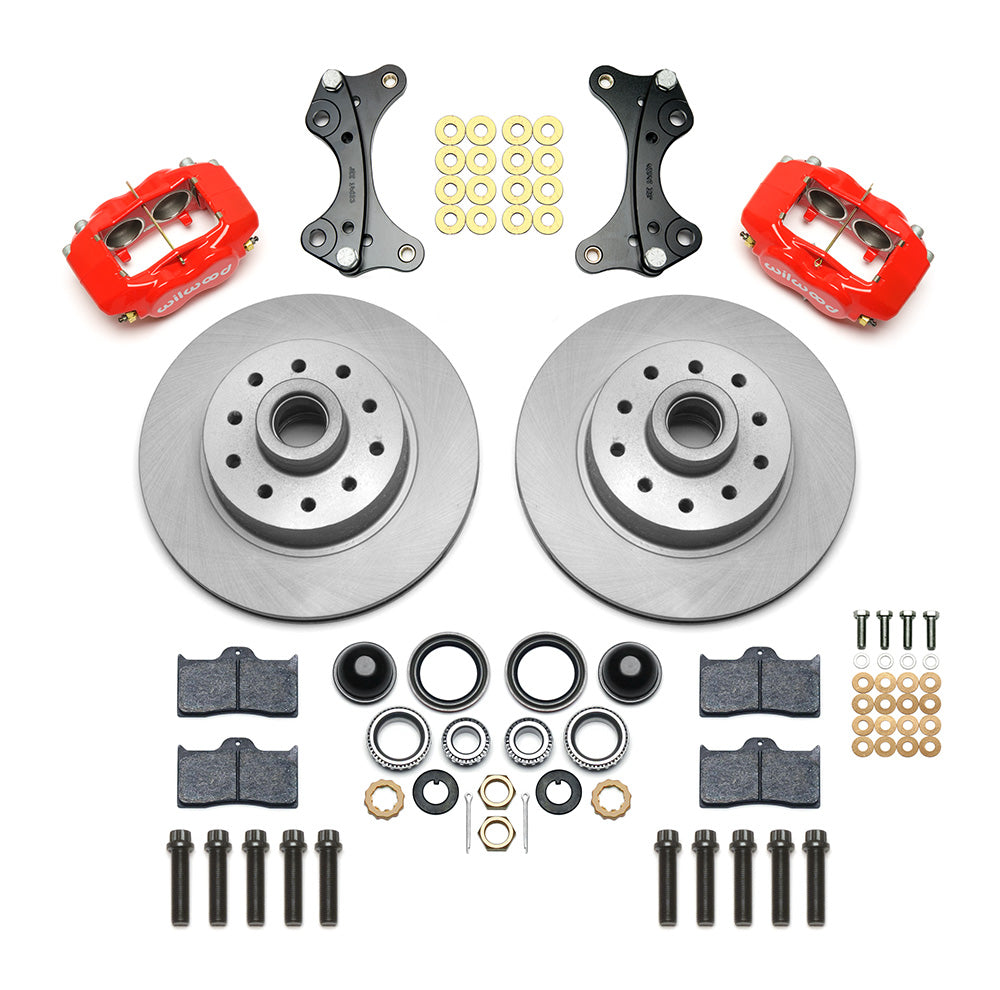

The red Dynalite version includes plain-face 11.03-inch rotors with integral wheel hubs. Its spindle-specific bearings, brackets and hub pattern must be checked against the installed Wilwood Pro Spindle before selecting hydraulic hoses. Wilwood Engineering is a Camarillo, California manufacturer founded by Bill Wood in 1977. Disc brake design and manufacturing extend across calipers, brake rotors, master cylinders, valves, fittings and brake lines. Parts for street-performance, specialized applications and motorsport must be selected to meet the requirements of the complete brake system.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-14065-R
- Kit classification: Front Brake Kits - Street Performance
- Axle position: Front Kits
- Brake Type: Disc
- Selling unit: Sold as a kit.
- Rotor Outside Diameter: 11.03 in; 280.16 mm
- Rotor Thickness: 0.88 in; 22.35 mm
- Rotor Material: Iron
- Surface Type: Plain Face
- Rotor construction: Vented
- Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Catalog stud / mounting-hole reference: 0.50 in; 12.70 mm
- Rotor surface finish: Plain
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: No
- Minimum wheel guidance (clearance drawing required): 15 in; 381 mm
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: Integral hub-and-rotor assemblies included; no separate bolt-on hub
- Pistons per service caliper: 4
- Service-caliper piston construction: Stainless
- Service-caliper mount: Lug
- Caliper body construction: Forged aluminum
- Caliper Color: Red
- Caliper Finish: Red Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: Dynalite
- Pad compound: BP-10
Fitment & Compatibility
Select by the installed Wilwood Pro Spindle and its bearing dimensions; no original vehicle or universal-spindle fitment is established. The one-piece iron hub-and-rotor assemblies are included even though no separate hub is listed. Choose the appropriate 5 x 4.50 or 5 x 4.75-inch stud pattern and separately supplied brake hoses. Confirm the actual 15-inch-or-larger wheel against the installation drawing.
