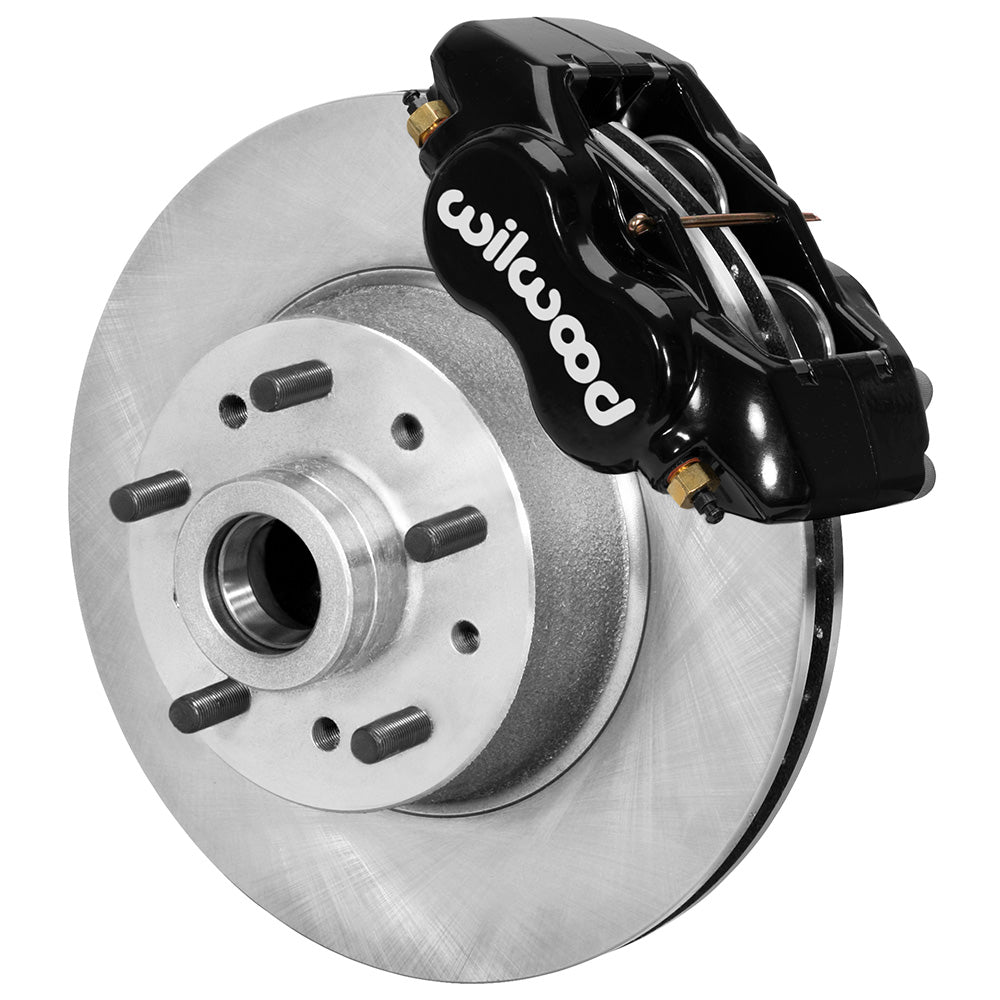

Wilwood Front Classic Dynalite Kit for Wilwood Pro Spindles, Black Calipers and 11.03-Inch Hub/Rotors

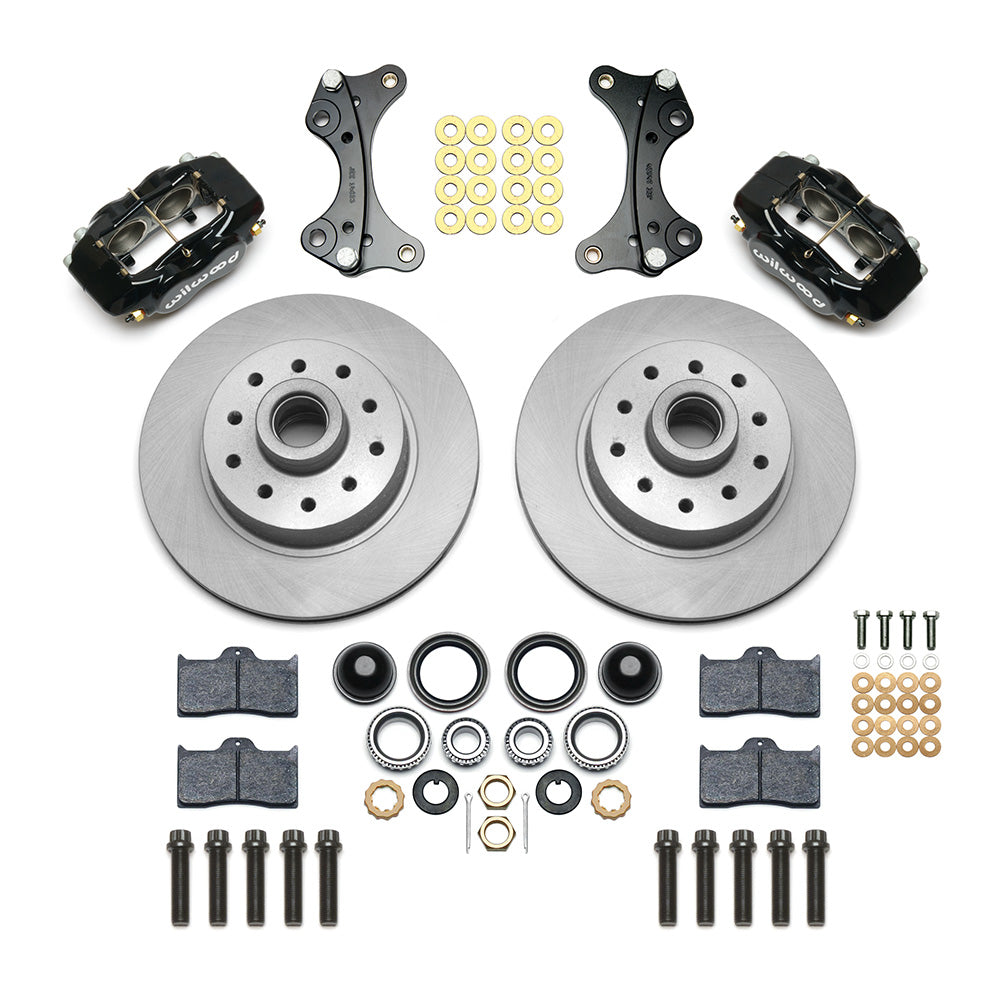

This Classic Dynalite conversion is configured for Wilwood Pro Spindles rather than an assumed original vehicle spindle. Black four-piston calipers work with 11.03-inch one-piece hub-and-rotor assemblies, bearings and mounting hardware. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14065
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Rotor Outside Diameter: 11.03 in; 280.16 mm
• Rotor Thickness: 0.88 in; 22.35 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Catalog stud / mounting-hole reference: 0.50 in; 12.70 mm
• Rotor surface finish: Plain
• Pistons per service caliper: 4
• Service-caliper piston construction: Stainless
• Service-caliper mount: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynalite
• Pad compound: BP-10
• Minimum wheel guidance (clearance drawing required): 15 in; 381 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Integral hub-and-rotor assemblies included; no separate bolt-on hub

Fitment & Compatibility

Select by the installed Wilwood Pro Spindle and its bearing dimensions; no original vehicle or universal-spindle fitment is established. The one-piece iron hub-and-rotor assemblies are included even though no separate hub is listed. Choose the appropriate 5 x 4.50 or 5 x 4.75-inch stud pattern and separately supplied brake hoses. Confirm the actual 15-inch-or-larger wheel against the installation drawing.
