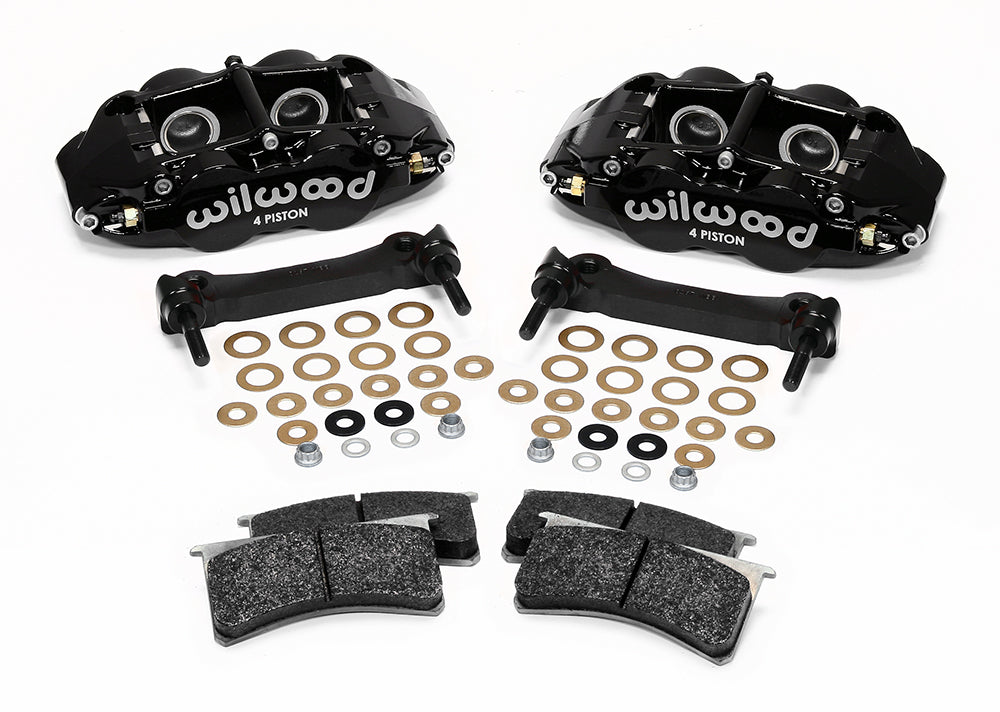

Wilwood black rear Superlite caliper kit laid out with mounting brackets, shims, fasteners and brake pads

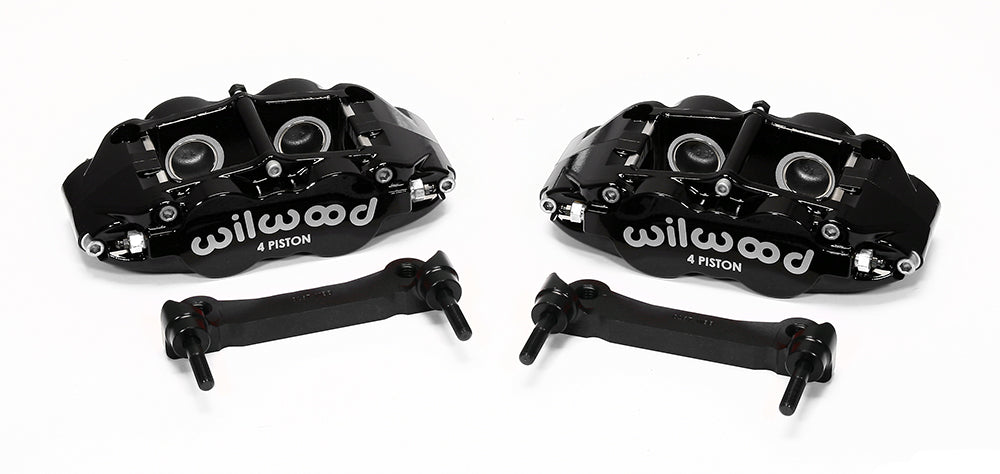

Wilwood pair of black four-piston rear calipers beside two mounting brackets; no rotors shown
Wilwood black rear Superlite caliper kit laid out with mounting brackets, shims, fasteners and brake pads
Wilwood pair of black four-piston rear calipers beside two mounting brackets; no rotors shown

Wilwood Rear Superlite 4R Caliper and Bracket Kit in Black for Corvette C5/C6 and Listed Cadillac XLR — Selected 1997–2013 Applications

SKU: 140-14026

$1,126.63 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This black Superlite 4R package is a rear caliper-and-bracket conversion, not a rotor kit. Four-piston calipers and pads require the specified separate 13.00-inch rear rotors from the 2005–2009 C6 Z51/J55 arrangement. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.

Technical Details

  • Manufacturer: Wilwood
  • Manufacturer part number: 140-14026
  • Kit classification: Rear Brake Kits - Street Performance
  • Axle position: Rear Kits
  • Brake Type: Disc
  • Selling unit: Sold as a kit.
  • Minimum wheel guidance (clearance drawing required): 17 in; 431.8 mm
  • Required rear axle / flange: OEM
  • Catalog axle-offset reference: 0.00 in; 0 mm
  • Spindle Included: No
  • Mounting Hardware Included: Yes
  • Separate wheel hubs included: No
  • Master Cylinder Included: No
  • Brake Booster Included: No
  • Brake Lines Included: No
  • Separately specified components: Rear flexlines: 220-8177 for C5 or 220-9101 for C6; separately supplied
  • Pistons per service caliper: 4
  • Service-caliper piston construction: Stainless
  • Service-caliper mount: Radial
  • Caliper body construction: Forged aluminum
  • Caliper Color: Black
  • Caliper Finish: Black Powder Coat
  • Caliper Inlet Port Diameter: 1/8-27 NPT
  • Caliper family: Superlite 4R
  • Pad compound: BP-20

Fitment & Compatibility

This kit requires customer-supplied 13.00-inch C6 Z51 rear rotors of the specified 2005–2009 J55 configuration; the calipers cannot be selected solely by the vehicle year. Use 220-8177 rear flexlines for C5 or 220-9101 for C6 as applicable, both separately supplied, and confirm the listed XLR installation individually. Front line references do not serve this rear caliper connection. Verify wheel clearance and the existing parking-brake arrangement.

Listed models: Corvette; XLR. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1997-2004 Chevrolet Corvette C-5 & Z06 Disc Disc Rear Kit 1, 2, 3, 4, 5, 6
2004-2009 Cadillac XLR All Disc Disc Rear Kit 1, 2, 3, 4, 5, 6
2005-2008 Chevrolet Corvette Base C-6 - Base Disc Disc Rear Kit 1, 2, 3, 4, 5, 6
2006-2008 Chevrolet Corvette Z06 C-6 - Z06 Disc Disc Rear Kit 1, 2, 3, 4, 5, 6
2009-2013 Chevrolet Corvette Base Base Disc Disc Rear Kit 1, 2, 3, 4, 5, 6
2009-2013 Chevrolet Corvette Z06 Z06 Disc Disc Rear Kit 1, 2, 3, 4, 5, 6
2009-2013 Chevrolet Corvette ZR1 ZR1 Disc Disc Rear Kit 1, 2, 3, 4, 5, 6
2010-2013 Chevrolet Corvette Grand Sport Grand Sport Disc Disc Rear Kit 1, 2, 3, 4, 5, 6
2011 Chevrolet Corvette Z06 Carbon Z06 Carbon Disc Disc Rear Kit 1, 2, 3, 4, 5, 6
2013 Chevrolet Corvette 427 427 Disc Disc Rear Kit 1, 2, 3, 4, 5, 6
