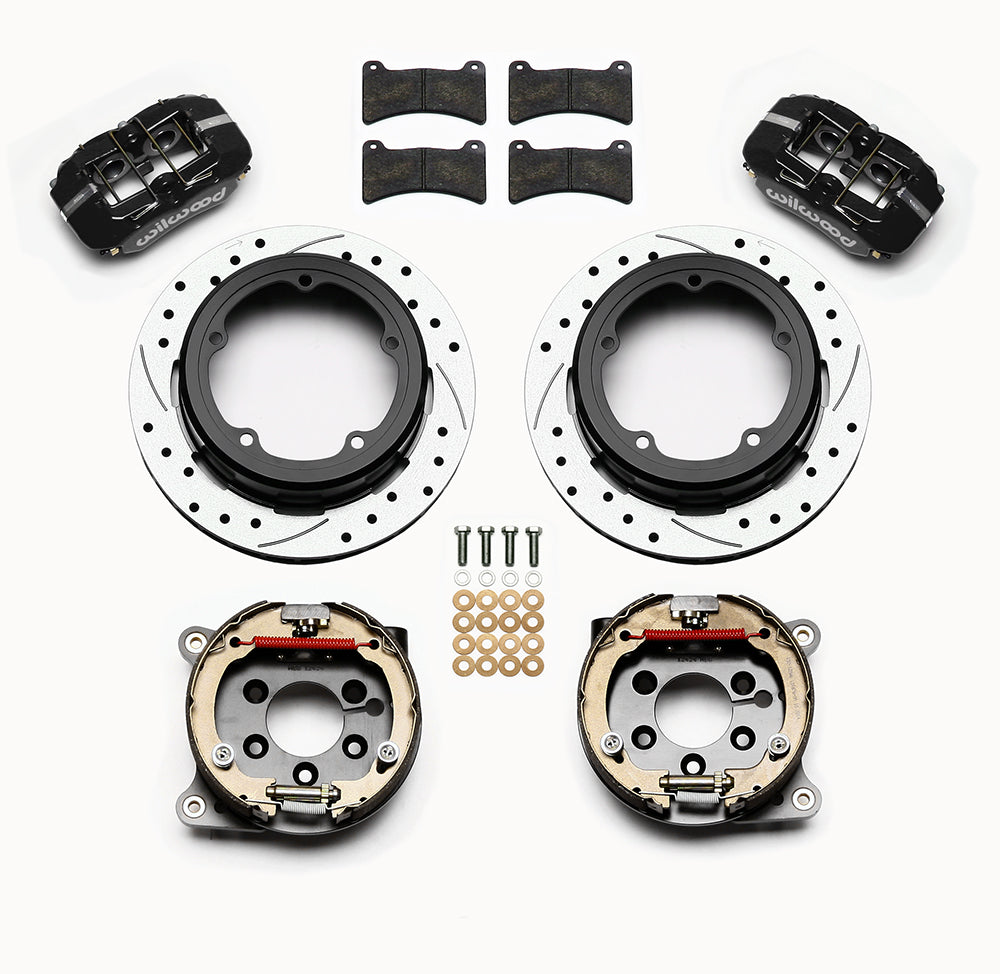

Wilwood black low-profile rear calipers, drilled-and-slotted rotor-and-hat units, pads and internal parking-shoe assemblies laid out

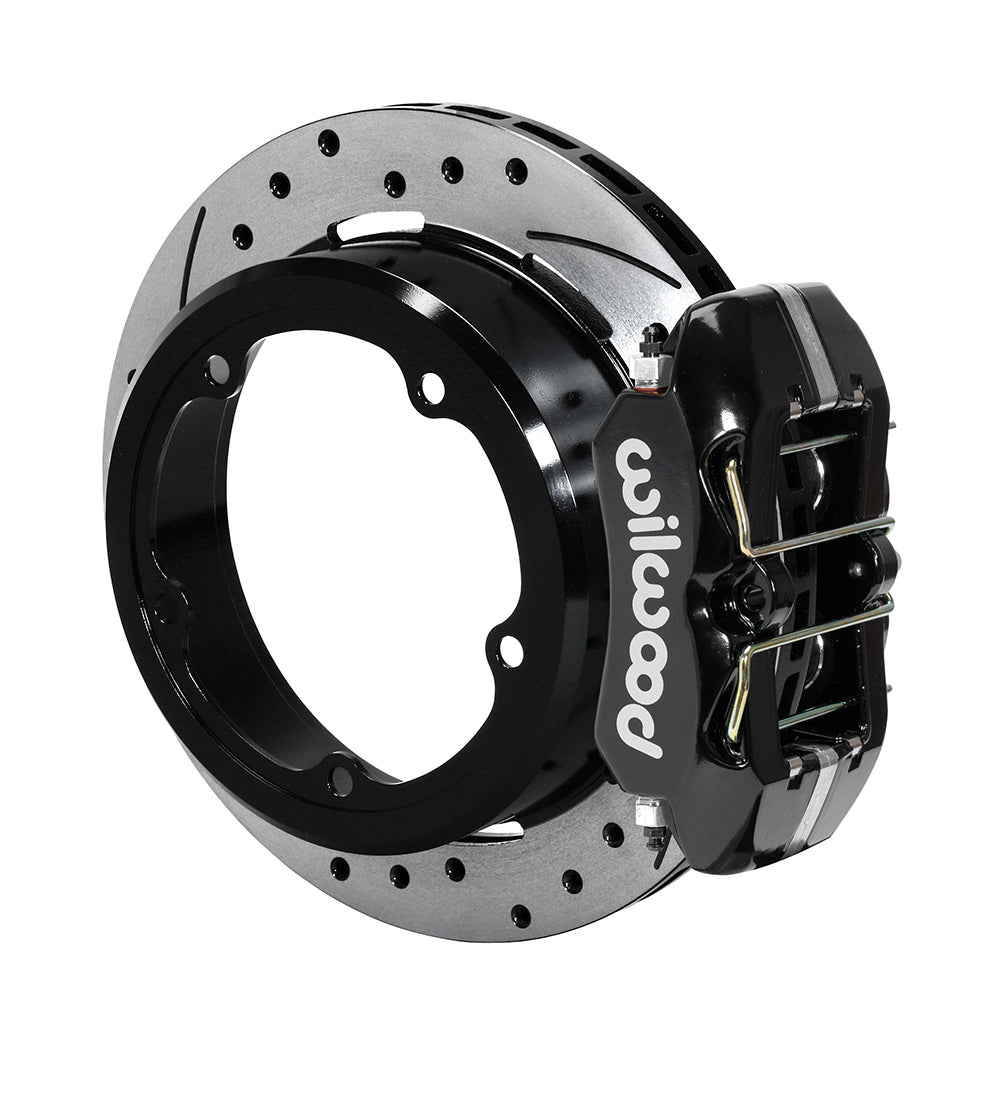

Wilwood black low-profile rear caliper beside an assembled drilled-and-slotted rotor with a deep parking-brake hat
Wilwood black low-profile rear calipers, drilled-and-slotted rotor-and-hat units, pads and internal parking-shoe assemblies laid out
Wilwood black low-profile rear caliper beside an assembled drilled-and-slotted rotor with a deep parking-brake hat

Wilwood Rear Black Dynapro Conversion for Strange Engineering Floater, 11-Inch Drilled Rotors and Parking Brake

SKU: 140-13952-D

$1,576.03 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This low-profile rear conversion combines black four-piston Dynapro calipers with 11-inch drilled-and-slotted rotors. Its internal parking-brake assembly is designed around the specified Strange floater flange and 3.49-inch offset. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.

Technical Details

  • Manufacturer: Wilwood
  • Manufacturer part number: 140-13952-D
  • Kit classification: Rear Brake Kits - Street Performance
  • Axle position: Rear Kits
  • Brake Type: Disc; Parking
  • Selling unit: Sold as a kit.
  • Master Cylinder Included: No
  • Brake Booster Included: No
  • Brake Lines Included: No
  • Rotor Outside Diameter: 11.00 in; 279.4 mm
  • Rotor Thickness: 0.81 in; 20.57 mm
  • Rotor Material: Iron
  • Surface Type: SRP Drilled & Slotted
  • Rotor construction: Vented
  • Bolt Circle Diameter: 5 x 5.75 in; 5 x 146.05 mm
  • Catalog stud / mounting-hole reference: 0.38 in; 9.65 mm
  • Rotor surface finish: Black Electro Coat
  • Pistons per service caliper: 4
  • Service-caliper piston construction: Stainless
  • Service-caliper mount: Lug
  • Caliper body construction: Forged aluminum
  • Caliper Color: Black
  • Caliper Finish: Black Powder Coat
  • Caliper Inlet Port Diameter: 1/8-27 NPT
  • Caliper family: low-profile Dynapro
  • Pad compound: BP-10
  • Minimum wheel guidance (clearance drawing required): 14 in; 355.6 mm
  • Required rear axle / flange: Strange Engineering Floater
  • Catalog axle-offset reference: 3.49 in; 88.65 mm
  • Spindle Included: No
  • Mounting Hardware Included: Yes
  • Separate wheel hubs included: No

Fitment & Compatibility

Match the Strange Engineering floater housing end and 3.49-inch axle offset to DS-1082; no vehicle-model fitment is implied. The supplied internal parking-shoe assemblies require separately selected cables, clevises and adapters, with cable routing checked for travel and clearance. Hydraulic flexlines are also separate. The 14-inch wheel guidance is conditional on the clearance diagram.
