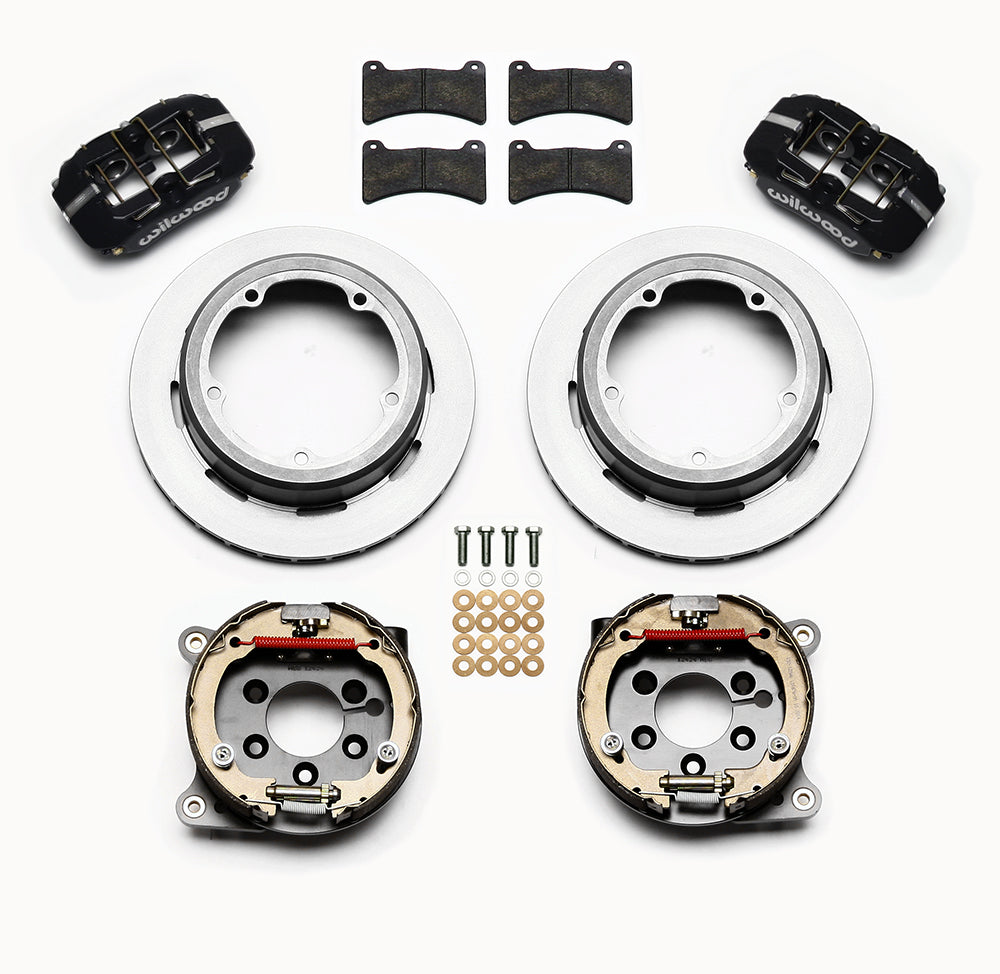

Wilwood black low-profile rear calipers, plain-face rotor-and-hat units, pads and internal parking-shoe assemblies laid out

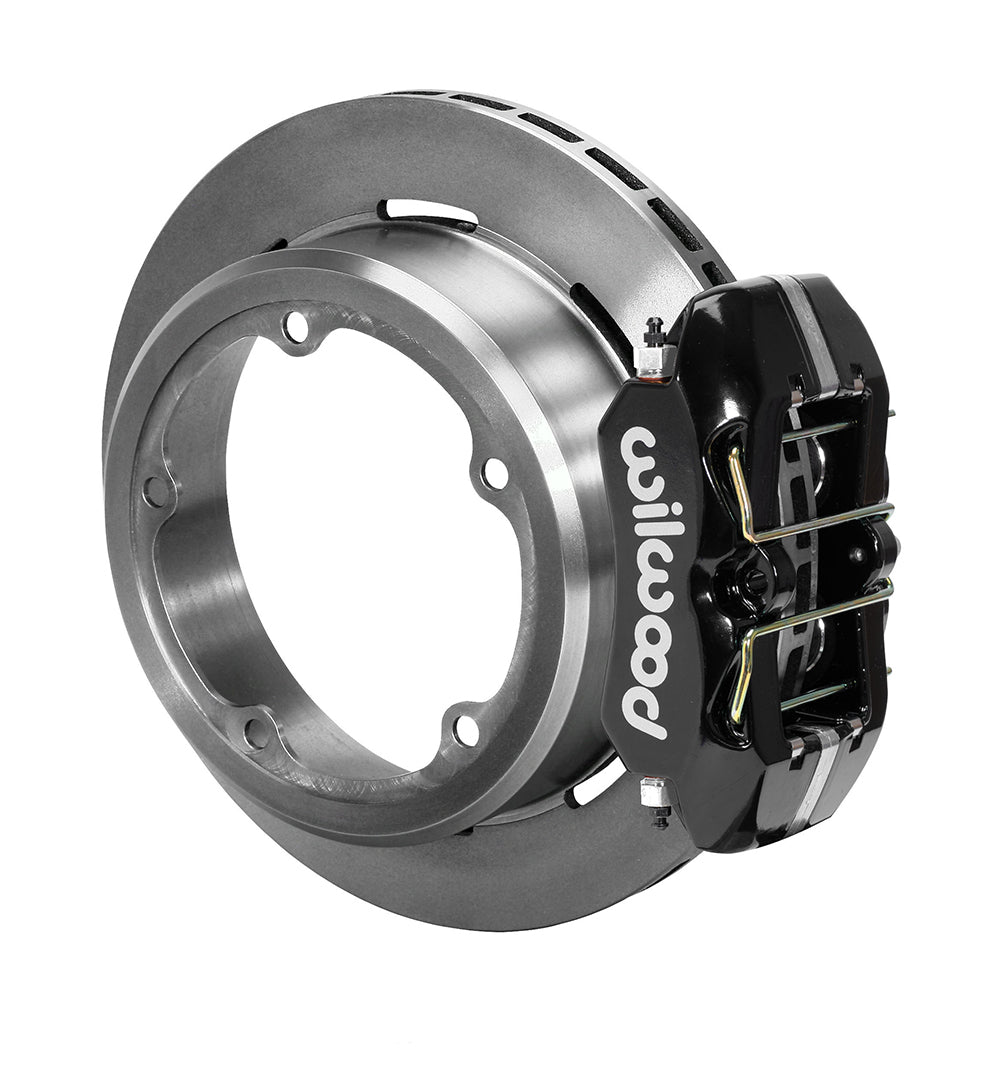

Wilwood black low-profile rear caliper beside an assembled plain-face rotor with a deep parking-brake hat
Wilwood black low-profile rear calipers, plain-face rotor-and-hat units, pads and internal parking-shoe assemblies laid out
Wilwood black low-profile rear caliper beside an assembled plain-face rotor with a deep parking-brake hat

Wilwood Rear Dynapro Low-Profile Parking-Brake Kit, Strange Floater 3.49-Inch Offset with 11-Inch Plain Rotors

SKU: 140-13952

$1,433.71 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The specified Strange Engineering floater axle uses this 3.49-inch-offset rear package. Black low-profile Dynapro calipers work with 11-inch plain-face rotor/hat assemblies and internal drum parking-brake shoes. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.

Technical Details

  • Manufacturer: Wilwood
  • Manufacturer part number: 140-13952
  • Kit classification: Rear Brake Kits - Street Performance
  • Axle position: Rear Kits
  • Brake Type: Disc; Parking
  • Selling unit: Sold as a kit.
  • Minimum wheel guidance (clearance drawing required): 14 in; 355.6 mm
  • Required rear axle / flange: Strange Engineering Floater
  • Catalog axle-offset reference: 3.49 in; 88.65 mm
  • Spindle Included: No
  • Mounting Hardware Included: Yes
  • Separate wheel hubs included: No
  • Pistons per service caliper: 4
  • Service-caliper piston construction: Stainless
  • Service-caliper mount: Lug
  • Caliper body construction: Forged aluminum
  • Caliper Color: Black
  • Caliper Finish: Black Powder Coat
  • Caliper Inlet Port Diameter: 1/8-27 NPT
  • Caliper family: low-profile Dynapro
  • Pad compound: BP-10
  • Master Cylinder Included: No
  • Brake Booster Included: No
  • Brake Lines Included: No
  • Rotor Outside Diameter: 11.00 in; 279.4 mm
  • Rotor Thickness: 0.81 in; 20.57 mm
  • Rotor Material: Iron
  • Surface Type: Plain Face
  • Rotor construction: Vented
  • Bolt Circle Diameter: 5 x 5.75 in; 5 x 146.05 mm
  • Catalog stud / mounting-hole reference: 0.38 in; 9.65 mm
  • Rotor surface finish: Plain

Fitment & Compatibility

Match the Strange Engineering floater housing end and 3.49-inch axle offset to DS-1082; no vehicle-model fitment is implied. The supplied internal parking-shoe assemblies require separately selected cables, clevises and adapters, with cable routing checked for travel and clearance. Hydraulic flexlines are also separate. The 14-inch wheel guidance is conditional on the clearance diagram.
