Wilwood Front Red AERO6 Kit, 15-Inch Drilled Rotors for Chevrolet Corvette C7 2014–2019

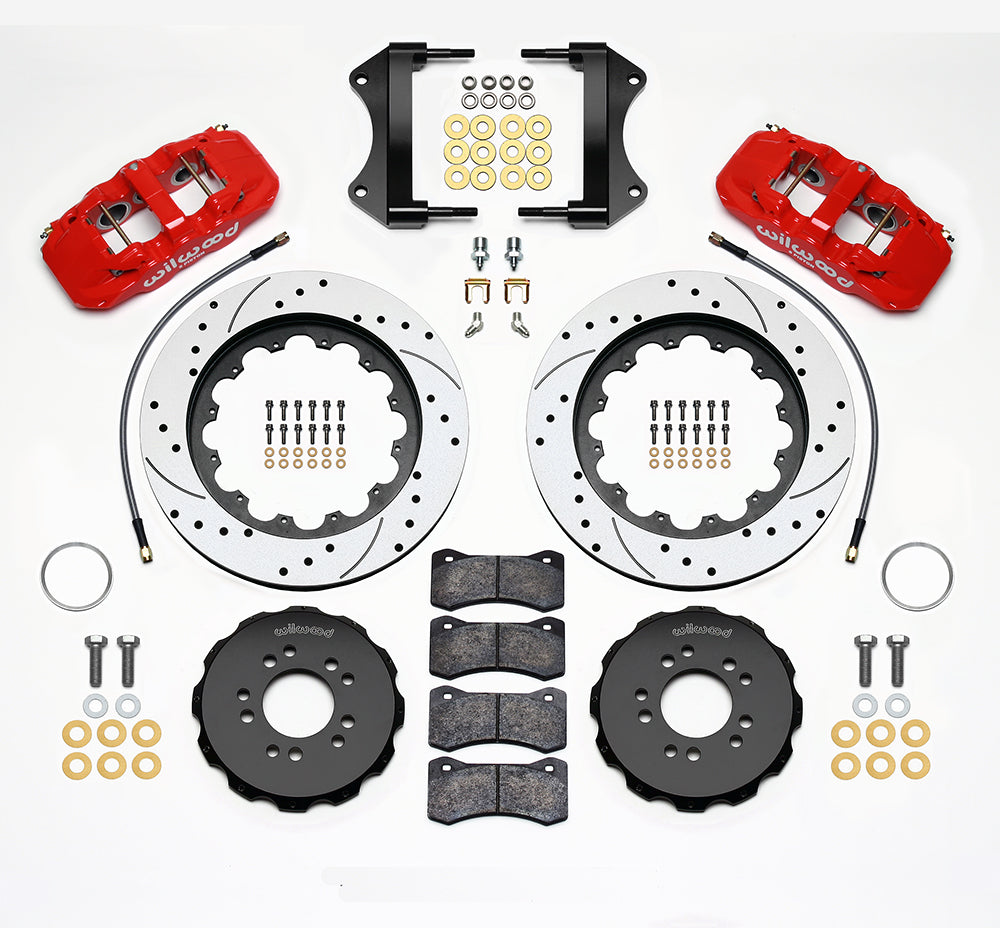

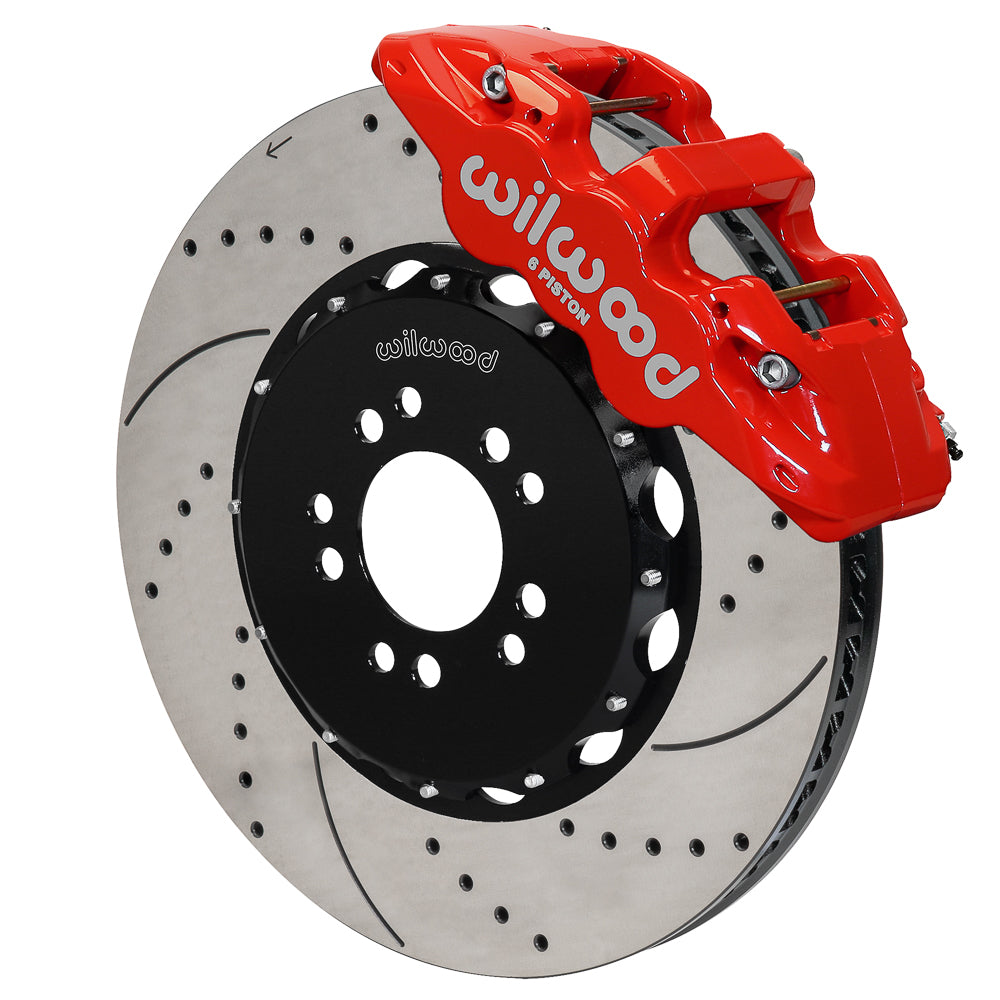

Red six-piston AERO6 calipers and drilled-and-slotted rotors are paired for the listed C7 front axle. The 15.00 by 1.25-inch rotor package requires verified wheel clearance and correct hub registration. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-13911-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Catalog stud / mounting-hole reference: 0.580 in; 14.73 mm; 0.520 in; 13.21 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 0.540 in
• Minimum wheel guidance (clearance drawing required): 19 in; 482.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-20

Fitment & Compatibility

Check the individual C7 Stingray, Z51, Z06, Grand Sport or ZR1 year entry and the existing hub before installation. DS-1091 includes flexline kit 220-9100 and requires the original hose-bracket opening to be enlarged as detailed in the guide. The two listed hat patterns describe the supplied hardware; use only the pattern matching the actual wheel hub. Compare wheel spokes and barrel with the 15-inch assembly template.

Listed models: Corvette. Use the fitment table below for the individual years, submodels and equipment conditions.
