Wilwood Front AERO6 Brake Kit for Corvette C7 2014–2019, Black Calipers and 15-Inch Slotted Rotors

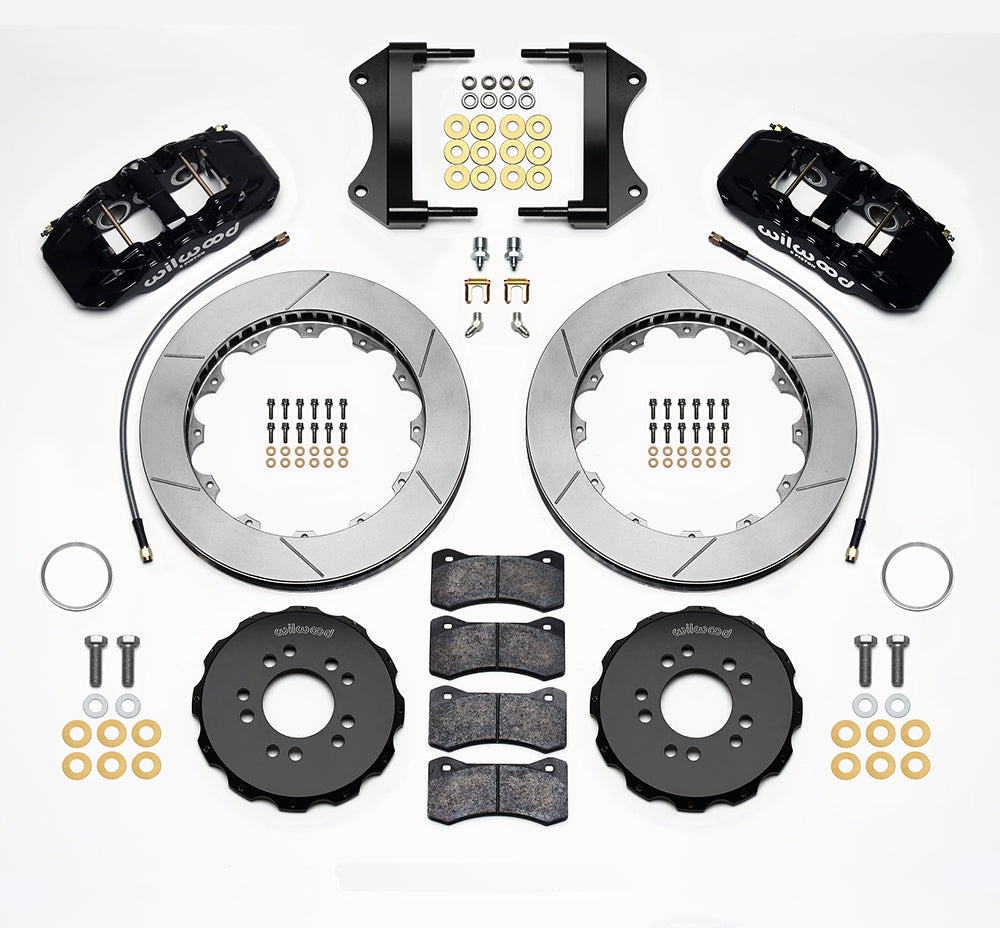

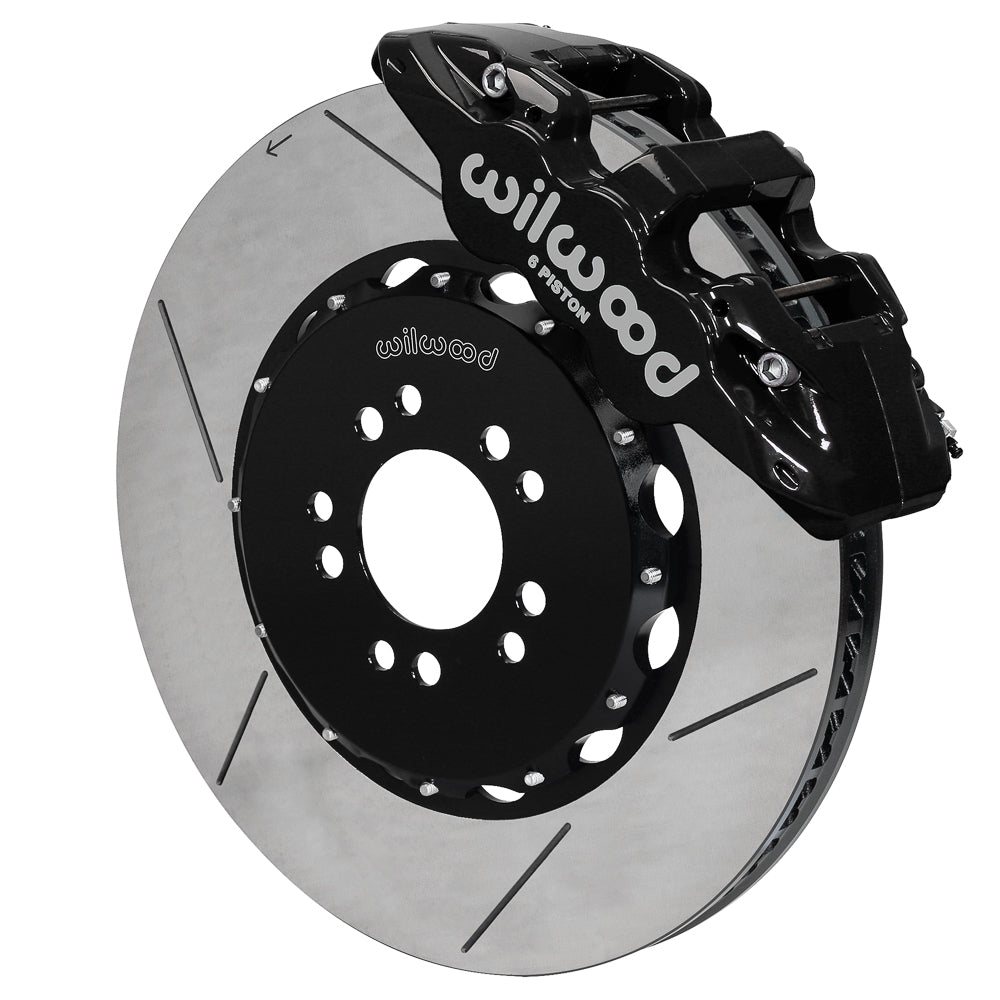

For the listed C7 Corvette, this front conversion uses black six-piston AERO6 calipers and 15.00-inch slotted rotors. Registration rings, application-specific hats and braided flexlines form part of the installation package. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-13911
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel guidance (clearance drawing required): 19 in; 482.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Catalog stud / mounting-hole reference: 0.580 in; 14.73 mm; 0.520 in; 13.21 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 0.540 in
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-20
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes

Fitment & Compatibility

Check the individual C7 Stingray, Z51, Z06, Grand Sport or ZR1 year entry and the existing hub before installation. DS-1091 includes flexline kit 220-9100 and requires the original hose-bracket opening to be enlarged as detailed in the guide. The two listed hat patterns describe the supplied hardware; use only the pattern matching the actual wheel hub. Compare wheel spokes and barrel with the 15-inch assembly template.

Listed models: Corvette. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
