Wilwood Front Black AERO6 Kit, 15-Inch Rotors for Corvette C5/C6, XLR and Listed GM Ridetech Spindles — Selected 1962–2013 Applications

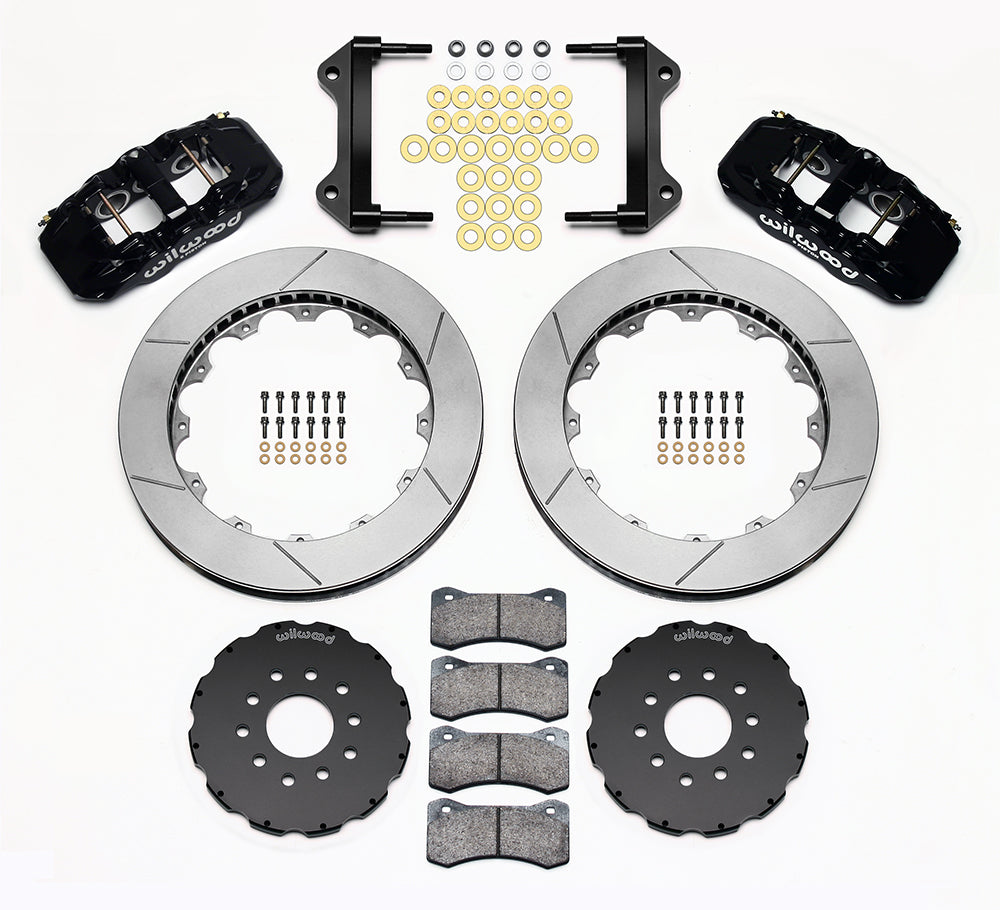

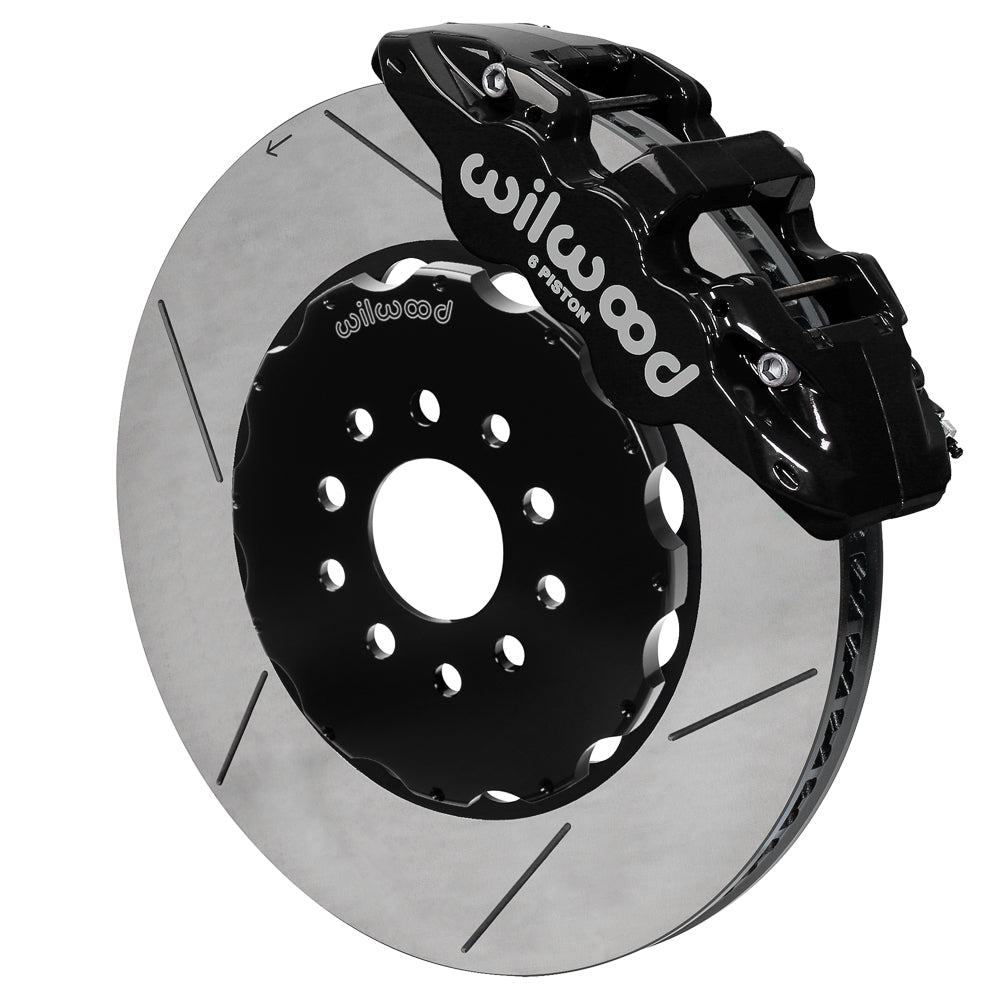

Black six-piston AERO6 calipers mount over 15-inch slotted rotors in this Corvette-hub front package. The broader application list also includes specific GM vehicles converted to the required Ridetech hub spindle. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-13903
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel guidance (clearance drawing required): 19 in; 482.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-20
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Separately specified components: 220-8176; 220-9100
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Catalog stud / mounting-hole reference: 0.520 in; 13.21 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 0.290 in

Fitment & Compatibility

C5/C6 Corvette and Cadillac XLR entries require the listed hub and brake configuration. The many classic GM applications require a Ridetech hub spindle, so an original-spindle car is not covered by its model/year alone. Hoses are separate: DS-1079 identifies 220-8176 for C5 and 220-9100 for C6, with other converted installations checked individually. Match the wheel template and correct hub registration.

Listed models: Chevy II; Corvette; Skylark; Special; Sportwagon; Chevelle; El Camino; 442; Cutlass; F85; Vista Cruiser; Beaumont; GTO; LeMans; Tempest; Gran Sport; Camaro; Cutlass Supreme; Firebird; GS 350; GS 400; Nova; GS; GS 455; Sprint; Ventura; Apollo; Omega; XLR. Use the fitment table below for the individual years, submodels and equipment conditions.
