Wilwood Rear Black AERO4 Brake Conversion for S550 Mustang, MC4 Calipers and 14-Inch Drilled Rotors — Selected 2015–2023 Applications

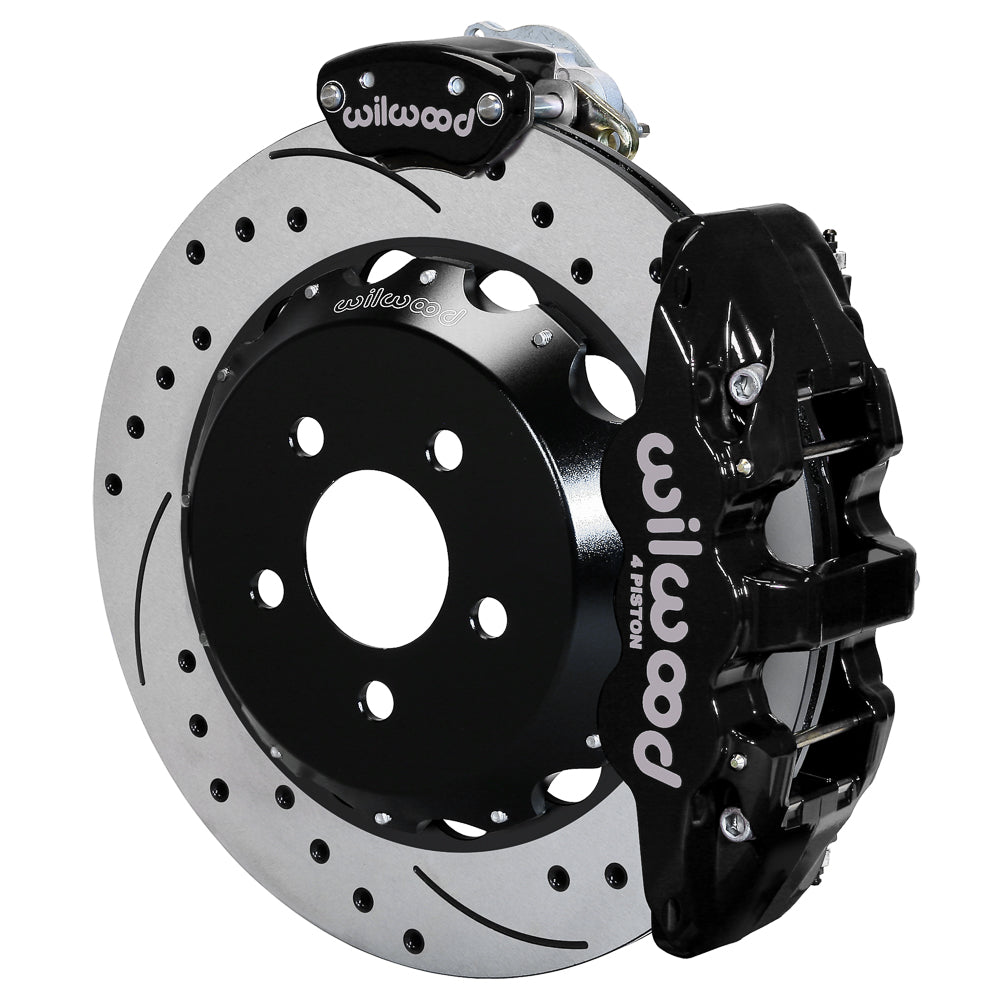

Drilled-and-slotted 14-inch rotors accompany black four-piston AERO4 service calipers in this S550 rear kit. Separate MC4 units provide mechanical parking-brake action rather than relying on hydraulic line pressure. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-13888-D
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc; Parking
• Selling unit: Sold as a kit.
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Required rear axle / flange: OEM
• Catalog axle-offset reference: 0.00 in; 0 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.200 in
• Pistons per service caliper: 4
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO4
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes

Fitment & Compatibility

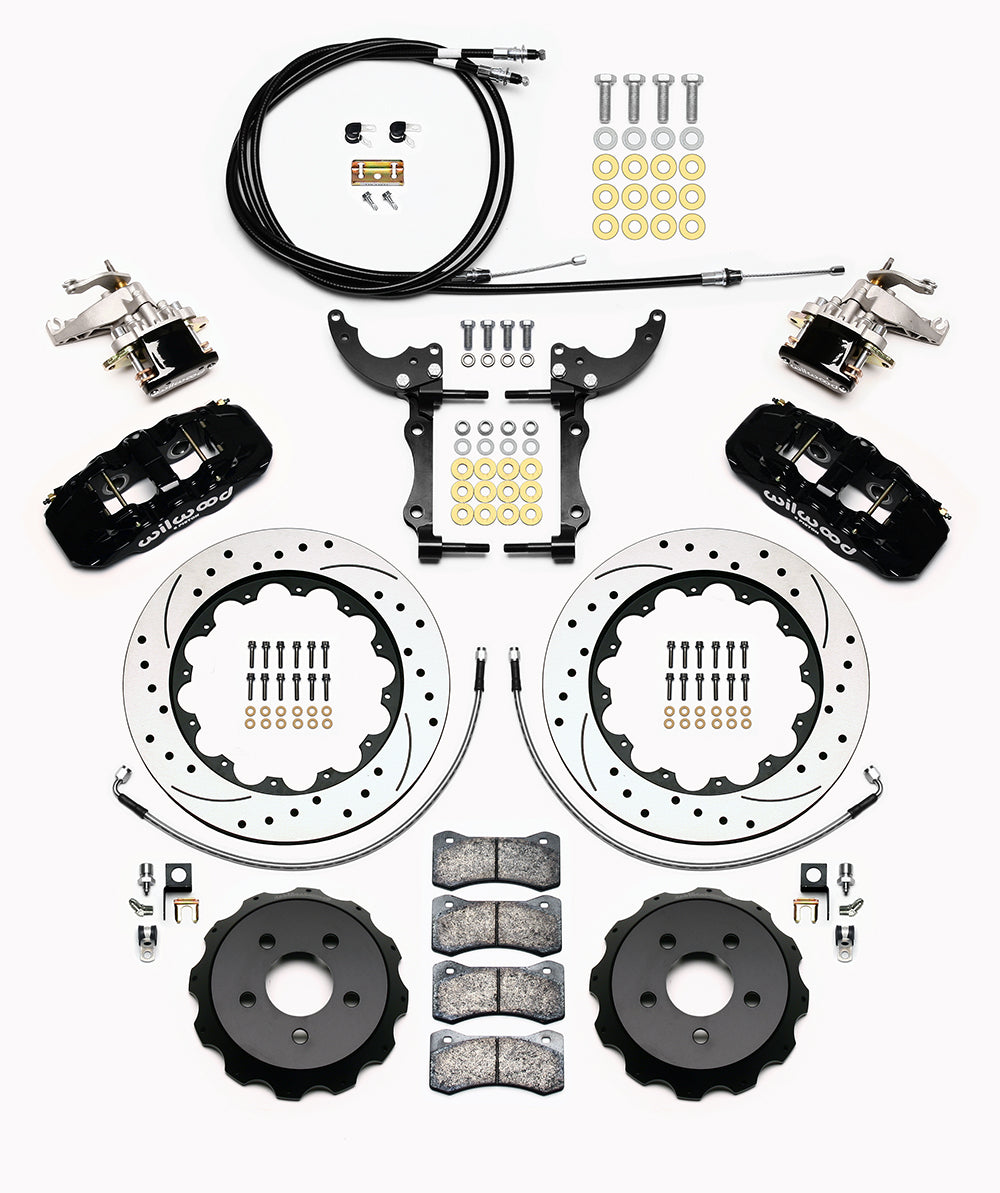

This rear conversion is for the specific 2015–2023 S550 Mustang trims listed below; no unlisted Shelby application should be assumed. DS-1078 includes rear hose kit 220-13913 and parking-brake cable assembly 330-15137. The separate MC4 calipers must be correctly aligned and the cable travel adjusted; verify wheel clearance around both service and parking calipers.

Listed models: Mustang. Use the fitment table below for the individual years, submodels and equipment conditions.
