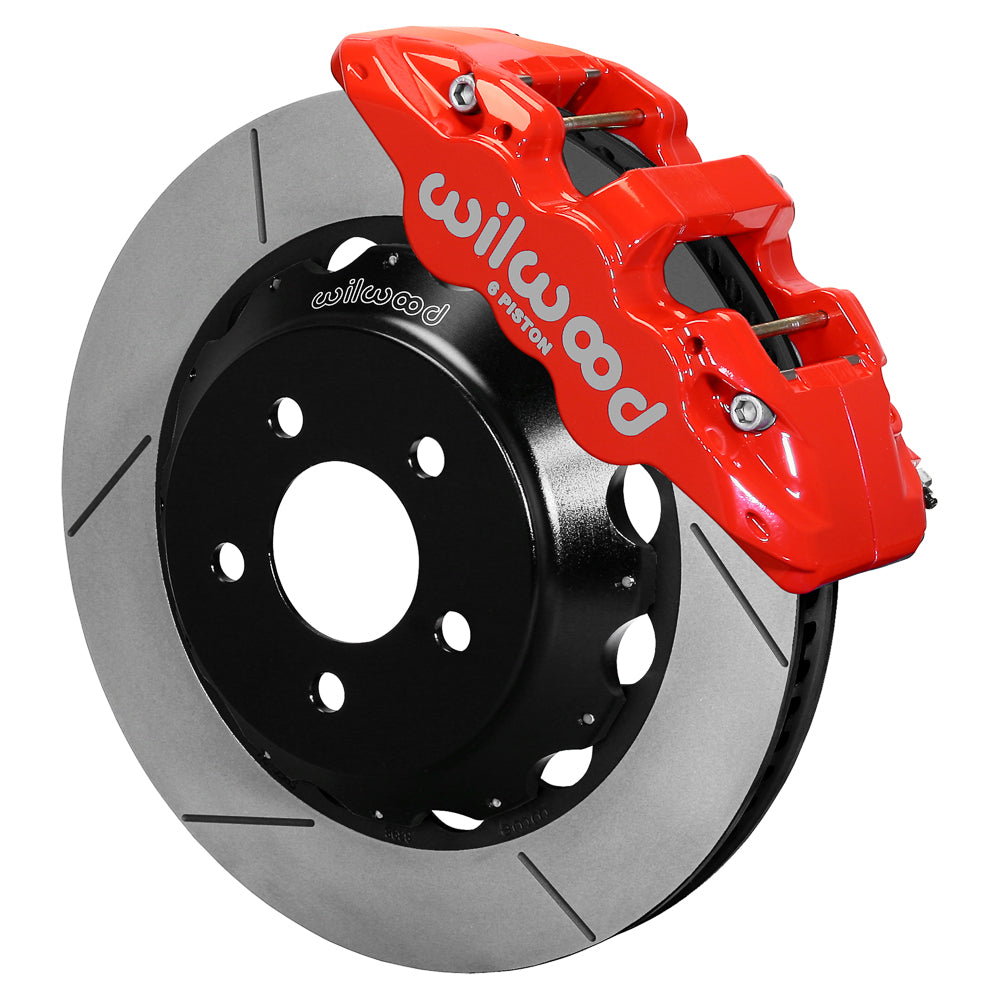

Wilwood Front Slotted 15-Inch Brake Assembly for Mustang S550 (2015–2023) and Ridetech Hubs, Red AERO6 Calipers

The GT-slotted rotor version supplies red AERO6 front calipers with six stainless pistons each. At 15.00 inches in diameter, the rotor package needs verified wheel clearance on the specific Mustang or Ridetech hub assembly. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-13887-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc

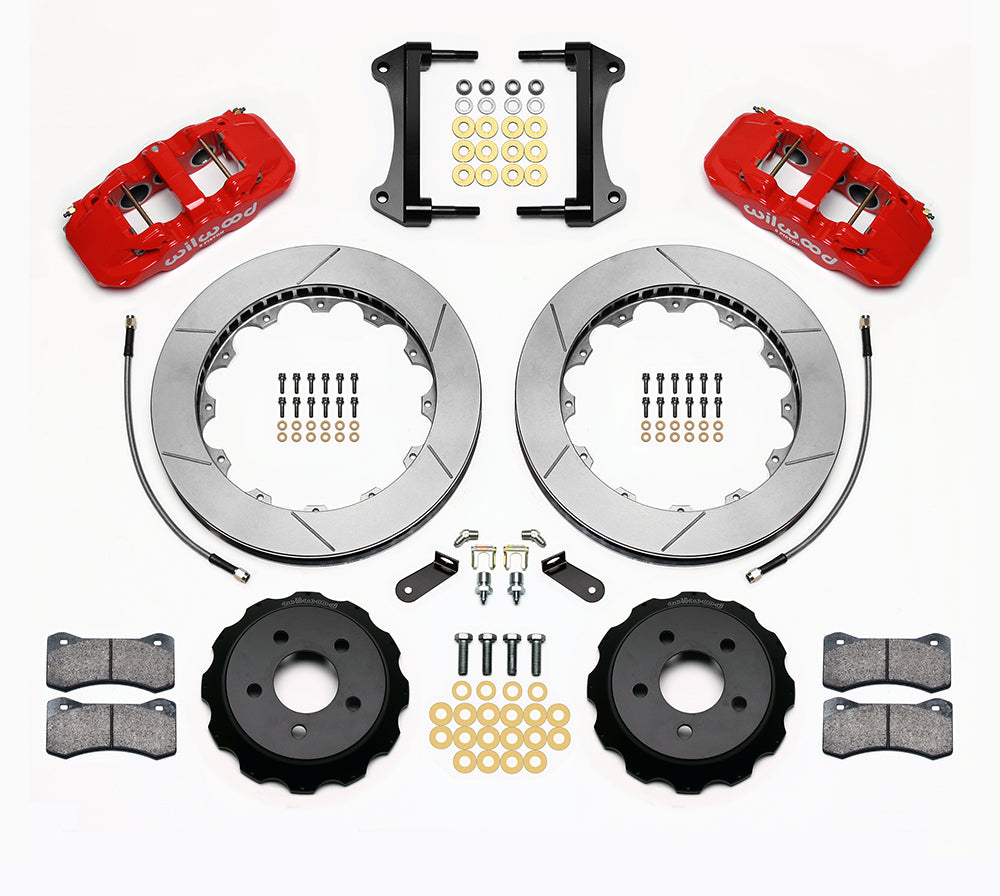

• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.380 in
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel guidance (clearance drawing required): 19 in; 482.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-20

Fitment & Compatibility

The 15-inch kit uses the listed S550 Mustang hub, or the explicitly identified Ridetech hub-spindle conversion on older Ford/Mercury vehicles. Match the exact trim and spindle entry; GT350/GT500 fitment is not established by the Mustang name. Front hose kit 220-13912 is included. Check the 19-inch wheel guidance against the supplied clearance drawing before choosing wheels.

Listed models: Falcon; Comet; Mustang; F-100. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
