Wilwood Front Black AERO6 Brake Conversion, 14-Inch Drilled Rotors for Mustang S550 (2015–2023)/Ridetech Hubs

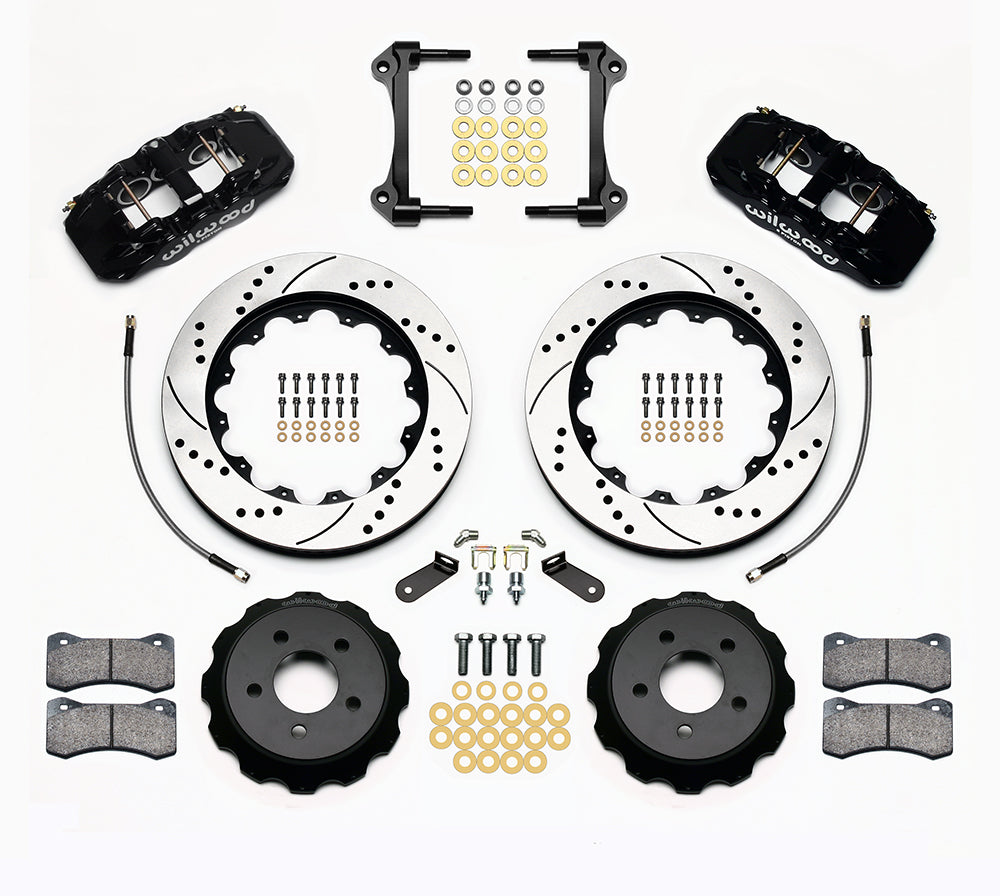

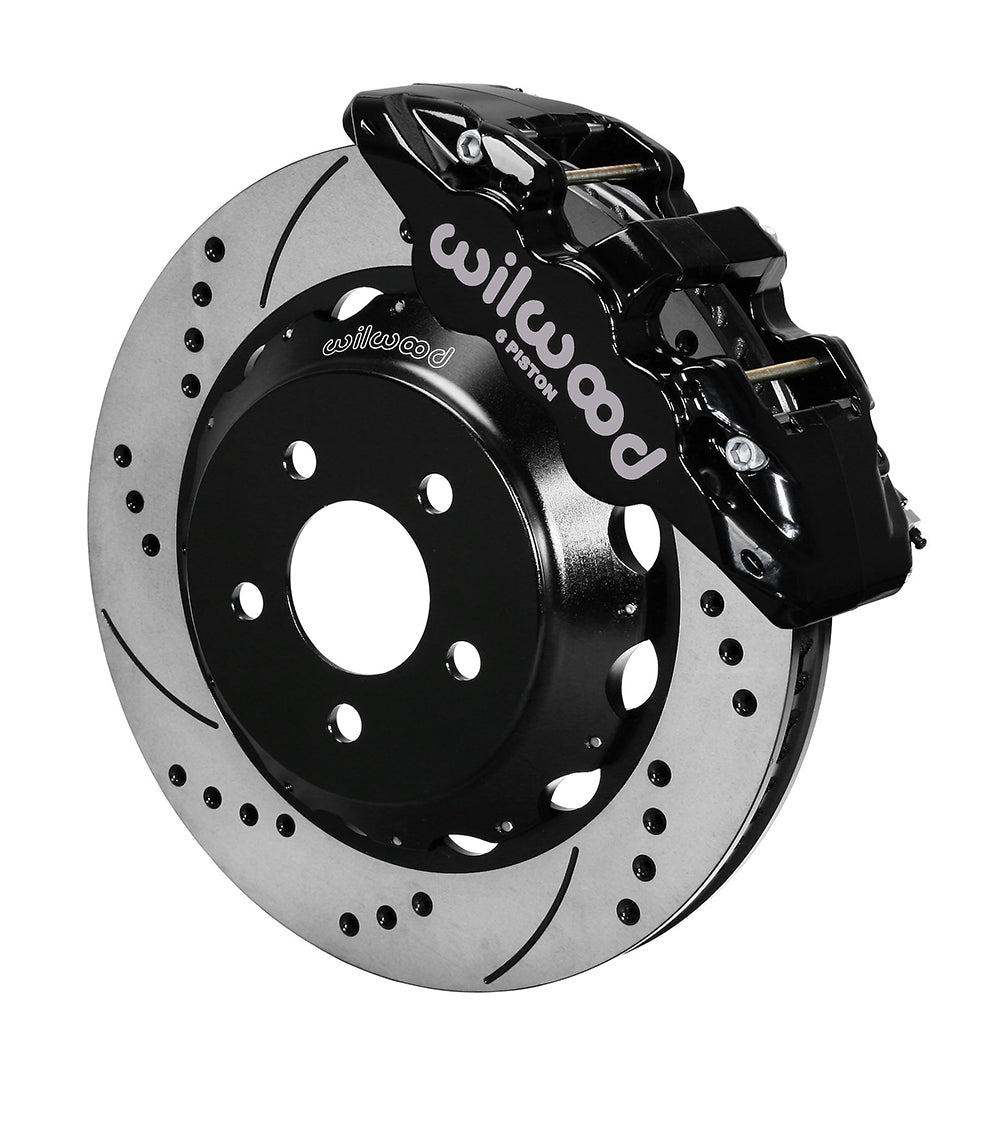

Drilled-and-slotted 14-inch rotors and black AERO6 calipers identify this front package. The included hydraulic hoses suit the specified installation, with routing and wheel clearance checked against the actual vehicle. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-13886-D
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.380 in

Fitment & Compatibility

For factory S550 installations, use only the listed 2015–2023 Mustang trim and brake-package entries; do not assume Shelby GT350/GT500 coverage. Classic Falcon, Comet, F-100 and Mustang rows require the stated Ridetech hub spindle or SLA/hub-spindle conversion, not their original spindles. DS-1076 includes front flexlines 220-13912. The wheel barrel and spoke shape must clear the 14-inch assembly.

Listed models: Falcon; Comet; Mustang; F-100. Use the fitment table below for the individual years, submodels and equipment conditions.
