Wilwood Front Red Superlite 6R Kit, 12.88-Inch Drilled Rotors for 2007–2018 Jeep Wrangler/JK

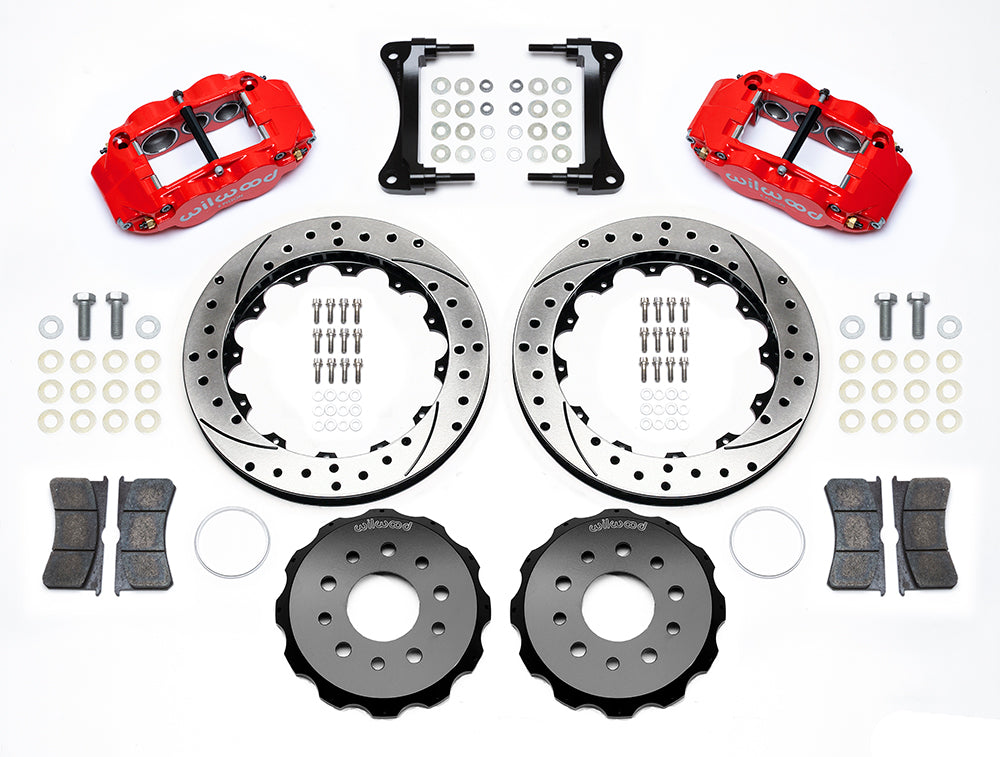

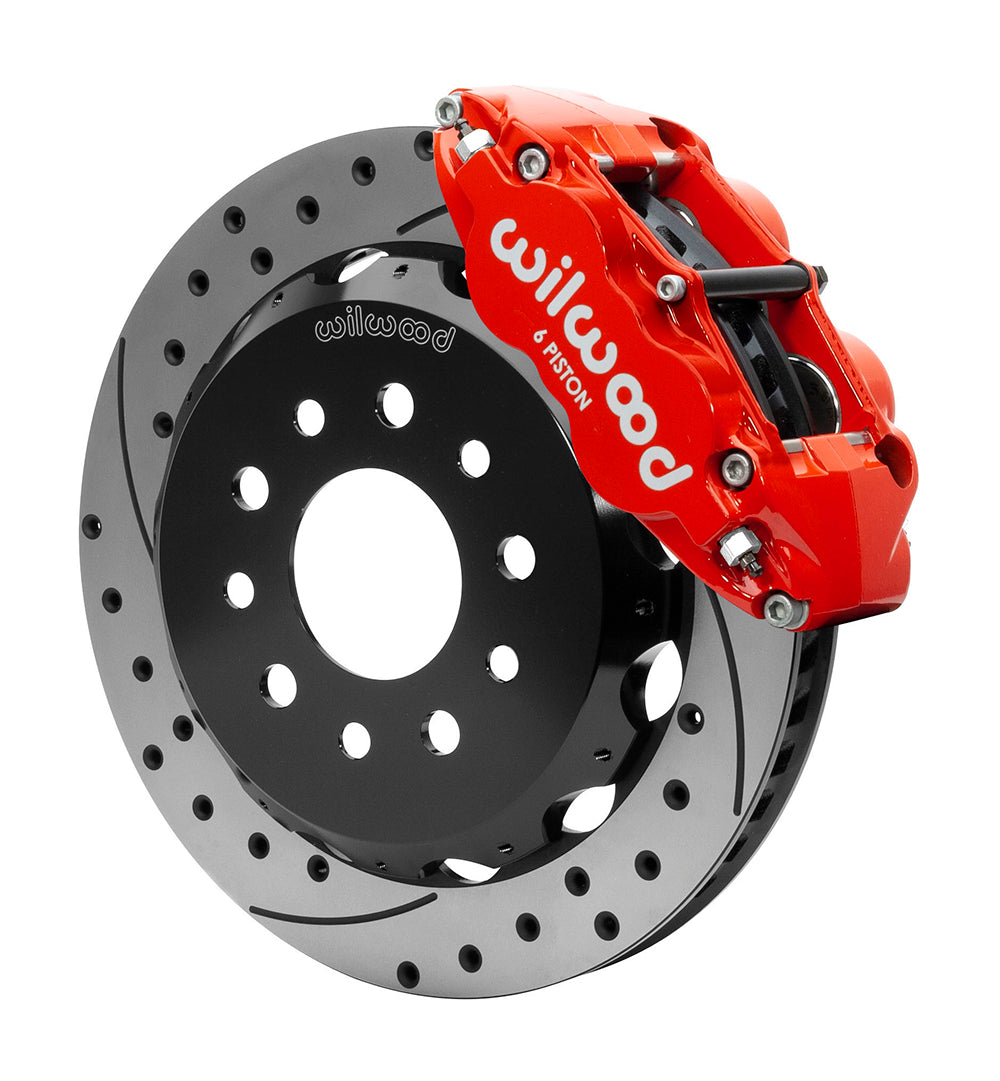

Red Superlite 6R calipers are paired with drilled-and-slotted vented rotors for the specified Jeep JK front axle. The conversion retains the hub and needs a separately selected hydraulic flexline kit. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-13880-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 12.88 in; 327.15 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 5 in; 5 x 127 mm
• Catalog stud / mounting-hole reference: 0.520 in; 13.21 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 0.850 in
• Minimum wheel guidance (clearance drawing required): 17 in; 431.8 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Superlite 6R
• Pad compound: BP-20

Fitment & Compatibility

Use the listed 2007–2017 Wrangler or 2018 Wrangler JK application; the 2018 JK entry must not be extended to the newer JL platform. Confirm the original front hub and five-lug pattern, then use the wheel drawing rather than rim diameter alone. Front flexline kit 220-11237 is specified separately; the kit is designed around the qualifying OE master-cylinder output and ABS function.

Listed models: Wrangler; Wrangler JK. Use the fitment table below for the individual years, submodels and equipment conditions.
