Wilwood Front Superlite 6R Kit for 2007–2018 Jeep Wrangler/JK, Black Calipers and 12.88-Inch Rotors

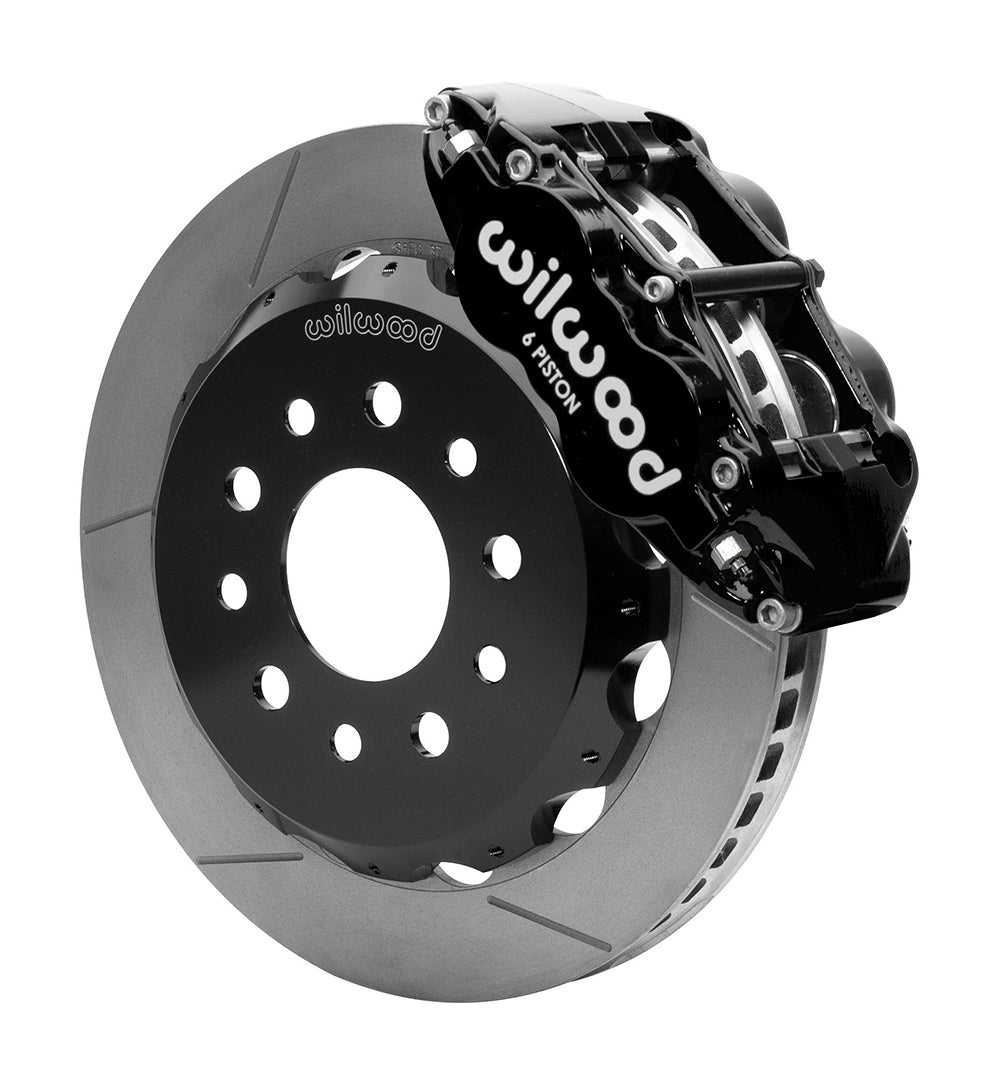

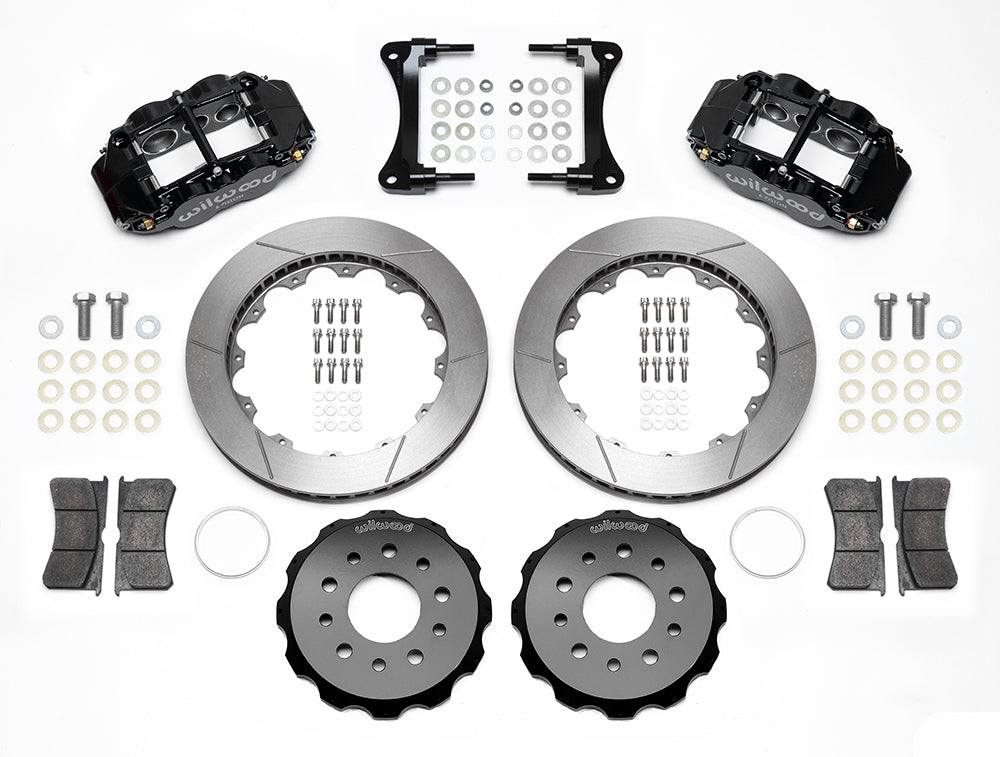

The listed Jeep JK front hub accepts this 12.88-inch Superlite 6R conversion. Black six-piston calipers and two-piece slotted rotor assemblies replace the service-brake components while the original hub remains in use. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-13880
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel guidance (clearance drawing required): 17 in; 431.8 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 12.88 in; 327.15 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 5 in; 5 x 127 mm
• Catalog stud / mounting-hole reference: 0.520 in; 13.21 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 0.850 in
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Superlite 6R
• Pad compound: BP-20
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No

Fitment & Compatibility

Use the listed 2007–2017 Wrangler or 2018 Wrangler JK application; the 2018 JK entry must not be extended to the newer JL platform. Confirm the original front hub and five-lug pattern, then use the wheel drawing rather than rim diameter alone. Front flexline kit 220-11237 is specified separately; the kit is designed around the qualifying OE master-cylinder output and ABS function.

Listed models: Wrangler; Wrangler JK. Use the fitment table below for the individual years, submodels and equipment conditions.
