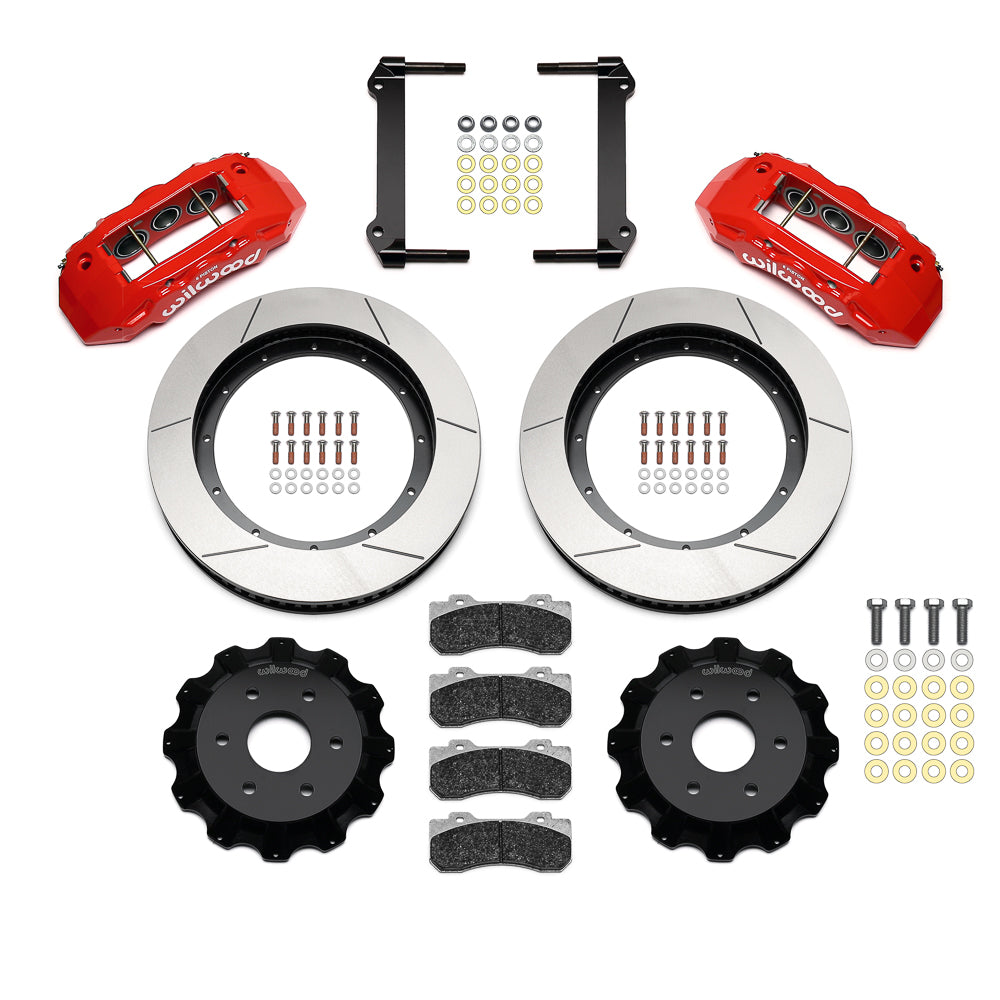

Wilwood red TX6R front kit for six-lug GM trucks, with 16-inch slotted rotors, separate hats, pads, brackets and hardware laid out

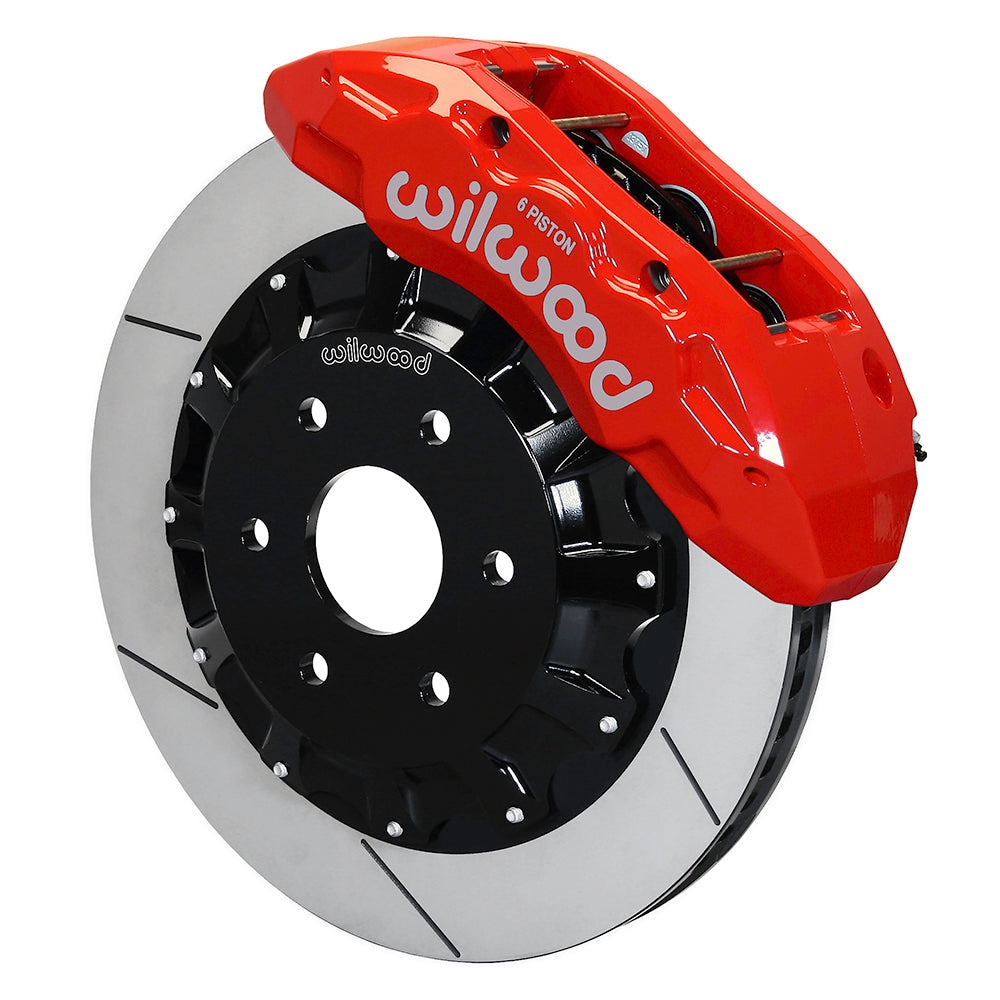

Wilwood TX6R caliper shown in a warm red-orange finish over an assembled slotted rotor and black six-lug hat
Wilwood red TX6R front kit for six-lug GM trucks, with 16-inch slotted rotors, separate hats, pads, brackets and hardware laid out
Wilwood TX6R caliper shown in a warm red-orange finish over an assembled slotted rotor and black six-lug hat

Wilwood Front Slotted-Rotor Conversion for GM Six-Lug Vehicles, 16-Inch TX6R Brakes in Red — Selected 1999–2020 Applications

SKU: 140-13876-R

$3,200.56 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This GT-slotted version supplies red six-piston TX6R front calipers for the listed GM six-lug applications. The 16.00 by 1.38-inch rotor assembly must clear the wheel barrel and spokes throughout operation. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.

Technical Details

  • Manufacturer: Wilwood
  • Manufacturer part number: 140-13876-R
  • Kit classification: Front Brake Kits - Street Performance
  • Axle position: Front Kits
  • Brake Type: Disc
  • Selling unit: Sold as a kit.
  • Master Cylinder Included: No
  • Brake Booster Included: No
  • Brake Lines Included: No
  • Separately specified components: 220-8998; 220-10979
  • Rotor Outside Diameter: 16.00 in; 406.4 mm
  • Rotor Thickness: 1.38 in; 35.05 mm
  • Rotor Material: Iron
  • Surface Type: GT Slotted
  • Rotor construction: Vented
  • Bolt Circle Diameter: 6 X 5.5 in; 6 X 139.7 mm
  • Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
  • Rotor surface finish: Black Electro Coat
  • Hat material: Aluminum
  • Hat finish: Black E-Coat
  • Hat offset dimension: 0.810 in
  • Pistons per service caliper: 6
  • Service-caliper piston construction: Stainless
  • Service-caliper mount: Radial
  • Caliper body construction: Forged aluminum
  • Caliper Color: Red
  • Caliper Finish: Red Powder Coat
  • Caliper Inlet Port Diameter: 1/8-27 NPT
  • Caliper family: TX6R
  • Pad compound: BP-22
  • Minimum wheel guidance (clearance drawing required): 20 in; 508 mm
  • Spindle Included: No
  • Mounting Hardware Included: Yes
  • Separate wheel hubs included: No

Fitment & Compatibility

Confirm the exact six-lug GM year, body style, steering option and factory brake configuration in the table below. DS-1083 specifies separate flexlines 220-8998 for 1999–2006 or 220-10979 for 2007–2018; later listed vehicles require confirmation of the hose route and fittings. Iron/steel and aluminum spindles are listed, but the 16-inch package still requires a wheel-template check. Rear-brake option notes in the vehicle rows remain relevant to the exact application.

Listed models: Silverado 1500 Pickup; Sierra 1500 Pickup; Suburban 1500; Tahoe; Yukon; Yukon XL 1500; Escalade; Escalade EXT; Avalanche 1500; Escalade ESV; Avalanche; Silverado 1500; Suburban; Sierra 1500; Yukon XL; Silverado 1500 LD; Sierra 1500 Limited. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1999, 2001 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
1999, 2001 GMC Sierra 1500 Pickup 6 Lug - All w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2000 Chevrolet Silverado 1500 Pickup All w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2000-2001 Chevrolet Suburban 1500 6 Lug - All w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2000 Chevrolet Tahoe 6 Lug - New Style w/ OE HD 2 Pist Rear Disc Disc Front Kit 1, 2, 3, 4
2000 GMC Sierra 1500 Pickup All w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2000 GMC Yukon 6 Lug - except Denali w/ OE HD 2 Pist Rear Disc Disc Front Kit 1, 2, 3, 4
2000-2001 GMC Yukon XL 1500 6 Lug - All w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2001 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2001 Chevrolet Tahoe 6 Lug - All w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2001 Chevrolet Tahoe 6 Lug - All w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2001 GMC Sierra 1500 Pickup 6 Lug - All w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2001 GMC Yukon 6 Lug - All w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2001 GMC Yukon 6 Lug - All w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2005 Cadillac Escalade 6 Lug - 4 x 2 w/ 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2005 Cadillac Escalade 6 Lug - 4 x 2 w/ out 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2005 Cadillac Escalade 6 Lug - 4 x 4 w/ 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2005 Cadillac Escalade 6 Lug - 4 x 4 w/ out 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2004 Cadillac Escalade EXT 6 Lug - 4 x 2 w/ 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2004 Cadillac Escalade EXT 6 Lug - 4 x 2 w/ out 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2004 Cadillac Escalade EXT 6 Lug - 4 x 4 w/ 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2004 Cadillac Escalade EXT 6 Lug - 4 x 4 w/ out 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Avalanche 1500 6 Lug - 4 x 2 Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Avalanche 1500 6 Lug - 4 x 4 Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 2 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 2 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 4 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 4 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Suburban 1500 6 Lug - 4 x 2 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Suburban 1500 6 Lug - 4 x 4 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Tahoe 6 Lug - 4 x 2 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Tahoe 6 Lug - 4 x 4 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 2 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 4 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Yukon 6 Lug - 4 x 2 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002 GMC Yukon 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Yukon 6 Lug - 4 x 4 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002 GMC Yukon 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Yukon XL 1500 6 Lug - 4 x 2 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Yukon XL 1500 6 Lug - 4 x 4 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2005-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 2 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4
2005-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 4 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4
2006 Cadillac Escalade 6 Lug - 4 x 2 Disc Disc Front Kit 1, 2, 3, 4
2006 Cadillac Escalade 6 Lug - 4 x 4 Disc Disc Front Kit 1, 2, 3, 4
2007 Cadillac Escalade 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2007 Cadillac Escalade ESV 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2007 Cadillac Escalade EXT 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Avalanche 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Silverado 1500 Pickup 6 Lug - Classic Style w/ Drum Rear Disc Drum Front Kit 1, 5, 3, 4
2007 Chevrolet Silverado 1500 Pickup 6 Lug - Classic Style w/ OE 2 Piston Rear Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Silverado 1500 Pickup 6 Lug - Classic Style w/ OE Single Piston Rear Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Silverado 1500 Pickup 6 Lug - New Style w/ Disc Rear Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Silverado 1500 Pickup 6 Lug - New Style w/ Drum Rear Disc Drum Front Kit 1, 5, 3, 4
2007 Chevrolet Suburban 1500 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Tahoe 6 Lug - All execpt Police Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Tahoe 6 Lug - Police package Disc Disc Front Kit 1, 6, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - Classic Style w/ Drum Rear Disc Drum Front Kit 1, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - Classic Style w/ OE 2 Piston Rear Disc Disc Front Kit 1, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - Classic Style w/ OE Single Piston Rear Disc Disc Front Kit 1, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - New Style w/ Disc Rear Disc Disc Front Kit 1, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - New Style w/ Drum Rear Disc Drum Front Kit 1, 5, 3, 4
2007 GMC Yukon 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2007 GMC Yukon XL 1500 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2008 Cadillac Escalade 6 Lug - All (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Cadillac Escalade 6 Lug - All (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Cadillac Escalade ESV 6 Lug - All (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Cadillac Escalade ESV 6 Lug -All (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Cadillac Escalade EXT 6 Lug - All (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Cadillac Escalade EXT 6 Lug - All (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Avalanche 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Avalanche 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Avalanche 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Avalanche 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008-2010 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ Disc Rear, except Police Package Disc Disc Front Kit 1, 5, 3, 4
2008-2013 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ Drum Rear Disc Drum Front Kit 1, 5, 3, 4
2008-2010 Chevrolet Silverado 1500 Pickup 6 Lug - Police Package w/ Disc Rear Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Suburban 1500 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Suburban 1500 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Suburban 1500 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Suburban 1500 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Tahoe 6 Lug - All except Police (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Tahoe 6 Lug - All including Police (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Tahoe 6 Lug - Police package (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008-2010 GMC Sierra 1500 Pickup 6 Lug - All w/ Disc Rear, except Police Package Disc Disc Front Kit 1, 5, 3, 4
2008-2013 GMC Sierra 1500 Pickup 6 Lug - All w/ Drum Rear Disc Drum Front Kit 1, 5, 3, 4
2008-2010 GMC Sierra 1500 Pickup 6 Lug - Police Package w/ Disc Rear Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon XL 1500 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon XL 1500 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon XL 1500 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon XL 1500 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2009 Cadillac Escalade 6 Lug -All Disc Disc Front Kit 1, 5, 3, 4
2009 Cadillac Escalade ESV 6 Lug -All Disc Disc Front Kit 1, 5, 3, 4
2009 Cadillac Escalade EXT 6 Lug -All Disc Disc Front Kit 1, 5, 3, 4
2009 Chevrolet Avalanche 6 Lug -All Disc Disc Front Kit 1, 5, 3, 4
2009-2013 Chevrolet Suburban 1500 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2009-2013 Chevrolet Suburban 1500 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2009-2013 Chevrolet Tahoe 6 Lug - 4 x 2 All w/ Rear Disc Brake Disc Disc Front Kit 1, 5, 3, 4
2009-2013 Chevrolet Tahoe 6 Lug - 4 x 4 All w/ Rear Disc Brake Disc Disc Front Kit 1, 5, 3, 4
2009-2012 GMC Yukon 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2009-2011, 2013 GMC Yukon 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2009-2012 GMC Yukon XL 1500 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2009-2011, 2013 GMC Yukon XL 1500 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2010-2012 Cadillac Escalade 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2010-2011, 2013 Cadillac Escalade 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2010-2012 Cadillac Escalade ESV 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2010-2011, 2013 Cadillac Escalade ESV 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2010-2012 Cadillac Escalade EXT 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2010-2011, 2013 Cadillac Escalade EXT 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2010-2013 Chevrolet Avalanche 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2010-2013 Chevrolet Avalanche 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2011-2013 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ Rear Disc Brake Disc Disc Front Kit 1, 5, 3, 4
2011-2013 GMC Sierra 1500 Pickup 6 Lug - All w/ Rear Disc Brake Disc Disc Front Kit 1, 5, 3, 4
2014-2020 Cadillac Escalade Base Base Disc Disc Front Kit 1, 5, 3, 4
2014-2020 Cadillac Escalade Luxury Luxury Disc Disc Front Kit 1, 5, 3, 4
2014, 2016-2020 Cadillac Escalade Platinum Platinum Disc Disc Front Kit 1, 5, 3, 4
2014-2017 Cadillac Escalade Premium Premium Disc Disc Front Kit 1, 5, 3, 4
2014-2020 Cadillac Escalade ESV Base Base Disc Disc Front Kit 1, 5, 3, 4
2014-2020 Cadillac Escalade ESV Luxury Luxury Disc Disc Front Kit 1, 5, 3, 4
2014, 2016-2020 Cadillac Escalade ESV Platinum Platinum Disc Disc Front Kit 1, 5, 3, 4
2014-2017 Cadillac Escalade ESV Premium Premium Disc Disc Front Kit 1, 5, 3, 4
2014 Chevrolet Silverado 1500 Pickup 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2014 Chevrolet Suburban 1500 LS LS Disc Disc Front Kit 1, 5, 3, 4
2014 Chevrolet Suburban 1500 LT LT Disc Disc Front Kit 1, 5, 3, 4
2014 Chevrolet Suburban 1500 LTZ LTZ Disc Disc Front Kit 1, 5, 3, 4
2014-2020 Chevrolet Tahoe LS LS Disc Disc Front Kit 1, 5, 3, 4
2014-2020 Chevrolet Tahoe LT LT Disc Disc Front Kit 1, 5, 3, 4
2014-2016 Chevrolet Tahoe LTZ LTZ Disc Disc Front Kit 1, 5, 3, 4
2014 GMC Sierra 1500 Pickup 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2014-2020 GMC Yukon Denali Denali Disc Disc Front Kit 1, 5, 3, 4
2014-2020 GMC Yukon SLE SLE Disc Disc Front Kit 1, 5, 3, 4
2014-2020 GMC Yukon SLT SLT Disc Disc Front Kit 1, 5, 3, 4
2014 GMC Yukon XL 1500 Denali Denali Disc Disc Front Kit 1, 5, 3, 4
2014 GMC Yukon XL 1500 SLE SLE Disc Disc Front Kit 1, 5, 3, 4
2014 GMC Yukon XL 1500 SLT SLT Disc Disc Front Kit 1, 5, 3, 4
2015-2018 Chevrolet Silverado 1500 High Country High Country Disc Disc Front Kit 1, 5, 3, 4
2015-2018 Chevrolet Silverado 1500 LT LT Disc Disc Front Kit 1, 5, 3, 4
2015-2018 Chevrolet Silverado 1500 LTZ LTZ Disc Disc Front Kit 1, 5, 3, 4
2015-2018 Chevrolet Silverado 1500 WT WT Disc Disc Front Kit 1, 5, 3, 4
2015-2020 Chevrolet Suburban LS LS Disc Disc Front Kit 1, 5, 3, 4
2015-2020 Chevrolet Suburban LT LT Disc Disc Front Kit 1, 5, 3, 4
2015-2016 Chevrolet Suburban LTZ LTZ Disc Disc Front Kit 1, 5, 3, 4
2015-2018 GMC Sierra 1500 Base Base Disc Disc Front Kit 1, 5, 3, 4
2015-2018 GMC Sierra 1500 Denali Denali Disc Disc Front Kit 1, 5, 3, 4
2015-2018 GMC Sierra 1500 SLE SLE Disc Disc Front Kit 1, 5, 3, 4
2015-2018 GMC Sierra 1500 SLT SLT Disc Disc Front Kit 1, 5, 3, 4
2015-2020 GMC Yukon XL Denali Denali Disc Disc Front Kit 1, 5, 3, 4
2015-2020 GMC Yukon XL SLE SLE Disc Disc Front Kit 1, 5, 3, 4
2015-2020 GMC Yukon XL SLT SLT Disc Disc Front Kit 1, 5, 3, 4
2016-2018 Chevrolet Silverado 1500 LS LS Disc Disc Front Kit 1, 5, 3, 4
2016-2018 Chevrolet Silverado 1500 SSV SSV Disc Disc Front Kit 1, 5, 3, 4
2016-2020 Chevrolet Tahoe PPV PPV Disc Disc Front Kit 1, 5, 3, 4
2016-2020 Chevrolet Tahoe SSV SSV Disc Disc Front Kit 1, 5, 3, 4
2017-2018 Chevrolet Silverado 1500 Custom Custom Disc Disc Front Kit 1, 5, 3, 4
2017-2020 Chevrolet Suburban Premier Premier Disc Disc Front Kit 1, 5, 3, 4
2017-2020 Chevrolet Tahoe Premier Premier Disc Disc Front Kit 1, 5, 3, 4
2018-2020 Cadillac Escalade Premium Luxury Premium Luxury Disc Disc Front Kit 1, 5, 3, 4
2018-2020 Cadillac Escalade ESV Premium Luxury Premium Luxury Disc Disc Front Kit 1, 5, 3, 4
2019 Chevrolet Silverado 1500 LD LT LT Disc Disc Front Kit 1, 5, 3, 4
2019 Chevrolet Silverado 1500 LD WT WT Disc Disc Front Kit 1, 5, 3, 4
2019 GMC Sierra 1500 Limited Base Base Disc Disc Front Kit 1, 5, 3, 4
2019 GMC Sierra 1500 Limited SLE SLE Disc Disc Front Kit 1, 5, 3, 4
