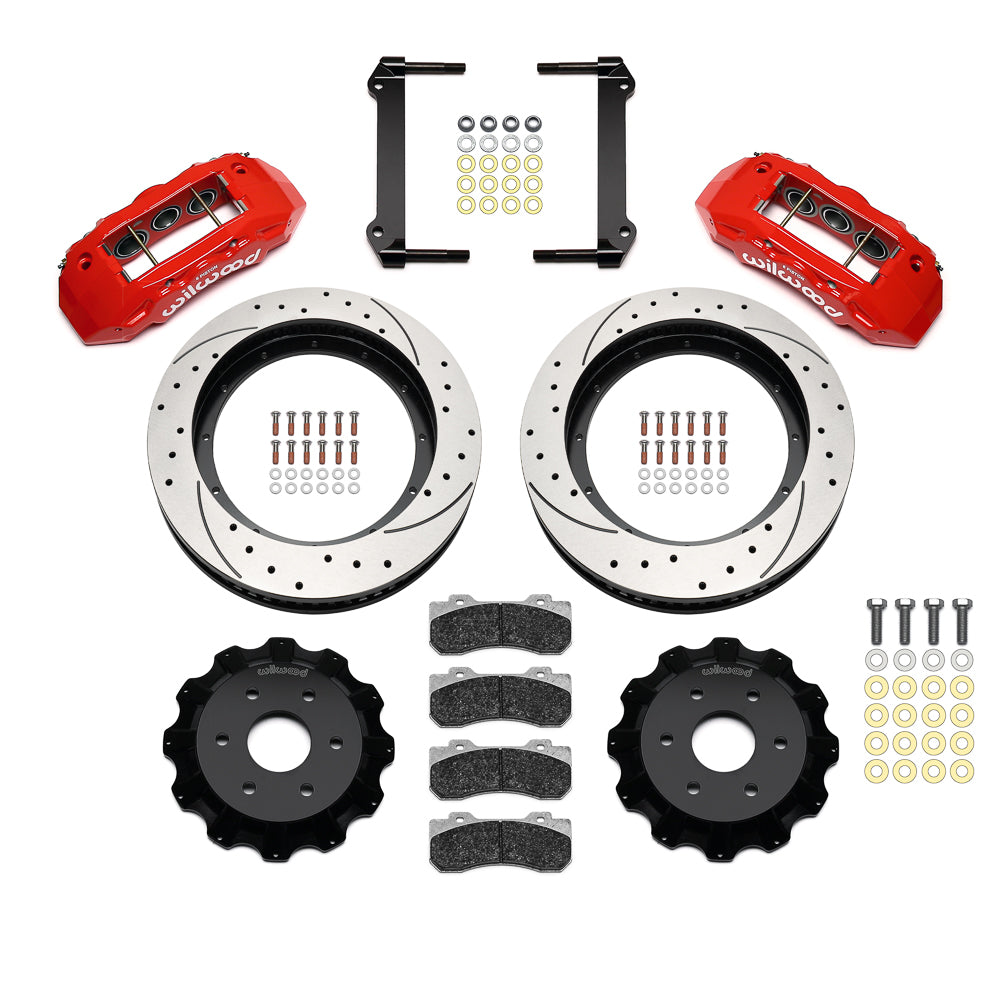

Wilwood red TX6R kit laid out with drilled-and-slotted rotor rings, separate hats, brake pads, brackets and hardware

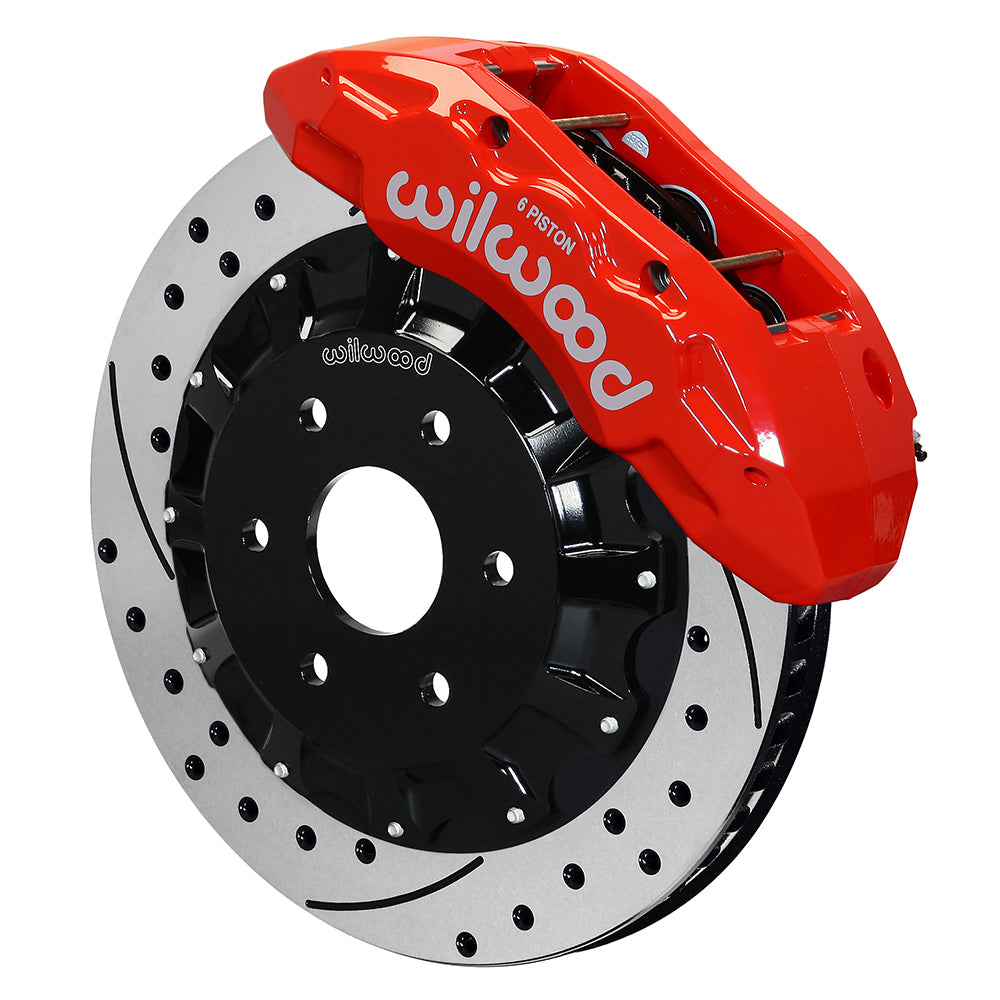

Wilwood red TX6R caliper over an assembled 16.00-inch drilled-and-slotted rotor and separate mounting hat
Wilwood red TX6R kit laid out with drilled-and-slotted rotor rings, separate hats, brake pads, brackets and hardware
Wilwood red TX6R caliper over an assembled 16.00-inch drilled-and-slotted rotor and separate mounting hat

Wilwood Front Red TX6R Six-Piston Conversion, Six-Lug GM Trucks/SUVs with 16-Inch Drilled Rotors — Selected 1999–2020 Applications

SKU: 140-13876-DR

$3,200.56 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red TX6R calipers clamp the 16-inch drilled-and-slotted rotors in this six-lug front kit. The original GM hub stays in place, making its register, wheel studs and wheel interior important installation checks. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.

Technical Details

  • Manufacturer: Wilwood
  • Manufacturer part number: 140-13876-DR
  • Kit classification: Front Brake Kits - Street Performance
  • Axle position: Front Kits
  • Brake Type: Disc
  • Selling unit: Sold as a kit.
  • Minimum wheel guidance (clearance drawing required): 20 in; 508 mm
  • Spindle Included: No
  • Mounting Hardware Included: Yes
  • Separate wheel hubs included: No
  • Pistons per service caliper: 6
  • Service-caliper piston construction: Stainless
  • Service-caliper mount: Radial
  • Caliper body construction: Forged aluminum
  • Caliper Color: Red
  • Caliper Finish: Red Powder Coat
  • Caliper Inlet Port Diameter: 1/8-27 NPT
  • Caliper family: TX6R
  • Pad compound: BP-22
  • Master Cylinder Included: No
  • Brake Booster Included: No
  • Brake Lines Included: No
  • Separately specified components: 220-8998; 220-10979
  • Rotor Outside Diameter: 16.00 in; 406.4 mm
  • Rotor Thickness: 1.38 in; 35.05 mm
  • Rotor Material: Iron
  • Surface Type: SRP Drilled & Slotted
  • Rotor construction: Vented
  • Bolt Circle Diameter: 6 X 5.5 in; 6 X 139.7 mm
  • Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
  • Rotor surface finish: Black Electro Coat
  • Hat material: Aluminum
  • Hat finish: Black E-Coat
  • Hat offset dimension: 0.810 in

Fitment & Compatibility

Confirm the exact six-lug GM year, body style, steering option and factory brake configuration in the table below. DS-1083 specifies separate flexlines 220-8998 for 1999–2006 or 220-10979 for 2007–2018; later listed vehicles require confirmation of the hose route and fittings. Iron/steel and aluminum spindles are listed, but the 16-inch package still requires a wheel-template check. Rear-brake option notes in the vehicle rows remain relevant to the exact application.

Listed models: Silverado 1500 Pickup; Sierra 1500 Pickup; Suburban 1500; Tahoe; Yukon; Yukon XL 1500; Escalade; Escalade EXT; Avalanche 1500; Escalade ESV; Avalanche; Silverado 1500; Suburban; Sierra 1500; Yukon XL; Silverado 1500 LD; Sierra 1500 Limited. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1999, 2001 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
1999, 2001 GMC Sierra 1500 Pickup 6 Lug - All w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2000 Chevrolet Silverado 1500 Pickup All w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2000-2001 Chevrolet Suburban 1500 6 Lug - All w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2000 Chevrolet Tahoe 6 Lug - New Style w/ OE HD 2 Pist Rear Disc Disc Front Kit 1, 2, 3, 4
2000 GMC Sierra 1500 Pickup All w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2000 GMC Yukon 6 Lug - except Denali w/ OE HD 2 Pist Rear Disc Disc Front Kit 1, 2, 3, 4
2000-2001 GMC Yukon XL 1500 6 Lug - All w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2001 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2001 Chevrolet Tahoe 6 Lug - All w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2001 Chevrolet Tahoe 6 Lug - All w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2001 GMC Sierra 1500 Pickup 6 Lug - All w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2001 GMC Yukon 6 Lug - All w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2001 GMC Yukon 6 Lug - All w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2005 Cadillac Escalade 6 Lug - 4 x 2 w/ 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2005 Cadillac Escalade 6 Lug - 4 x 2 w/ out 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2005 Cadillac Escalade 6 Lug - 4 x 4 w/ 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2005 Cadillac Escalade 6 Lug - 4 x 4 w/ out 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2004 Cadillac Escalade EXT 6 Lug - 4 x 2 w/ 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2004 Cadillac Escalade EXT 6 Lug - 4 x 2 w/ out 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2004 Cadillac Escalade EXT 6 Lug - 4 x 4 w/ 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2004 Cadillac Escalade EXT 6 Lug - 4 x 4 w/ out 4 Wheel Steering Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Avalanche 1500 6 Lug - 4 x 2 Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Avalanche 1500 6 Lug - 4 x 4 Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 2 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 2 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 4 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 4 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Suburban 1500 6 Lug - 4 x 2 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Suburban 1500 6 Lug - 4 x 4 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Tahoe 6 Lug - 4 x 2 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 Chevrolet Tahoe 6 Lug - 4 x 4 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 2 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 4 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Yukon 6 Lug - 4 x 2 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002 GMC Yukon 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Yukon 6 Lug - 4 x 4 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002 GMC Yukon 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Yukon XL 1500 6 Lug - 4 x 2 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2002-2006 GMC Yukon XL 1500 6 Lug - 4 x 4 w/ OE HD 2 Piston Rear Brake Disc Disc Front Kit 1, 2, 3, 4
2005-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 2 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4
2005-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 4 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4
2006 Cadillac Escalade 6 Lug - 4 x 2 Disc Disc Front Kit 1, 2, 3, 4
2006 Cadillac Escalade 6 Lug - 4 x 4 Disc Disc Front Kit 1, 2, 3, 4
2007 Cadillac Escalade 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2007 Cadillac Escalade ESV 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2007 Cadillac Escalade EXT 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Avalanche 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Silverado 1500 Pickup 6 Lug - Classic Style w/ Drum Rear Disc Drum Front Kit 1, 5, 3, 4
2007 Chevrolet Silverado 1500 Pickup 6 Lug - Classic Style w/ OE 2 Piston Rear Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Silverado 1500 Pickup 6 Lug - Classic Style w/ OE Single Piston Rear Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Silverado 1500 Pickup 6 Lug - New Style w/ Disc Rear Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Silverado 1500 Pickup 6 Lug - New Style w/ Drum Rear Disc Drum Front Kit 1, 5, 3, 4
2007 Chevrolet Suburban 1500 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Tahoe 6 Lug - All execpt Police Disc Disc Front Kit 1, 5, 3, 4
2007 Chevrolet Tahoe 6 Lug - Police package Disc Disc Front Kit 1, 6, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - Classic Style w/ Drum Rear Disc Drum Front Kit 1, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - Classic Style w/ OE 2 Piston Rear Disc Disc Front Kit 1, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - Classic Style w/ OE Single Piston Rear Disc Disc Front Kit 1, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - New Style w/ Disc Rear Disc Disc Front Kit 1, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - New Style w/ Drum Rear Disc Drum Front Kit 1, 5, 3, 4
2007 GMC Yukon 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2007 GMC Yukon XL 1500 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2008 Cadillac Escalade 6 Lug - All (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Cadillac Escalade 6 Lug - All (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Cadillac Escalade ESV 6 Lug - All (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Cadillac Escalade ESV 6 Lug -All (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Cadillac Escalade EXT 6 Lug - All (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Cadillac Escalade EXT 6 Lug - All (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Avalanche 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Avalanche 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Avalanche 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Avalanche 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008-2010 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ Disc Rear, except Police Package Disc Disc Front Kit 1, 5, 3, 4
2008-2013 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ Drum Rear Disc Drum Front Kit 1, 5, 3, 4
2008-2010 Chevrolet Silverado 1500 Pickup 6 Lug - Police Package w/ Disc Rear Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Suburban 1500 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Suburban 1500 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Suburban 1500 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Suburban 1500 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Tahoe 6 Lug - All except Police (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Tahoe 6 Lug - All including Police (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 Chevrolet Tahoe 6 Lug - Police package (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008-2010 GMC Sierra 1500 Pickup 6 Lug - All w/ Disc Rear, except Police Package Disc Disc Front Kit 1, 5, 3, 4
2008-2013 GMC Sierra 1500 Pickup 6 Lug - All w/ Drum Rear Disc Drum Front Kit 1, 5, 3, 4
2008-2010 GMC Sierra 1500 Pickup 6 Lug - Police Package w/ Disc Rear Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon XL 1500 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon XL 1500 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon XL 1500 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2008 GMC Yukon XL 1500 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Front Kit 1, 5, 3, 4
2009 Cadillac Escalade 6 Lug -All Disc Disc Front Kit 1, 5, 3, 4
2009 Cadillac Escalade ESV 6 Lug -All Disc Disc Front Kit 1, 5, 3, 4
2009 Cadillac Escalade EXT 6 Lug -All Disc Disc Front Kit 1, 5, 3, 4
2009 Chevrolet Avalanche 6 Lug -All Disc Disc Front Kit 1, 5, 3, 4
2009-2013 Chevrolet Suburban 1500 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2009-2013 Chevrolet Suburban 1500 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2009-2013 Chevrolet Tahoe 6 Lug - 4 x 2 All w/ Rear Disc Brake Disc Disc Front Kit 1, 5, 3, 4
2009-2013 Chevrolet Tahoe 6 Lug - 4 x 4 All w/ Rear Disc Brake Disc Disc Front Kit 1, 5, 3, 4
2009-2012 GMC Yukon 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2009-2011, 2013 GMC Yukon 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2009-2012 GMC Yukon XL 1500 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2009-2011, 2013 GMC Yukon XL 1500 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2010-2012 Cadillac Escalade 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2010-2011, 2013 Cadillac Escalade 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2010-2012 Cadillac Escalade ESV 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2010-2011, 2013 Cadillac Escalade ESV 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2010-2012 Cadillac Escalade EXT 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2010-2011, 2013 Cadillac Escalade EXT 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2010-2013 Chevrolet Avalanche 6 Lug - 4 x 2 Disc Disc Front Kit 1, 5, 3, 4
2010-2013 Chevrolet Avalanche 6 Lug - 4 x 4 Disc Disc Front Kit 1, 5, 3, 4
2011-2013 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ Rear Disc Brake Disc Disc Front Kit 1, 5, 3, 4
2011-2013 GMC Sierra 1500 Pickup 6 Lug - All w/ Rear Disc Brake Disc Disc Front Kit 1, 5, 3, 4
2014-2020 Cadillac Escalade Base Base Disc Disc Front Kit 1, 5, 3, 4
2014-2020 Cadillac Escalade Luxury Luxury Disc Disc Front Kit 1, 5, 3, 4
2014, 2016-2020 Cadillac Escalade Platinum Platinum Disc Disc Front Kit 1, 5, 3, 4
2014-2017 Cadillac Escalade Premium Premium Disc Disc Front Kit 1, 5, 3, 4
2014-2020 Cadillac Escalade ESV Base Base Disc Disc Front Kit 1, 5, 3, 4
2014-2020 Cadillac Escalade ESV Luxury Luxury Disc Disc Front Kit 1, 5, 3, 4
2014, 2016-2020 Cadillac Escalade ESV Platinum Platinum Disc Disc Front Kit 1, 5, 3, 4
2014-2017 Cadillac Escalade ESV Premium Premium Disc Disc Front Kit 1, 5, 3, 4
2014 Chevrolet Silverado 1500 Pickup 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2014 Chevrolet Suburban 1500 LS LS Disc Disc Front Kit 1, 5, 3, 4
2014 Chevrolet Suburban 1500 LT LT Disc Disc Front Kit 1, 5, 3, 4
2014 Chevrolet Suburban 1500 LTZ LTZ Disc Disc Front Kit 1, 5, 3, 4
2014-2020 Chevrolet Tahoe LS LS Disc Disc Front Kit 1, 5, 3, 4
2014-2020 Chevrolet Tahoe LT LT Disc Disc Front Kit 1, 5, 3, 4
2014-2016 Chevrolet Tahoe LTZ LTZ Disc Disc Front Kit 1, 5, 3, 4
2014 GMC Sierra 1500 Pickup 6 Lug - All Disc Disc Front Kit 1, 5, 3, 4
2014-2020 GMC Yukon Denali Denali Disc Disc Front Kit 1, 5, 3, 4
2014-2020 GMC Yukon SLE SLE Disc Disc Front Kit 1, 5, 3, 4
2014-2020 GMC Yukon SLT SLT Disc Disc Front Kit 1, 5, 3, 4
2014 GMC Yukon XL 1500 Denali Denali Disc Disc Front Kit 1, 5, 3, 4
2014 GMC Yukon XL 1500 SLE SLE Disc Disc Front Kit 1, 5, 3, 4
2014 GMC Yukon XL 1500 SLT SLT Disc Disc Front Kit 1, 5, 3, 4
2015-2018 Chevrolet Silverado 1500 High Country High Country Disc Disc Front Kit 1, 5, 3, 4
2015-2018 Chevrolet Silverado 1500 LT LT Disc Disc Front Kit 1, 5, 3, 4
2015-2018 Chevrolet Silverado 1500 LTZ LTZ Disc Disc Front Kit 1, 5, 3, 4
2015-2018 Chevrolet Silverado 1500 WT WT Disc Disc Front Kit 1, 5, 3, 4
2015-2020 Chevrolet Suburban LS LS Disc Disc Front Kit 1, 5, 3, 4
2015-2020 Chevrolet Suburban LT LT Disc Disc Front Kit 1, 5, 3, 4
2015-2016 Chevrolet Suburban LTZ LTZ Disc Disc Front Kit 1, 5, 3, 4
2015-2018 GMC Sierra 1500 Base Base Disc Disc Front Kit 1, 5, 3, 4
2015-2018 GMC Sierra 1500 Denali Denali Disc Disc Front Kit 1, 5, 3, 4
2015-2018 GMC Sierra 1500 SLE SLE Disc Disc Front Kit 1, 5, 3, 4
2015-2018 GMC Sierra 1500 SLT SLT Disc Disc Front Kit 1, 5, 3, 4
2015-2020 GMC Yukon XL Denali Denali Disc Disc Front Kit 1, 5, 3, 4
2015-2020 GMC Yukon XL SLE SLE Disc Disc Front Kit 1, 5, 3, 4
2015-2020 GMC Yukon XL SLT SLT Disc Disc Front Kit 1, 5, 3, 4
2016-2018 Chevrolet Silverado 1500 LS LS Disc Disc Front Kit 1, 5, 3, 4
2016-2018 Chevrolet Silverado 1500 SSV SSV Disc Disc Front Kit 1, 5, 3, 4
2016-2020 Chevrolet Tahoe PPV PPV Disc Disc Front Kit 1, 5, 3, 4
2016-2020 Chevrolet Tahoe SSV SSV Disc Disc Front Kit 1, 5, 3, 4
2017-2018 Chevrolet Silverado 1500 Custom Custom Disc Disc Front Kit 1, 5, 3, 4
2017-2020 Chevrolet Suburban Premier Premier Disc Disc Front Kit 1, 5, 3, 4
2017-2020 Chevrolet Tahoe Premier Premier Disc Disc Front Kit 1, 5, 3, 4
2018-2020 Cadillac Escalade Premium Luxury Premium Luxury Disc Disc Front Kit 1, 5, 3, 4
2018-2020 Cadillac Escalade ESV Premium Luxury Premium Luxury Disc Disc Front Kit 1, 5, 3, 4
2019 Chevrolet Silverado 1500 LD LT LT Disc Disc Front Kit 1, 5, 3, 4
2019 Chevrolet Silverado 1500 LD WT WT Disc Disc Front Kit 1, 5, 3, 4
2019 GMC Sierra 1500 Limited Base Base Disc Disc Front Kit 1, 5, 3, 4
2019 GMC Sierra 1500 Limited SLE SLE Disc Disc Front Kit 1, 5, 3, 4
