Wilwood Front TX6R Brake Kit, 15-Inch Slotted Rotors and Black Calipers for 2011–2019 GM HD Trucks/SUVs

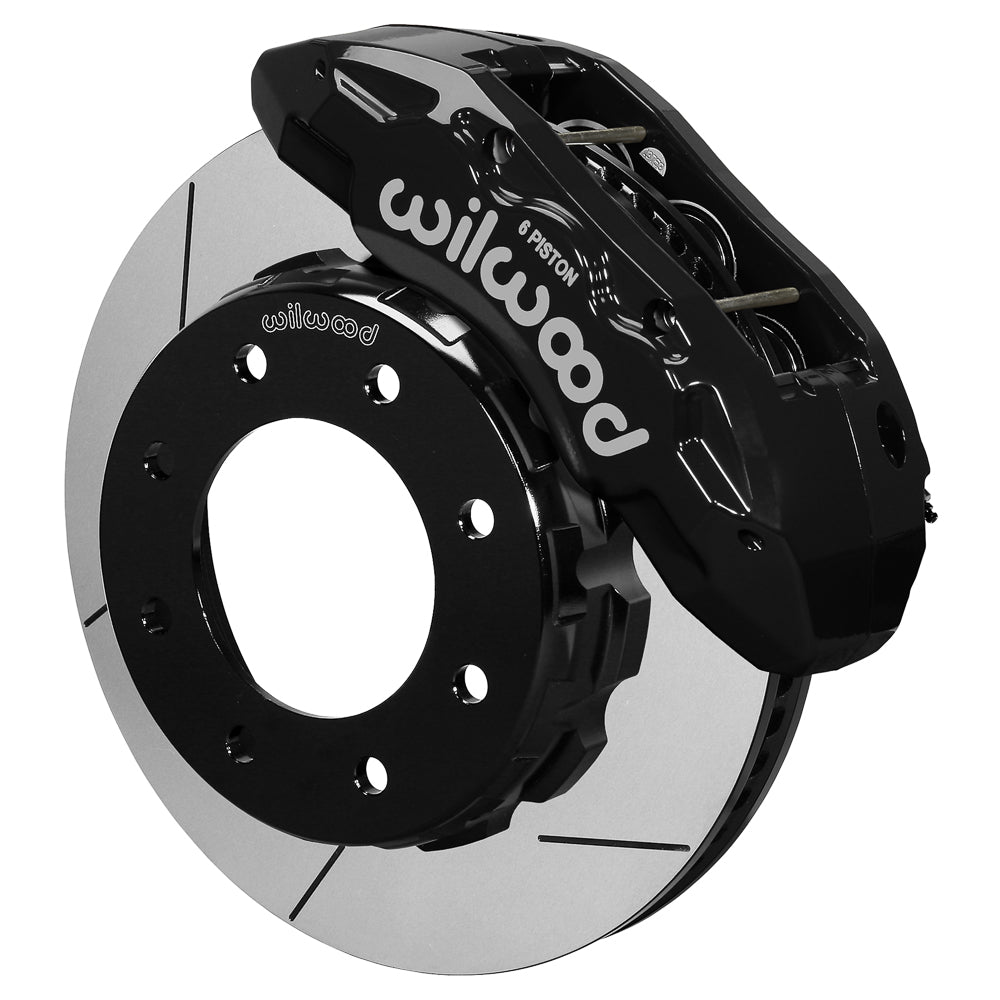

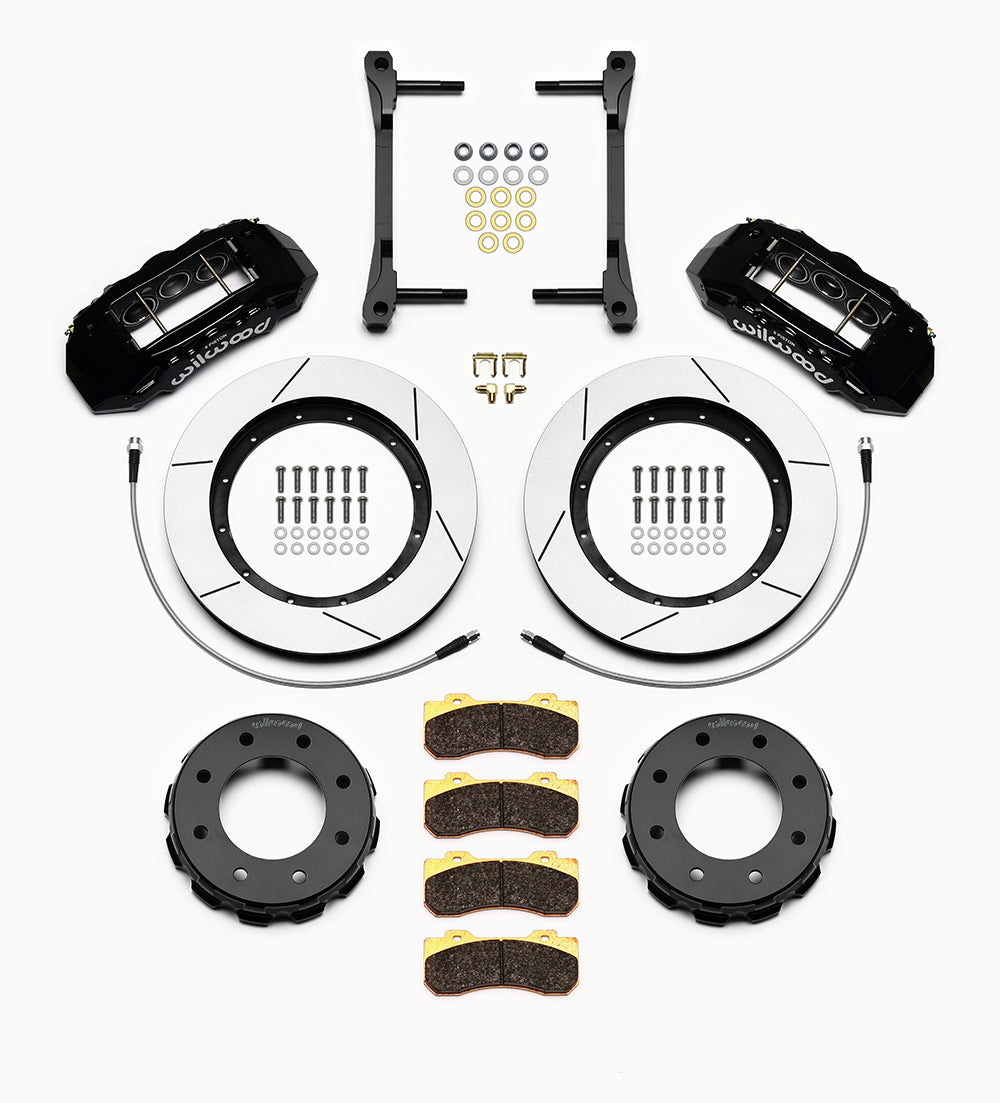

Black six-piston TX6R calipers work with 15.00-inch slotted rotors in this front conversion for the specified GM HD trucks and SUVs. The included braided hoses complete the listed hydraulic connection package. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-13873
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: TX6R
• Pad compound: BP-22
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.50 in; 38.1 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 8 x 7.09 in; 8 x 180.09 mm
• Catalog stud / mounting-hole reference: 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.920 in
• Minimum wheel guidance (clearance drawing required): 20 in; 508 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes

Fitment & Compatibility

Use the individual year, model and wheel-configuration entries below: the 2500 HD, 3500 HD and Suburban 3500 HD listings do not all share the same production range. Wilwood permits the specified iron/steel or aluminum spindle, but hub pilot, eight-lug pattern and wheel clearance still need checking. DS-1085 identifies front flexline kit 220-10979 as included; confirm its length, fittings and routing on the actual vehicle.

Listed models: Silverado 2500 HD; Silverado 3500 HD Pickup; Sierra 2500 HD; Sierra 3500 HD Pickup; Silverado 3500 HD; Sierra 3500 HD; Suburban 3500 HD. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
