Wilwood Front TX6R Brake Kit for Selected Ford F-250/F-350 Super Duty 4WD SRW Trucks (2005–2012), Black Calipers and 16-Inch GT Rotors

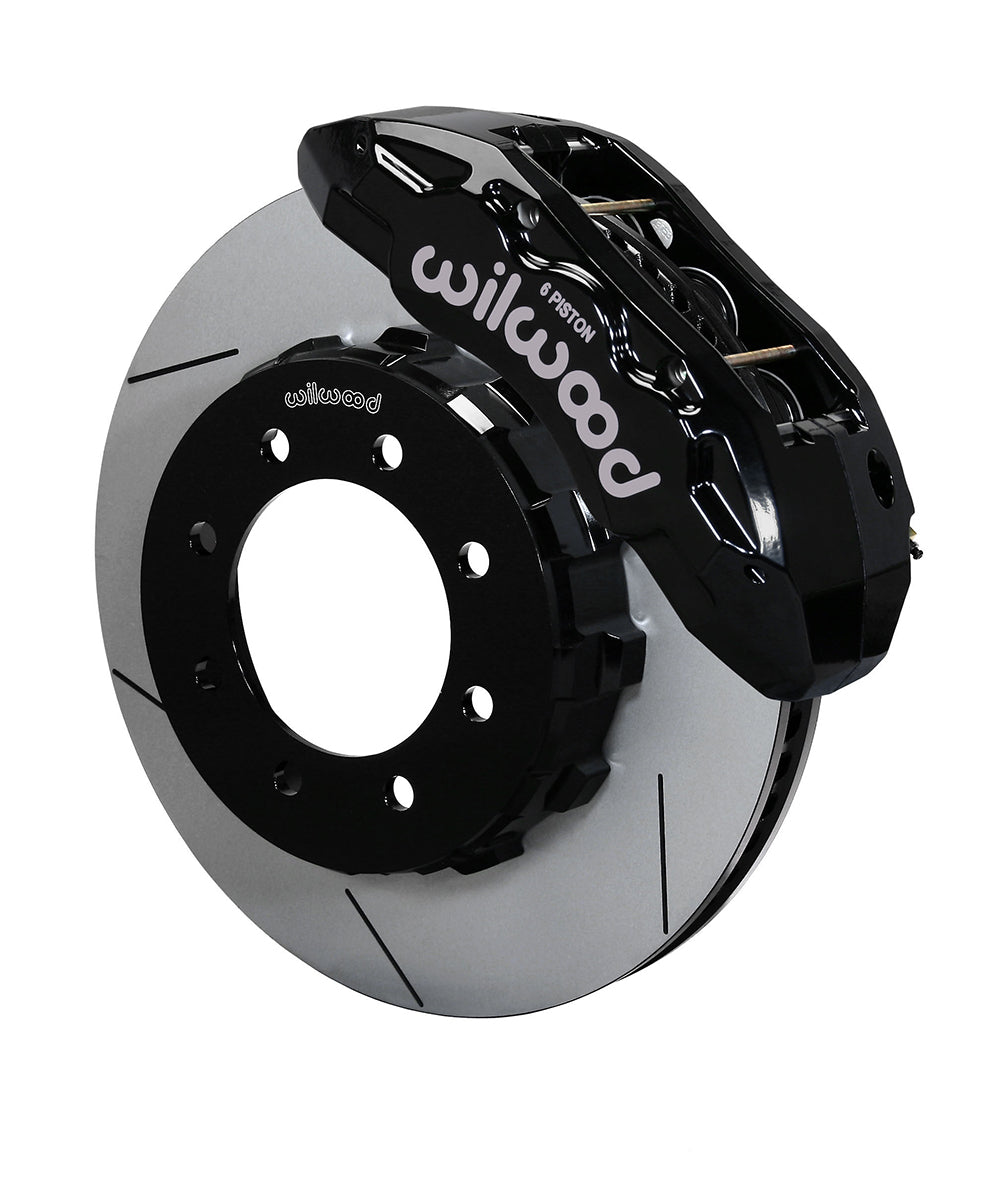

The black TX6R front package is specified for the documented four-wheel-drive Super Duty trucks with single rear wheels. Six-piston calipers operate 16-inch GT rotor rings on aluminum hats, retaining the matched factory hub and requiring a separately selected front line kit. The manufacturer, Wilwood Engineering, was founded in 1977 by Bill Wood and is based in Camarillo, California. Its design and manufacturing work covers disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized installations each require the individual parts to suit the complete brake system.

Technical Details

• Calipers: 6 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: TX6R. Brake-pad compound: BP-22.

• Rotor: 16.00 in; 406.4 mm outside diameter; 1.50 in; 38.1 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: GT Slotted.
• Rotor-hat material: Aluminum. Hat offset: 1.920 inches; this hat dimension is separate from axle offset.
• Rotor surface finish: Black Electro Coat.

• Wheel interface: 8 x 6.692 in; 8 x 169.98 mm. Rotor/hat wheel-stud clearance: 0.640 in; 16.26 mm.
• Nominal minimum wheel diameter: 20 in; 508 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.

• Manufacturer: Wilwood; manufacturer part number: 140-13867. Supplied quantity: Sold as a kit.
• Application category: Front Brake Kits - Street Performance. Axle/spindle category: Front Kits. Brake function: Disc.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.

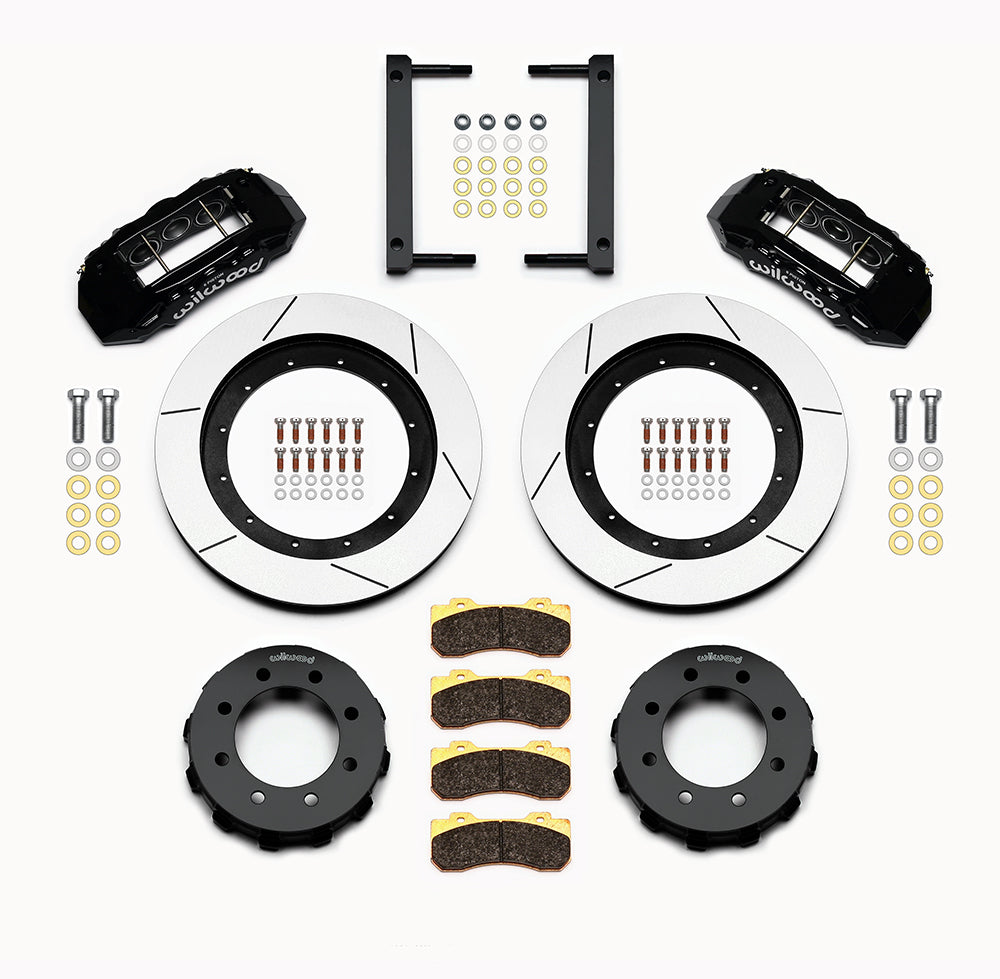

• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
• Additional installation parts: 220-14111; 220-14112.

Fitment & Compatibility

Verify the exact F-250/F-350 Super Duty application and SRW configuration below. The manufacturer's 2012 F-350 build-date entries need confirmation for the actual vehicle. DS1120 specifies separate hose sets for 2005–2010 and 2011–2012; check chassis fittings and the complete wheel diagram.

Use only the documented four-wheel-drive, single-rear-wheel F-250/F-350 Super Duty arrangement. Confirm the exact trim, brake package and production-date split. The 2012 F-350 entries contain inconsistent January/December build-date limits, so a vehicle in that gap needs individual confirmation before purchase.

Flexlines are not included. DS1120 identifies front kit 220-14111 for 2005–2010 and 220-14112 for 2011–2012.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions
