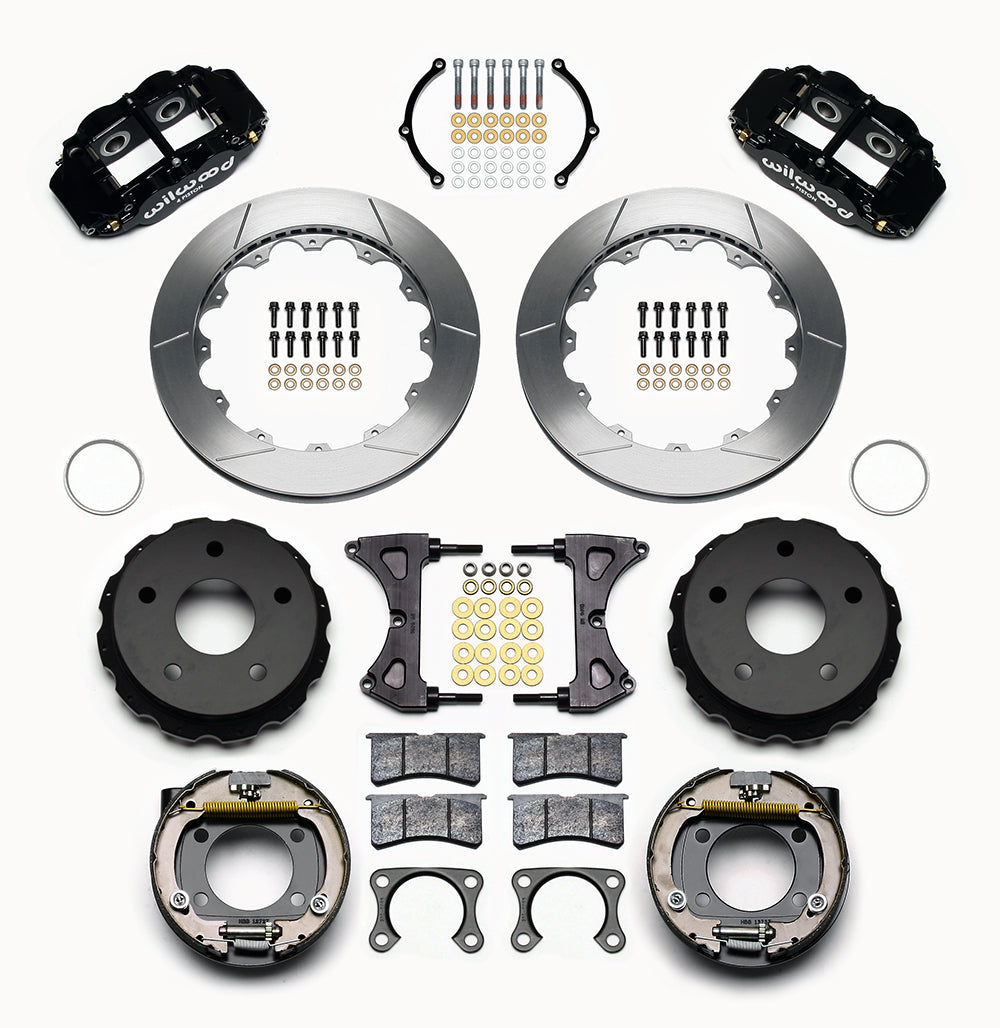

Wilwood Bronco 2.00-inch-offset rear Superlite brake kit laid out with black calipers, slotted rotors, internal parking-shoe assemblies and mounting parts

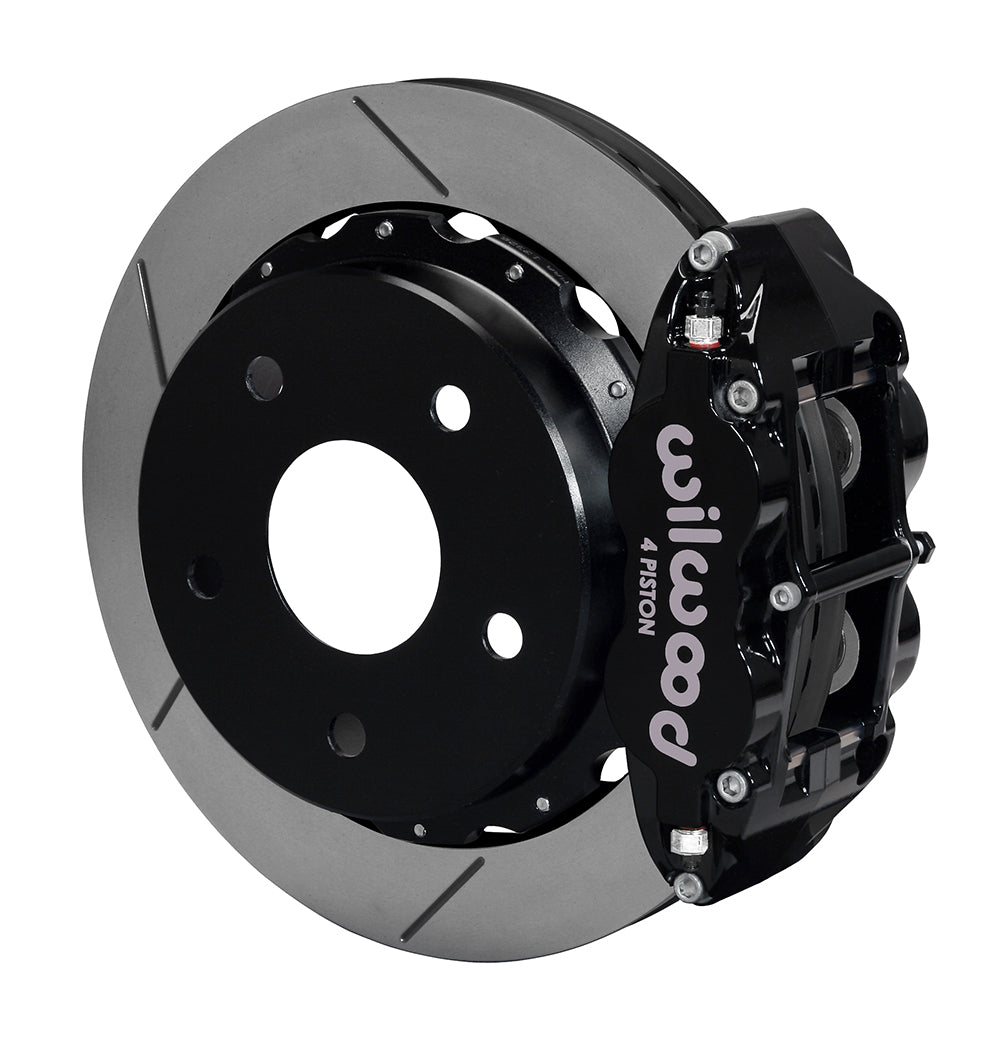

Wilwood Bronco 2.00-inch-offset rear Superlite brake kit assembly example, showing a black caliper positioned over the slotted rotor and mounting hat
Wilwood Bronco 2.00-inch-offset rear Superlite brake kit laid out with black calipers, slotted rotors, internal parking-shoe assemblies and mounting parts
Wilwood Bronco 2.00-inch-offset rear Superlite brake kit assembly example, showing a black caliper positioned over the slotted rotor and mounting hat

Wilwood Rear Superlite 4R Parking-Brake Package, Black Calipers and 12.88-Inch GT Rotors, Bronco Big Ford Ends with 2.00-Inch Offset

SKU: 140-13734

$2,299.11 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This 12.88-inch Superlite rear conversion is the Big Ford Bronco version with 2.00 inches of axle offset. Black four-piston calipers operate the GT rotor rings, while the iron hats and internal shoes provide a separate mechanical parking system. Camarillo, California is the home of Wilwood Engineering, the disc brake systems and components manufacturer founded by Bill Wood in 1977. It designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The requirements of the complete brake system determine which individual components are appropriate.

Technical Details

  • Manufacturer: Wilwood; manufacturer part number: 140-13734. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Wheel interface: 5 x 5.5 in; 5 x 139.7 mm. Rotor/hat wheel-stud clearance: 0.640 in; 16.26 mm.
  • Nominal minimum wheel diameter: 17 in; 431.8 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: Big Ford Bronco. Flange/axle offset: 2.00 in; 50.8 mm.
  • Calipers: 4 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Forged Narrow Superlite 4R. Brake-pad compound: BP-10.
  • Rotor: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: GT Slotted.
  • Rotor-hat material: Iron. Hat offset: 1.540 inches; this hat dimension is separate from axle offset.
  • Rotor surface finish: Black Electro Coat.

Fitment & Compatibility

Compare the housing end, bearing size and offset with DS1065. Do not substitute the New Style 2.36-inch kit for this configuration. Verify 5x5.50 wheel fit and the full 17-inch wheel diagram, then supply appropriate hoses and parking cable/clevis connections.
