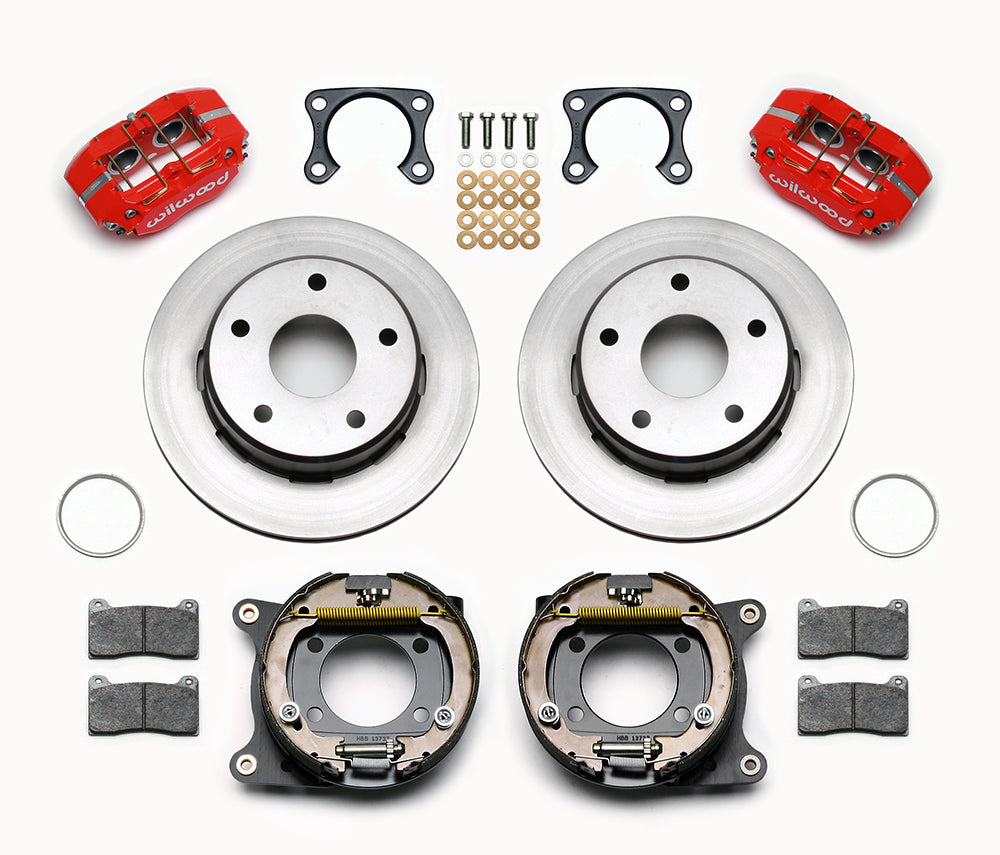

Wilwood Bronco 2.00-inch-offset rear Dynapro brake kit laid out with red calipers, plain-face rotors, internal parking-shoe assemblies and mounting parts

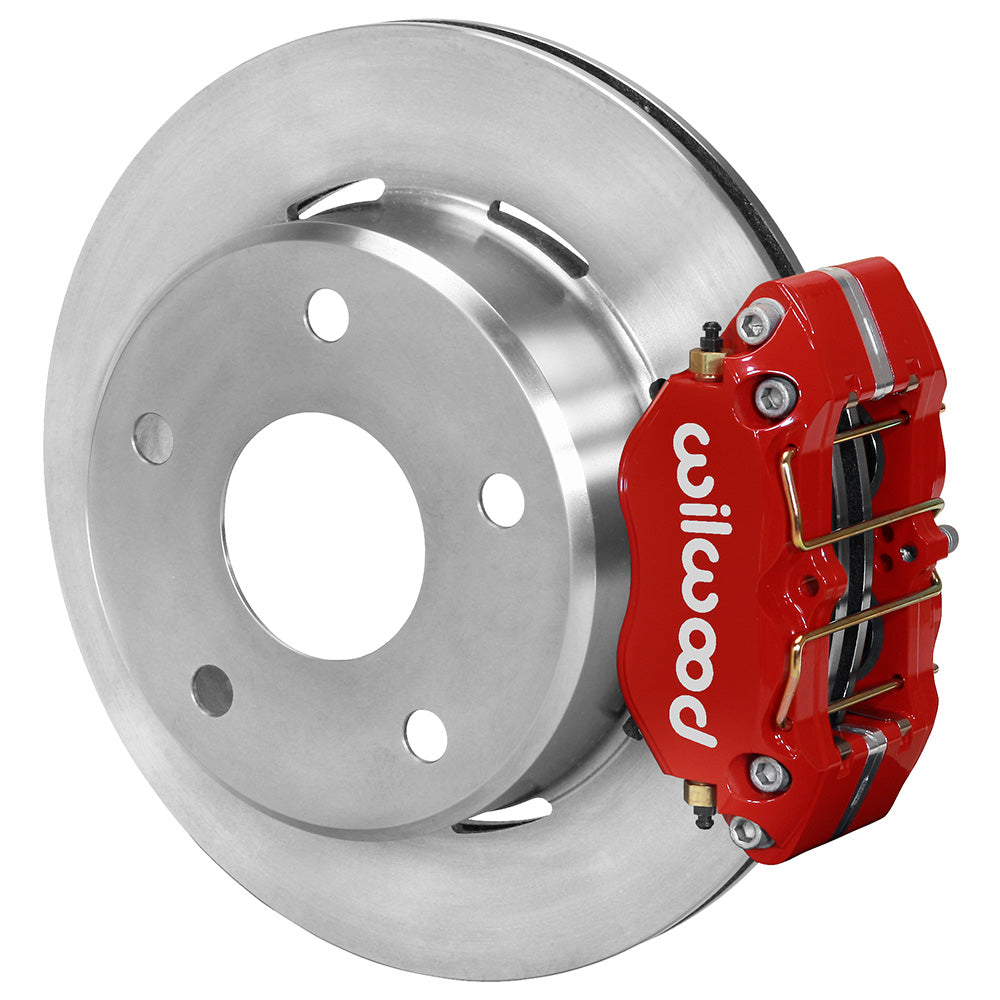

Wilwood Bronco 2.00-inch-offset rear Dynapro brake kit assembly example, showing a red caliper positioned over the plain-face rotor and mounting hat
Wilwood Bronco 2.00-inch-offset rear Dynapro brake kit laid out with red calipers, plain-face rotors, internal parking-shoe assemblies and mounting parts
Wilwood Bronco 2.00-inch-offset rear Dynapro brake kit assembly example, showing a red caliper positioned over the plain-face rotor and mounting hat

Wilwood Plain-Rotor Rear Disc/Parking Package with Red Dynapro Calipers, Bronco Big Ford Flange and 2.00-Inch Axle Offset

SKU: 140-13733-R

$1,298.94 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The red plain-face kit converts the matched Big Ford Bronco axle to four-piston service brakes with internal mechanical parking shoes. Its iron drum/rotors and caliper mounting package use the 2.00-inch offset rather than the New Style Bronco dimension. Bill Wood established Wilwood Engineering in 1977; the company is based in Camarillo, California. Its disc brake design and manufacturing range covers calipers, rotors, master cylinders, valves, fittings and brake lines, as well as complete systems. Those products serve motorsport, street-performance and specialized applications, with the individual components selected to match the braking system as a whole.

Technical Details

  • Wheel interface: 5 x 5.5 in; 5 x 139.7 mm. Rotor/hat wheel-stud clearance: 0.64 in; 16.26 mm.
  • Nominal minimum wheel diameter: 15 in; 381 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: Big Ford Bronco. Flange/axle offset: 2.00 in; 50.8 mm.
  • Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Dynapro Lug Mount. Brake-pad compound: BP-10.
  • Manufacturer: Wilwood; manufacturer part number: 140-13733-R. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Rotor: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness. Material: Iron. Construction: Vented. Friction-face style: Plain Face.
  • Rotor surface finish: Plain.

Fitment & Compatibility

Identify the actual Big Ford housing end and bearing, then measure the 2.00-inch axle offset. Confirm the 5x5.50 wheel pattern and compare wheel barrel/spokes with DS1064. Hoses and the control cable/clevis arrangement for the parking brake are additional installation parts.
