Wilwood Black Dynapro Low-Profile Rear Parking-Brake Kit, Plain 11-Inch Rotors, Ford 8.8 Special Ends with 2.50-Inch Axle Offset

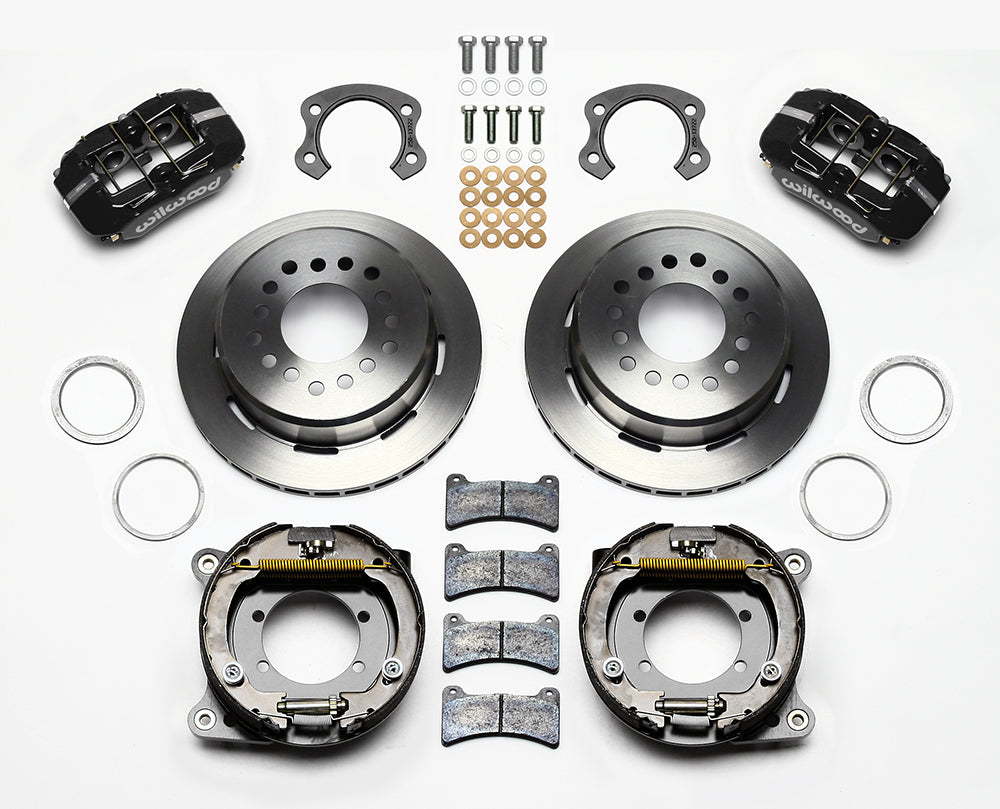

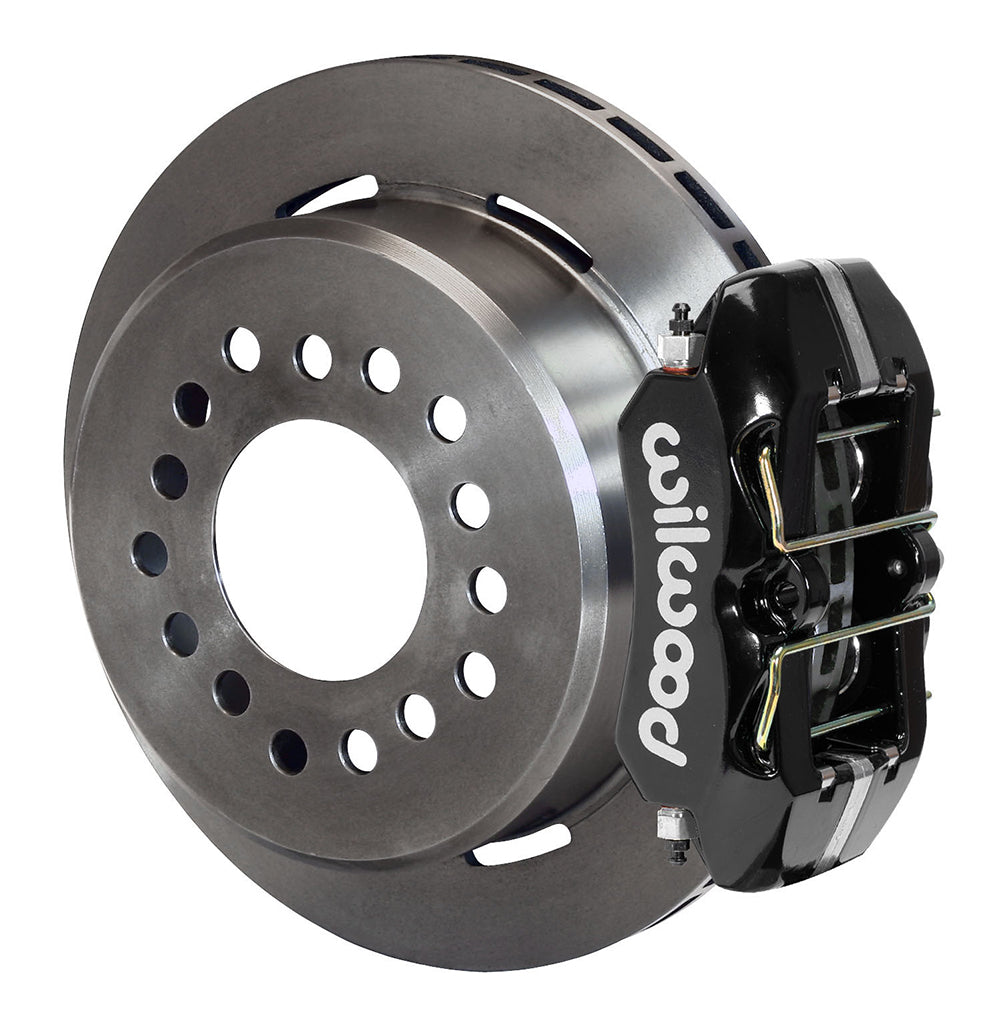

This compact Ford 8.8 Special rear package uses black Dynapro Low-Profile calipers with 11-inch iron drum/rotors. Internal parking shoes supply the mechanical holding function, while the smaller rotor/caliper envelope addresses installations with limited wheel space. Wilwood Engineering's product range serves motorsport, street-performance and specialized brake applications. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings and brake lines. Individual components must be selected to match the complete system rather than by appearance alone.

Technical Details

• Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: Forged Dynapro Low Profile. Brake-pad compound: BP-10.

• Rotor: 11.00 in; 279.4 mm outside diameter; 0.81 in; 20.57 mm thickness. Material: Iron. Construction: Vented. Friction-face style: Plain Face.
• Rotor surface finish: Plain.

• Manufacturer: Wilwood; manufacturer part number: 140-13724. Supplied quantity: Sold as a kit.
• Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
• Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.

• Wheel interface: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm. Rotor/hat wheel-stud clearance: 0.52 in; 13.21 mm.
• Nominal minimum wheel diameter: 14 in; 355.6 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
• Housing/spindle flange: 8.8 Ford Special. Flange/axle offset: 2.50 in; 63.5 mm.

Fitment & Compatibility

Verify the exact Special housing-end pattern and 2.50-inch axle offset in DS1060. Do not select solely by the 8.8 axle name. The 14-inch wheel figure is conditional on the clearance drawing, and hoses plus the parking cable/clevis connection are additional parts.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions
• Technical bulletin

For help matching the conversion to your existing hardware, contact PMB Performance with the vehicle details and the relevant measurements. Our parts and fitment work draws on over 20 years of experience.
