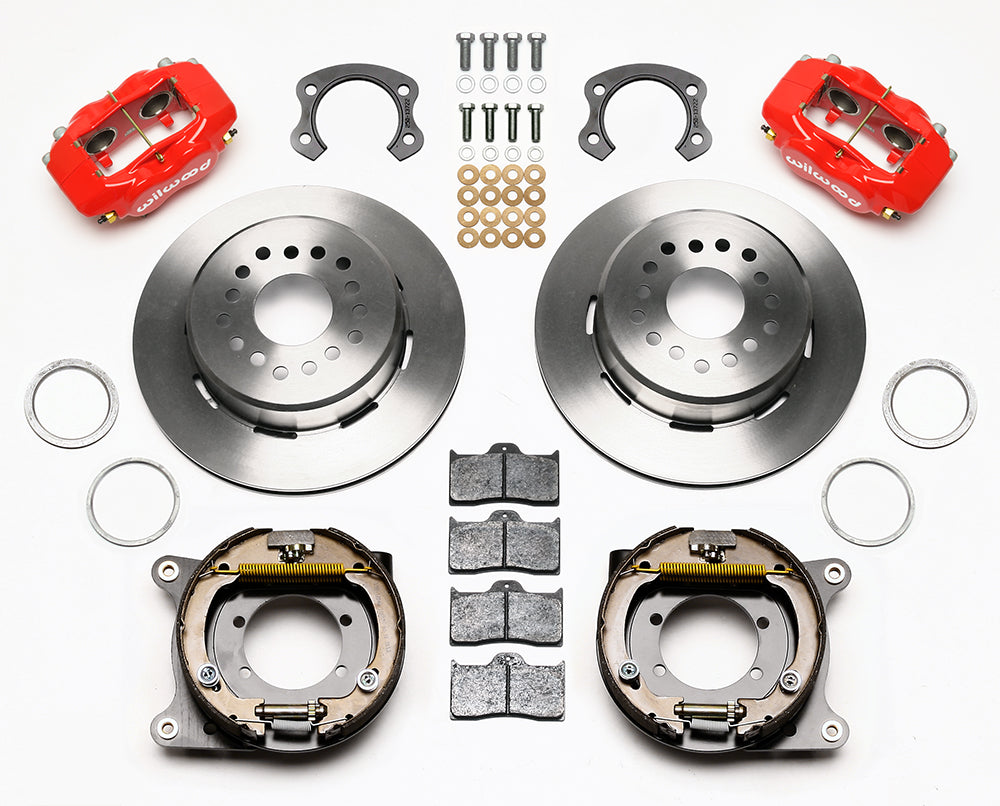

Wilwood Ford 8.8 Special rear Dynalite brake kit laid out with red calipers, plain-face rotors, internal parking-shoe assemblies and mounting parts

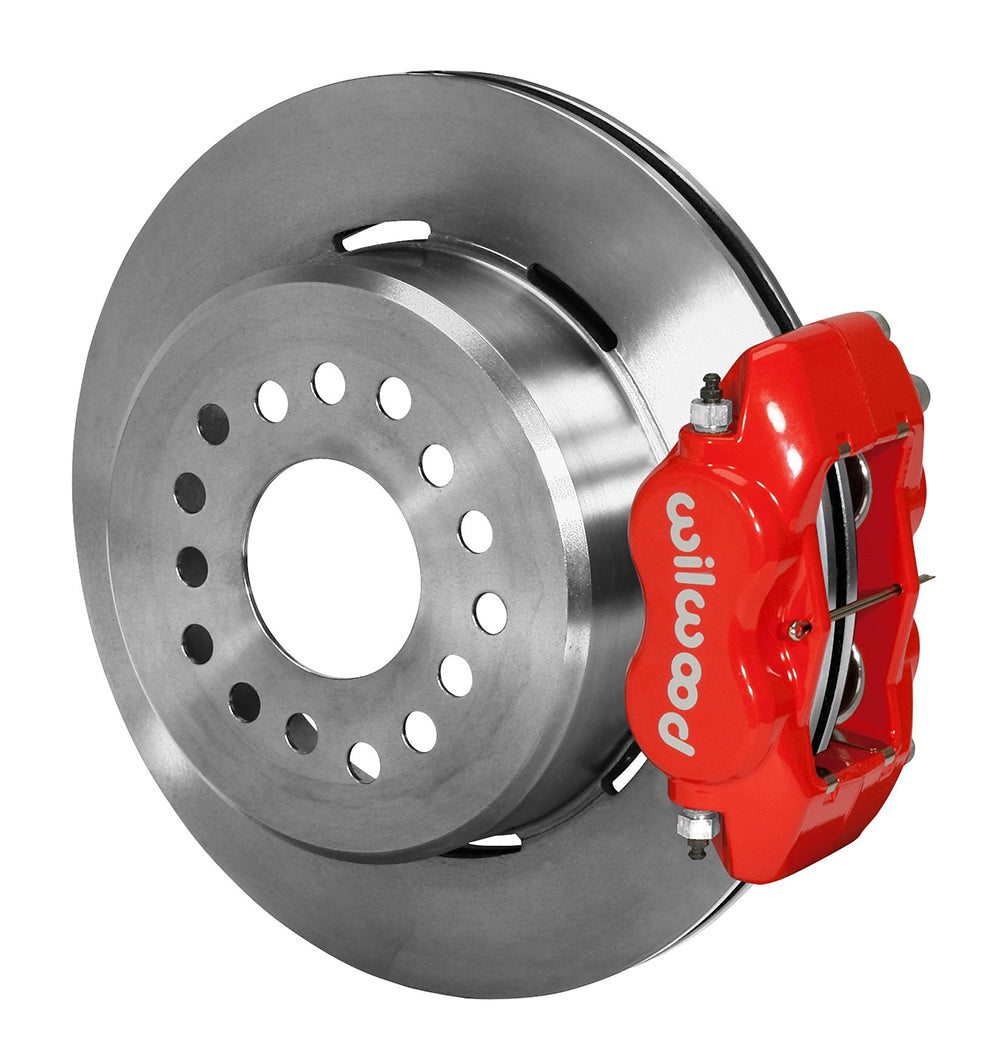

Wilwood Ford 8.8 Special rear Dynalite brake kit assembly example, showing a red caliper positioned over the plain-face rotor and mounting hat
Wilwood Ford 8.8 Special rear Dynalite brake kit laid out with red calipers, plain-face rotors, internal parking-shoe assemblies and mounting parts
Wilwood Ford 8.8 Special rear Dynalite brake kit assembly example, showing a red caliper positioned over the plain-face rotor and mounting hat

Wilwood Plain-Face Rear Disc/Parking Kit with Red Dynalite Calipers, Ford 8.8 Special Housing Ends and 2.50-Inch Axle Offset

SKU: 140-13719-R

$1,132.36 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The red plain-face configuration supplies Dynalite Internal calipers, 12.19-inch iron drum/rotors and mechanical parking shoes. It is an axle-end conversion whose bracket position is determined by the specified 2.50-inch offset, not simply the Ford differential size. Camarillo, California is the home of Wilwood Engineering, the disc brake systems and components manufacturer founded by Bill Wood in 1977. It designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The requirements of the complete brake system determine which individual components are appropriate.

Technical Details

  • Rotor: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness. Material: Iron. Construction: Vented. Friction-face style: Plain Face.
  • Rotor surface finish: Plain.
  • Manufacturer: Wilwood; manufacturer part number: 140-13719-R. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Wheel interface: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm. Rotor/hat wheel-stud clearance: 0.52 in; 13.21 mm.
  • Nominal minimum wheel diameter: 15 in; 381 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: 8.8 Ford Special. Flange/axle offset: 2.50 in; 63.5 mm.
  • Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Forged Dynalite Internal. Brake-pad compound: BP-10.

Fitment & Compatibility

Use DS1059 and the worksheet to confirm the 8.8 Ford Special flange and offset. Verify wheel pattern, stud clearance and caliper-to-wheel space. Complete the installation with appropriate flexlines and a separate cable/clevis arrangement for the mechanical parking brake.
