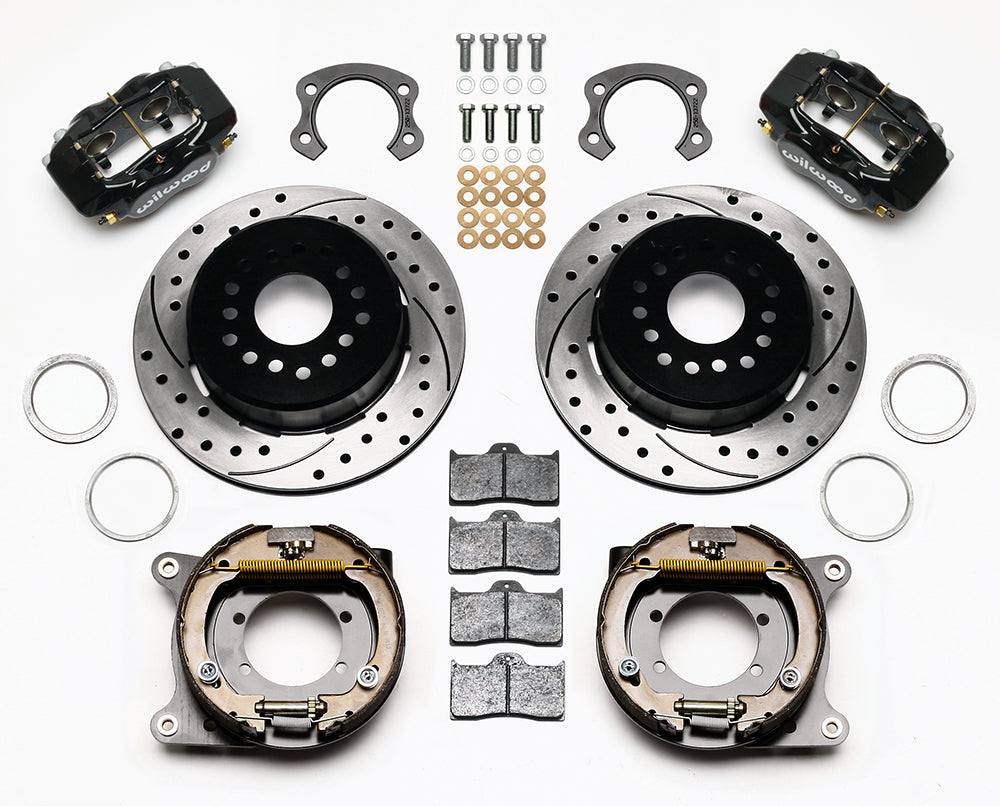

Wilwood Ford 8.8 Special rear Dynalite brake kit laid out with black calipers, drilled and slotted rotors, internal parking-shoe assemblies and mounting parts

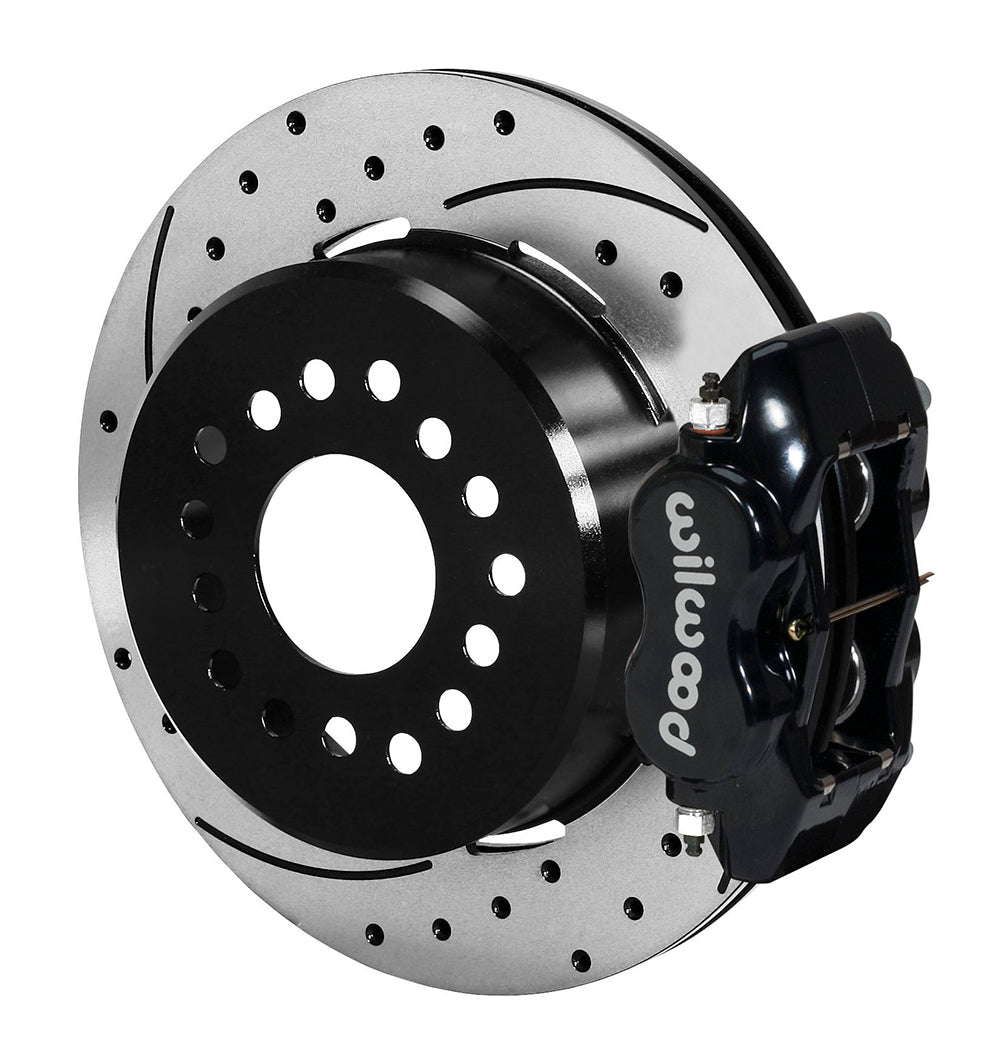

Wilwood Ford 8.8 Special rear Dynalite brake kit assembly example, showing a black caliper positioned over the drilled and slotted rotor and mounting hat
Wilwood Ford 8.8 Special rear Dynalite brake kit laid out with black calipers, drilled and slotted rotors, internal parking-shoe assemblies and mounting parts
Wilwood Ford 8.8 Special rear Dynalite brake kit assembly example, showing a black caliper positioned over the drilled and slotted rotor and mounting hat

Wilwood Drilled 12.19-Inch Rear Brake and Parking Conversion for Ford 8.8 Special Housing Ends, Black Calipers and 2.50-Inch Axle Offset

SKU: 140-13719-D

$1,274.68 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This version replaces the plain drum/rotors with drilled-and-slotted iron assemblies while retaining black Dynalite calipers. The service-brake and internal parking components are supplied for the measured Special housing-end configuration and its 2.50-inch axle offset. For this conversion, component matching remains essential. Its manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems for motorsport, street-performance and specialized applications; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines selected to work within a complete system.

Technical Details

  • Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Forged Dynalite Internal. Brake-pad compound: BP-10.
  • Wheel interface: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm. Rotor/hat wheel-stud clearance: 0.52 in; 13.21 mm.
  • Nominal minimum wheel diameter: 15 in; 381 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: 8.8 Ford Special. Flange/axle offset: 2.50 in; 63.5 mm.
  • Manufacturer: Wilwood; manufacturer part number: 140-13719-D. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Rotor: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness. Material: Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
  • Rotor surface finish: Black Electro Coat.

Fitment & Compatibility

Compare the housing flange and axle offset with DS1059 and the measurement worksheet. Shared Ford 8.8 ring-gear dimensions do not make different housing ends interchangeable. Check the wheel outline and obtain the separate flexible lines and mechanical control-cable parts.
