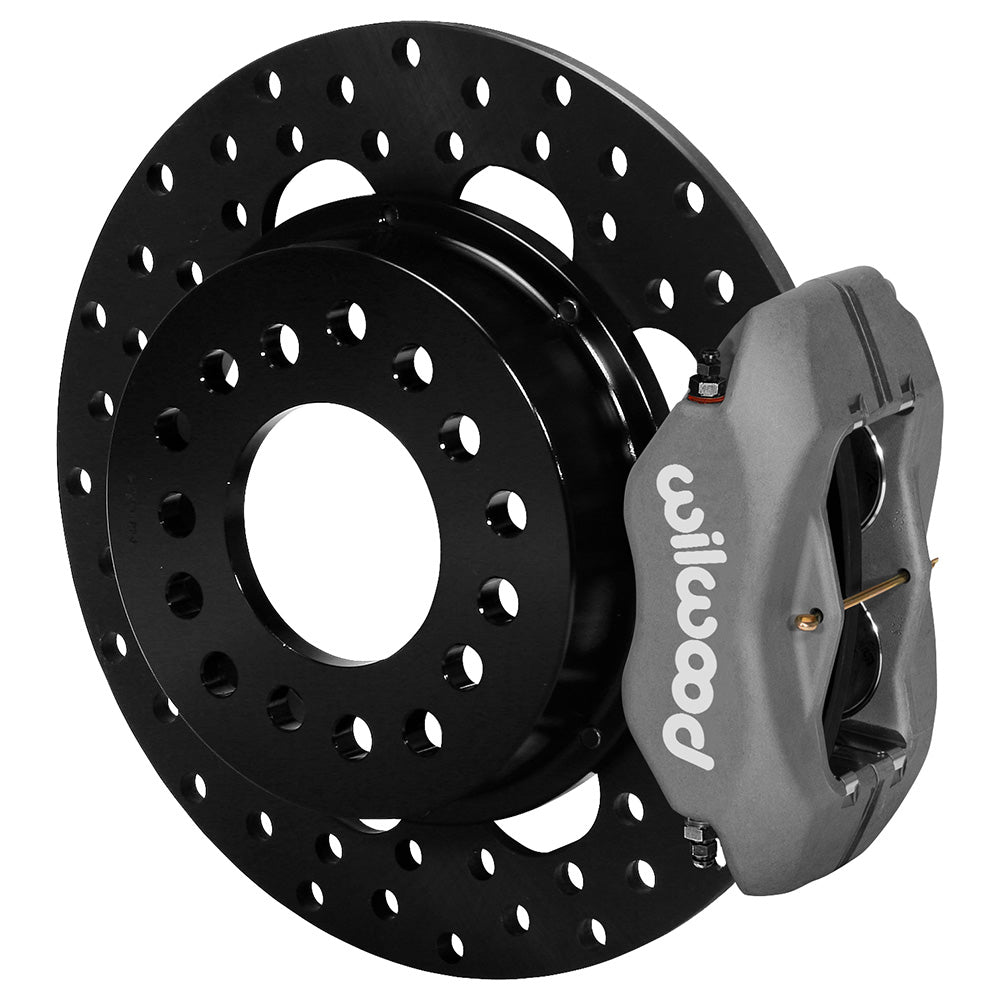

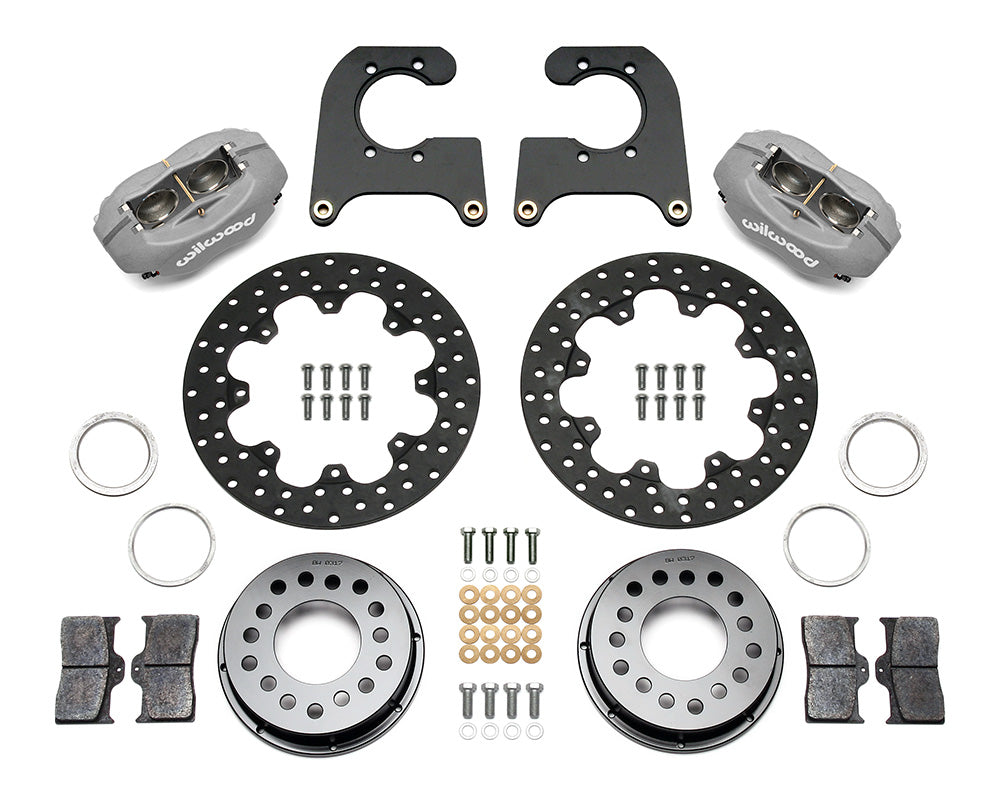

Wilwood Rear Dynalite Drag Racing Brake Kit for Ford 8.8 Special Axle Ends, 2.50-Inch Offset, Anodized Calipers and Drilled 11.44-Inch Steel Rotors

This rear drag-racing package uses drilled solid steel rotors and anodized four-piston Dynalite Internal calipers. It is intended for the specified Ford 8.8 Special housing end and vehicles up to the listed 2800-pound limit, with the rotor rings mounted to separate aluminum hats. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems and their components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications. Compatibility depends on choosing those parts around the complete braking system.

Technical Details

• Manufacturer: Wilwood; manufacturer part number: 140-13716-D. Supplied quantity: Sold as a kit.
• Application category: Rear Brake Kits - Drag Race. Axle/spindle category: Rear Kits. Brake function: Disc.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
• Use restriction: For Drag applications up to 2800 lbs
• For drag-racing vehicles up to 2,800 lb. No parking-brake assembly is supplied; the complete vehicle must have the required four-wheel braking system.

• Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Anodize. Finish: Type III Anodize. Inlet thread: 1/8-27 NPT.
• Caliper family: Forged Dynalite Internal. Brake-pad compound: BP-10.

• Rotor: 11.44 in; 290.58 mm outside diameter; 0.35 in; 8.89 mm thickness. Material: Steel. Construction: Solid. Friction-face style: Drilled.
• Rotor-hat material: Aluminum. Hat offset: 1.590 inches; this hat dimension is separate from axle offset.
• Rotor surface finish: Black Oxide.

• Wheel interface: 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm; 5 X 5 in; 5 X 127 mm. Rotor/hat wheel-stud clearance: 0.520 in; 13.21 mm.
• Nominal minimum wheel diameter: 15 in; 381 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
• Housing/spindle flange: 8.8 Ford Special. Flange/axle offset: 2.50 in; 63.5 mm.

Fitment & Compatibility

Measure the Special housing end and 2.50-inch axle offset against DS1061. A standard Ford 8.8 designation does not establish the correct end or axle retention. Confirm full four-wheel disc-brake operation and race-wheel clearance; the kit supplies no parking brake or flexlines.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions
• Technical bulletin

Ask PMB Performance for assistance if the installed hardware differs from the documented application. With over 20 years of parts and fitment experience, we can help identify the measurements needed to check the conversion.
