Wilwood Red AERO4 Rear Brake Package with Drilled Rotors for Chevrolet Corvette C7, 14.25-Inch Rings and OE Parking-Brake Hats (2014–2019)

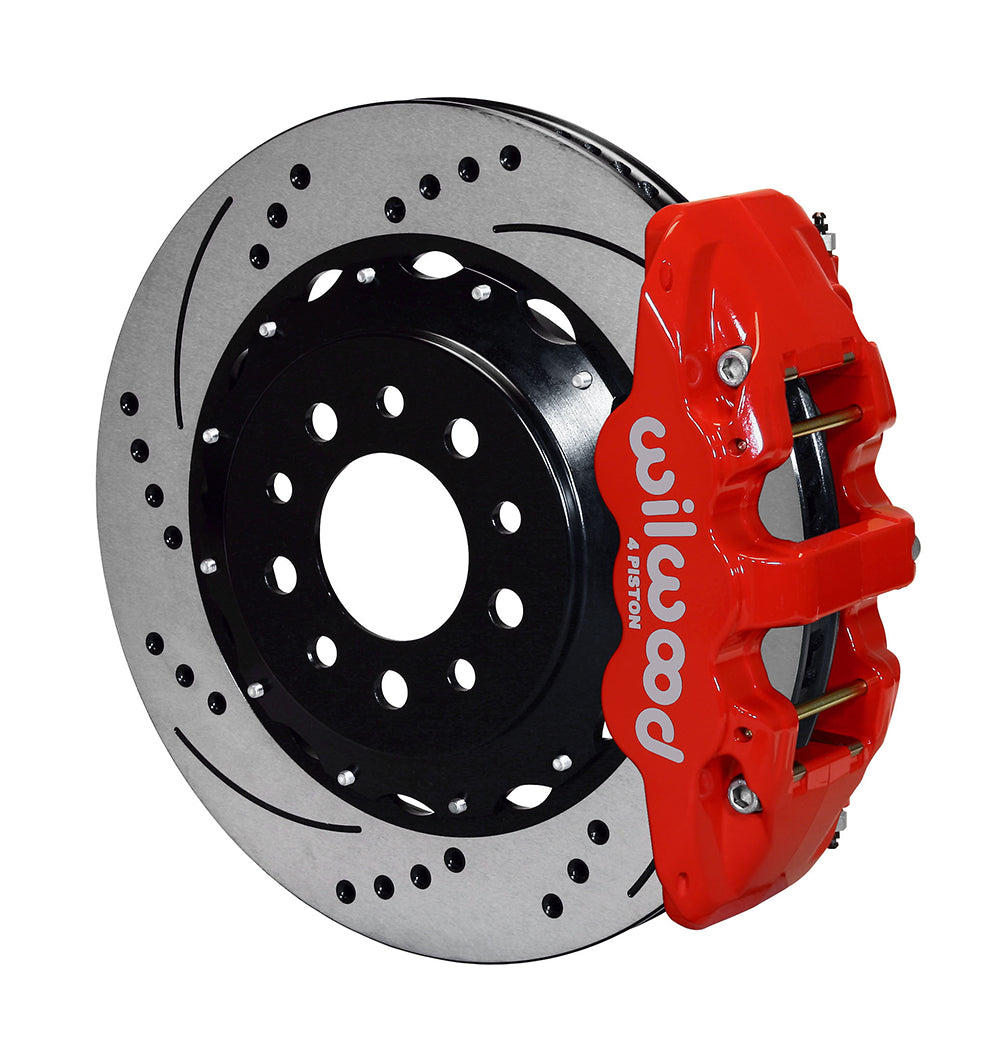

Red AERO4 calipers operate drilled-and-slotted 14.25-inch rotor rings in this C7 rear conversion. The iron hats work with the matched original parking-shoe assembly, keeping the mechanical parking function separate from the four-piston service calipers. Based in Camarillo, California, Wilwood Engineering was established by Bill Wood in 1977. It designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings and brake lines. That range serves motorsport, street-performance and specialized applications; the individual parts must be matched to the requirements of the complete braking assembly.

Technical Details

• Rotor: 14.25 in; 361.95 mm outside diameter; 1.10 in; 27.94 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
• Rotor-hat material: Iron. Hat offset: 0.730 inches; this hat dimension is separate from axle offset.
• Rotor surface finish: Black Electro Coat.

• Wheel interface: 5 X 4.75 in; 5 X 120.65 mm; 5 X 4.72 in; 5 X 119.89 mm; 5 X 4.5 in; 5 X 114.3 mm. Rotor/hat wheel-stud clearance: 0.520 in; 13.21 mm; 0.640 in; 16.26 mm.
• Nominal minimum wheel diameter: 18 in; 457.2 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
• Housing/spindle flange: OEM. Flange/axle offset: 0.00 in; 0 mm.

• Calipers: 4 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: AERO4. Brake-pad compound: BP-10.

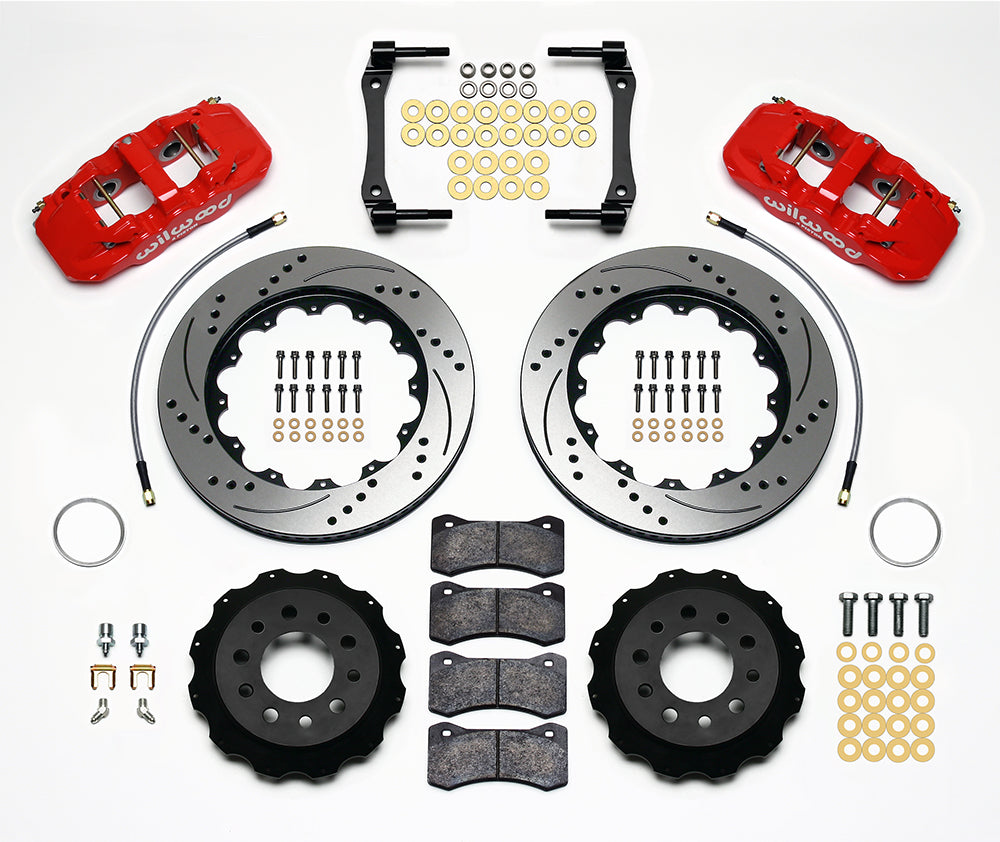

• Manufacturer: Wilwood; manufacturer part number: 140-13698-DR. Supplied quantity: Sold as a kit.
• Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: Yes; matched line kit 220-9101, 16.00 inches nominal length.
• The rotor hats retain the specified original mechanical parking-brake shoes and assembly; a replacement parking-brake mechanism is not supplied.

Fitment & Compatibility

Review the listed Stingray, Z51, Z06, Grand Sport and ZR1 years and verify the installed parking-brake/hub arrangement. Check the DS1067 backing-plate and wheel-clearance instructions, then route the supplied rear flexlines without interference or strain.

The application includes specified Stingray, Z51, Z06, Grand Sport and ZR1 rows within 2014–2019; verify each trim's individual year range and original brake equipment. A shared C7 body designation does not establish compatibility with every factory brake package.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.
