Wilwood Red AERO6 Front Brake Package for Chevrolet Corvette C7, Drilled 14.25-Inch Rotors and Hoses for Listed 2014–2019 Applications

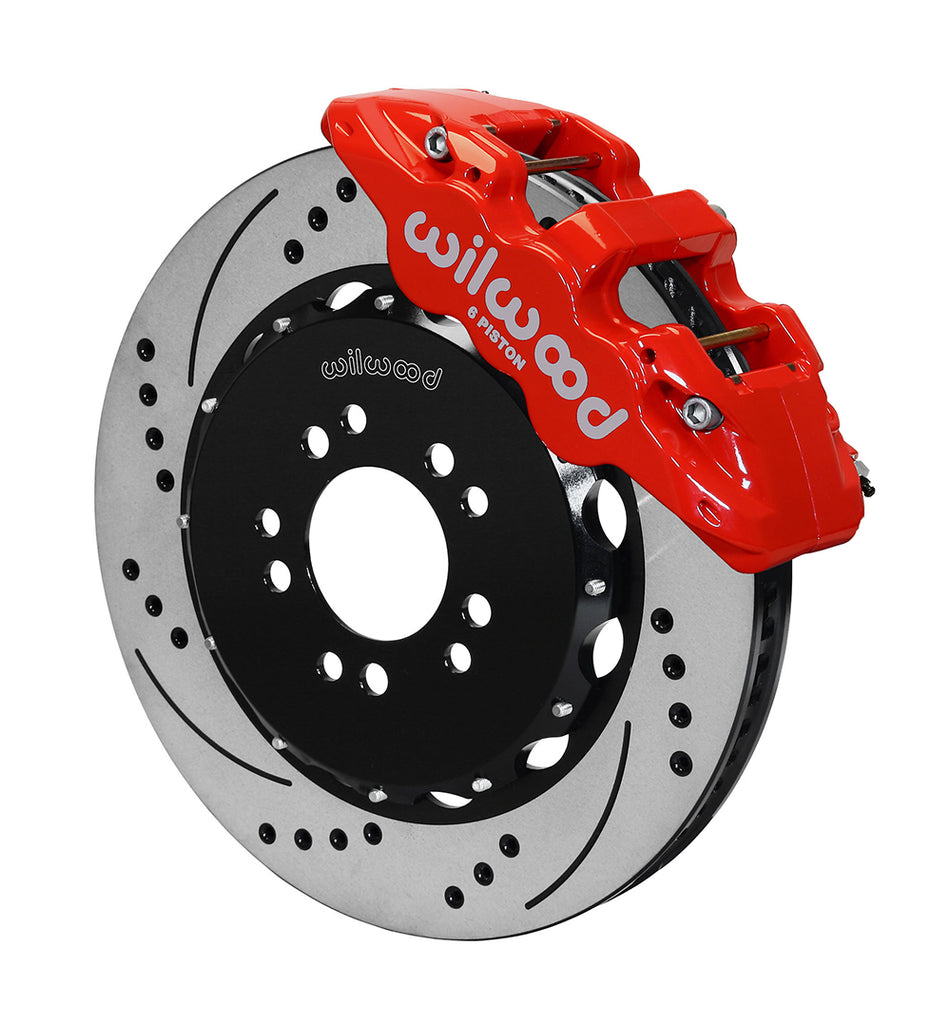

Red powder-coated AERO6 calipers clamp the drilled-and-slotted rotor rings in this Corvette front package. The 14.25-inch rotor/hat assemblies use the specified factory hubs, with six-piston hydraulic sizing and the included lines matched to the documented conversion. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It develops disc brake systems and components, designing and manufacturing calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. A correct conversion matches those individual components to the complete braking system.

Technical Details

• Rotor: 14.25 in; 361.95 mm outside diameter; 1.25 in; 31.75 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
• Rotor-hat material: Aluminum. Hat offset: 0.540 inches; this hat dimension is separate from axle offset.
• Rotor surface finish: Black Electro Coat.

• Manufacturer: Wilwood; manufacturer part number: 140-13697-DR. Supplied quantity: Sold as a kit.
• Application category: Front Brake Kits - Street Performance. Axle/spindle category: Front Kits. Brake function: Disc.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.

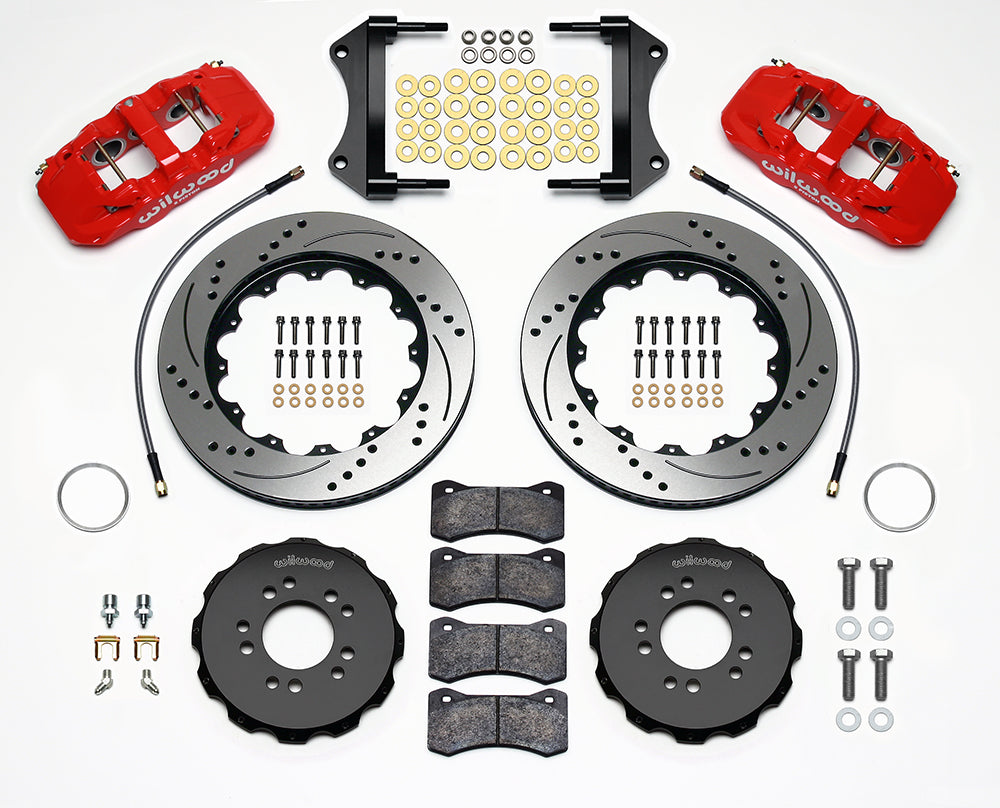

• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: Yes; matched line kit 220-9100, 18.00 inches nominal length.

• Calipers: 6 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: AERO6. Brake-pad compound: BP-10.

• Wheel interface: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm. Rotor/hat wheel-stud clearance: 0.580 in; 14.73 mm; 0.520 in; 13.21 mm.
• Nominal minimum wheel diameter: 18 in; 457.2 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.

Fitment & Compatibility

Identify the exact Corvette version and installed brake equipment from the rows below. Use DS1066 for the hub interface, assembly and wheel-clearance check. Confirm hose clearance through steering travel and do not infer fit from the C7 designation alone.

The application includes specified Stingray, Z51, Z06, Grand Sport and ZR1 rows within 2014–2019; verify each trim's individual year range and original brake equipment. A shared C7 body designation does not establish compatibility with every factory brake package.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions

PMB Performance can help work through the mounting and wheel-clearance details before purchase. Our parts and fitment support is backed by over 20 years of experience; include measurements of any modified axle or spindle.
