Wilwood Black AERO4 Rear Parking-Brake Conversion, Drilled 14-Inch Rotors, for Ford Mustang with BMR Rear Suspension (2005–2014)

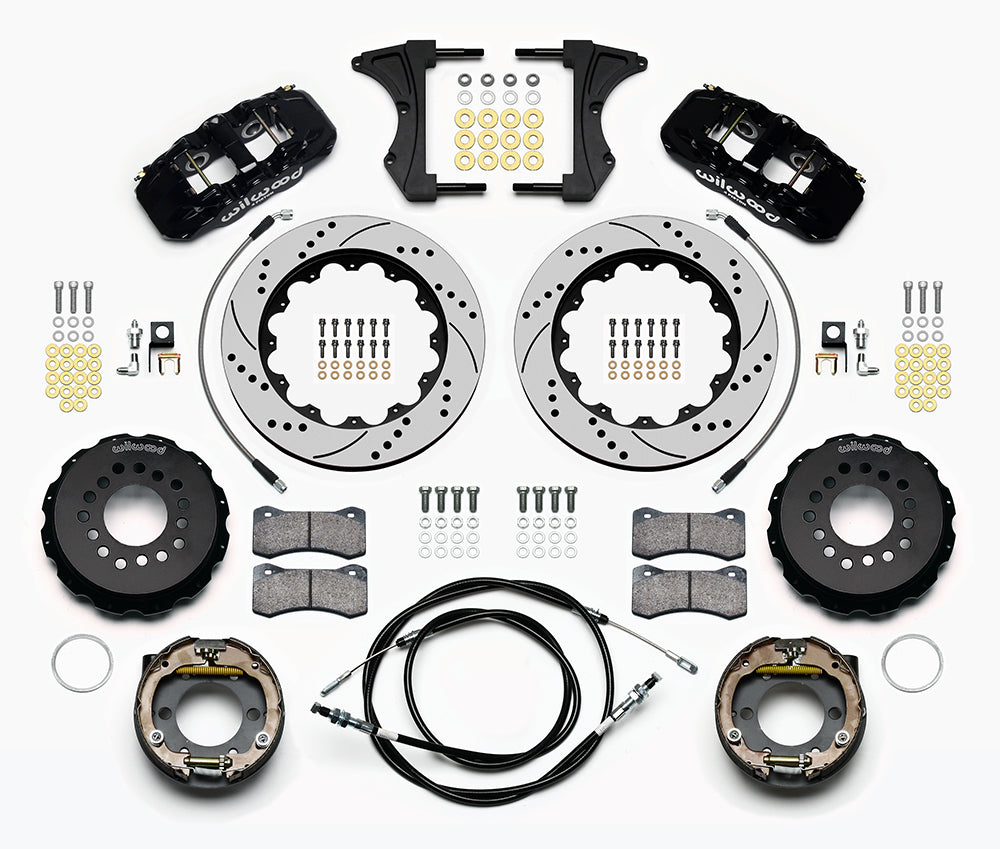

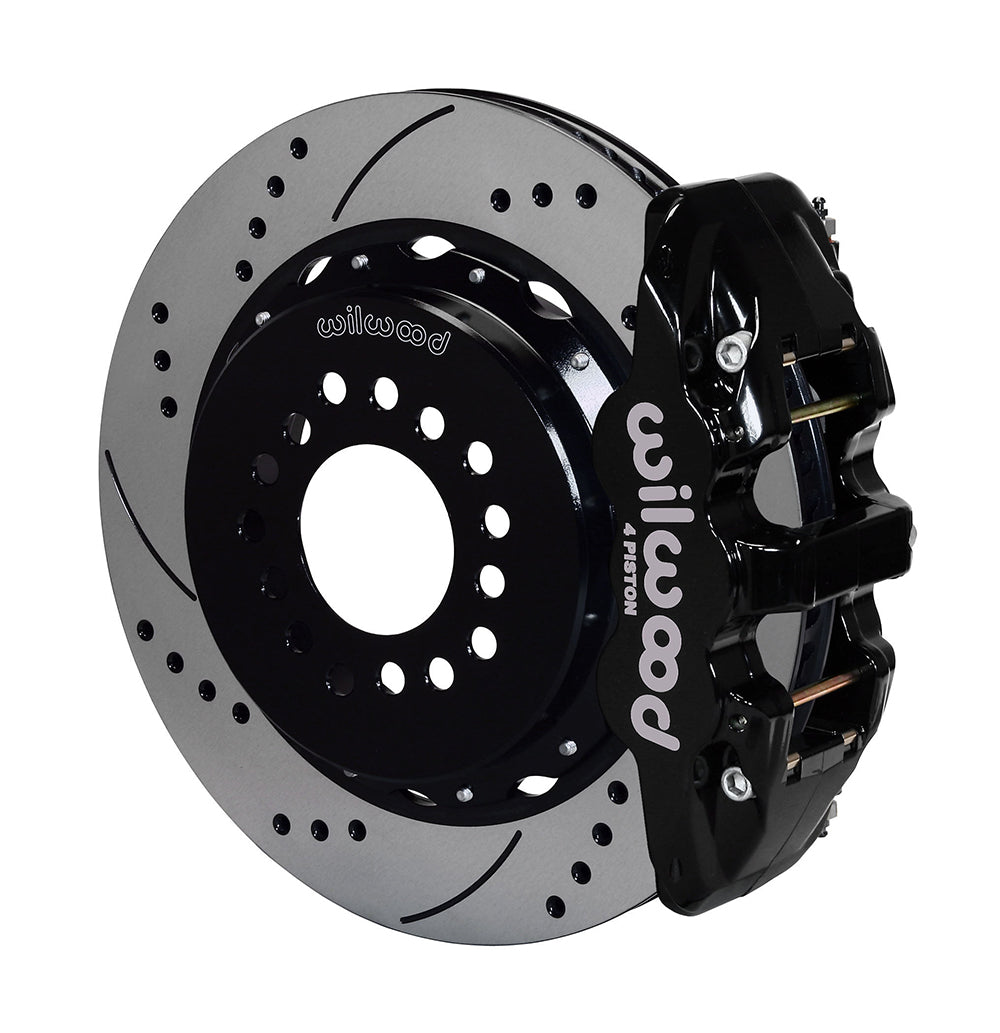

Black four-piston AERO4 calipers operate the drilled-and-slotted rotors in this Mustang BMR rear package. Its internal parking shoes, hats and cable set form a matched mechanical system separate from the hydraulic service brakes; the rear flexline kit is also included. Based in Camarillo, California, Wilwood Engineering was established by Bill Wood in 1977. It designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings and brake lines. That range serves motorsport, street-performance and specialized applications; the individual parts must be matched to the requirements of the complete braking assembly.

Technical Details

• Calipers: 4 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: AERO4. Brake-pad compound: BP-20.

• Manufacturer: Wilwood; manufacturer part number: 140-13686-D. Supplied quantity: Sold as a kit.
• Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: Yes; matched line kit 220-9248, 18.00 inches nominal length.
• Internal parking-shoe assemblies are included. Parking cable kit 330-12335 is also supplied; verify its vehicle routing and attachment.

• Wheel interface: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm. Rotor/hat wheel-stud clearance: 0.520 in; 13.21 mm.
• Nominal minimum wheel diameter: 18 in; 457.2 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
• Housing/spindle flange: BMR Rear Suspension. Flange/axle offset: 0.00 in; 0 mm.

• Rotor: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
• Rotor-hat material: Aluminum. Hat offset: 1.250 inches; this hat dimension is separate from axle offset.
• Rotor surface finish: Black Electro Coat.

Fitment & Compatibility

Check the exact BMR rear-suspension interface and axle-flange measurements against DS1055. Flange relief may be needed to reinstall the wheel-speed sensor on the new backing plate. Match the 2005–2014 application, wheel envelope and both parking/hydraulic line routes.

DS1055 identifies the supplied parking-shoe assemblies and cable kit. The housing flange may need clearance relief to reinstall the wheel-speed sensor, and shock clearance must be checked as described in the instructions.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions

Supply the vehicle details and current brake configuration when contacting PMB Performance for fitment help. Our team brings over 20 years of parts experience to checking the combination.
