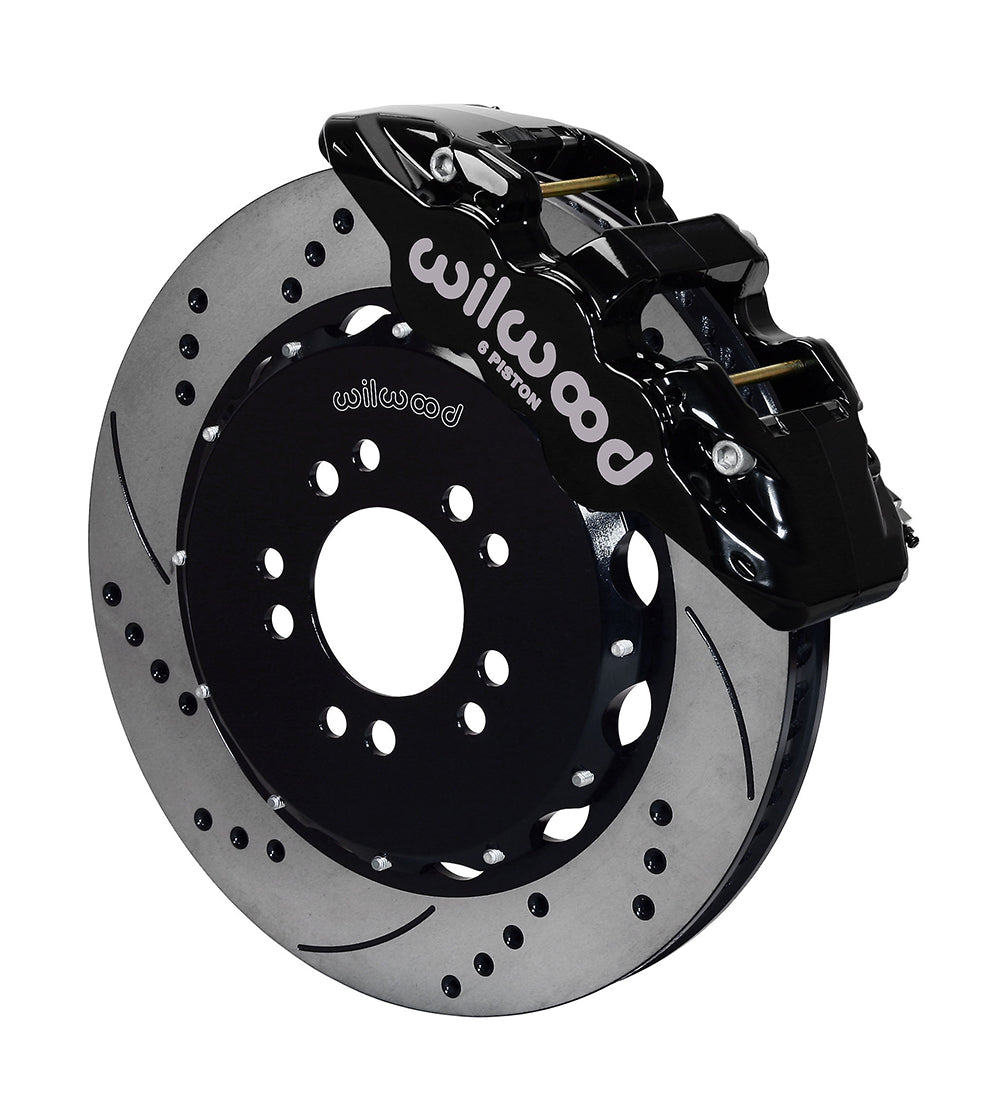

Wilwood Drilled Front Disc Conversion for 2005–2014 Ford Mustang BMR Suspension, Black Six-Piston AERO6 Calipers and 14-Inch Rotors

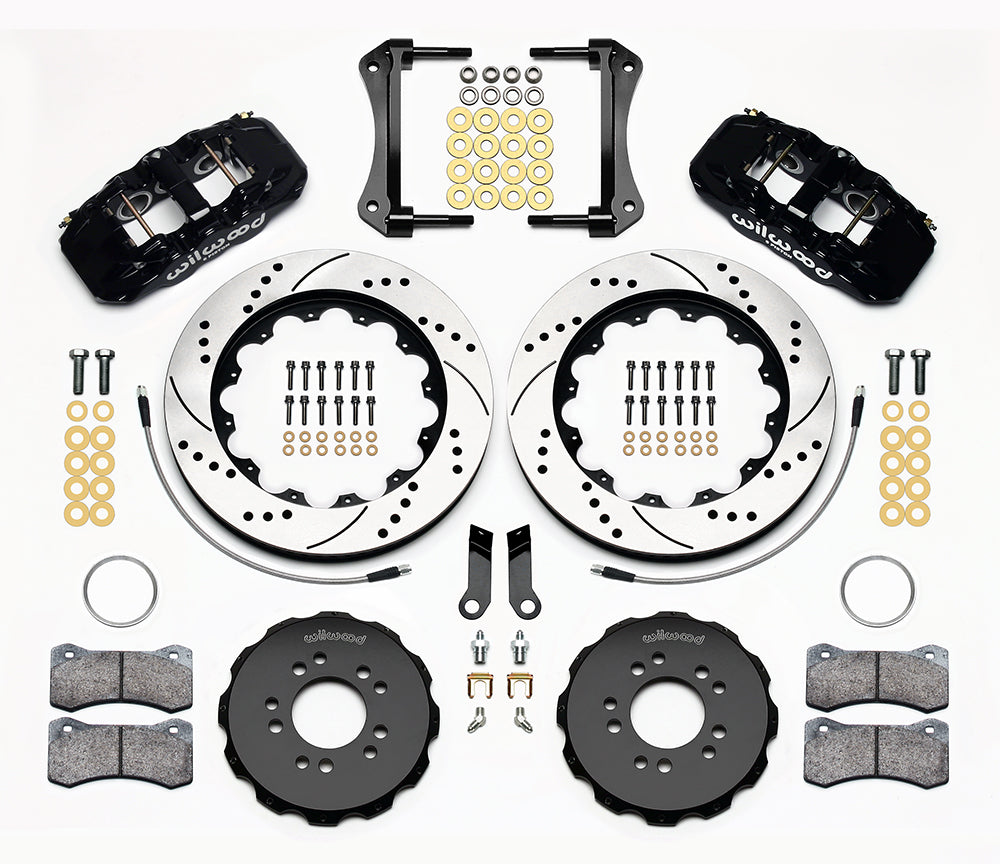

Drilled-and-slotted rotor rings replace the GT rings in this black AERO6 front package for the specified BMR-equipped Mustang. The conversion retains the documented factory hub interface and uses separate aluminum hats, bracket hardware and supplied flexlines. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It develops disc brake systems and components, designing and manufacturing calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. A correct conversion matches those individual components to the complete braking system.

Technical Details

• Rotor: 14.00 in; 355.6 mm outside diameter; 1.25 in; 31.75 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
• Rotor-hat material: Aluminum. Hat offset: 0.540 inches; this hat dimension is separate from axle offset.
• Rotor surface finish: Black Electro Coat.

• Calipers: 6 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: AERO6. Brake-pad compound: BP-20.

• Manufacturer: Wilwood; manufacturer part number: 140-13685-D. Supplied quantity: Sold as a kit.
• Application category: Front Brake Kits - Street Performance. Axle/spindle category: Front Kits. Brake function: Disc.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: Yes; matched line kit 220-9111, 18.00 inches nominal length.

• Wheel interface: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm. Rotor/hat wheel-stud clearance: 0.580 in; 14.73 mm; 0.520 in; 13.21 mm.
• Nominal minimum wheel diameter: 18 in; 457.2 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.

Fitment & Compatibility

Confirm that the installed BMR suspension arrangement matches the application, rather than selecting solely by Mustang model year. Check hub seating, mounting clearance and the full 18-inch wheel diagram in DS1054 before connecting the included hoses.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions

For help matching the conversion to your existing hardware, contact PMB Performance with the vehicle details and the relevant measurements. Our parts and fitment work draws on over 20 years of experience.
