Wilwood Front AERO6 Brake Kit for Ford Mustang with BMR Suspension (2005–2014), Black Calipers and 14-Inch GT Rotors with Hoses

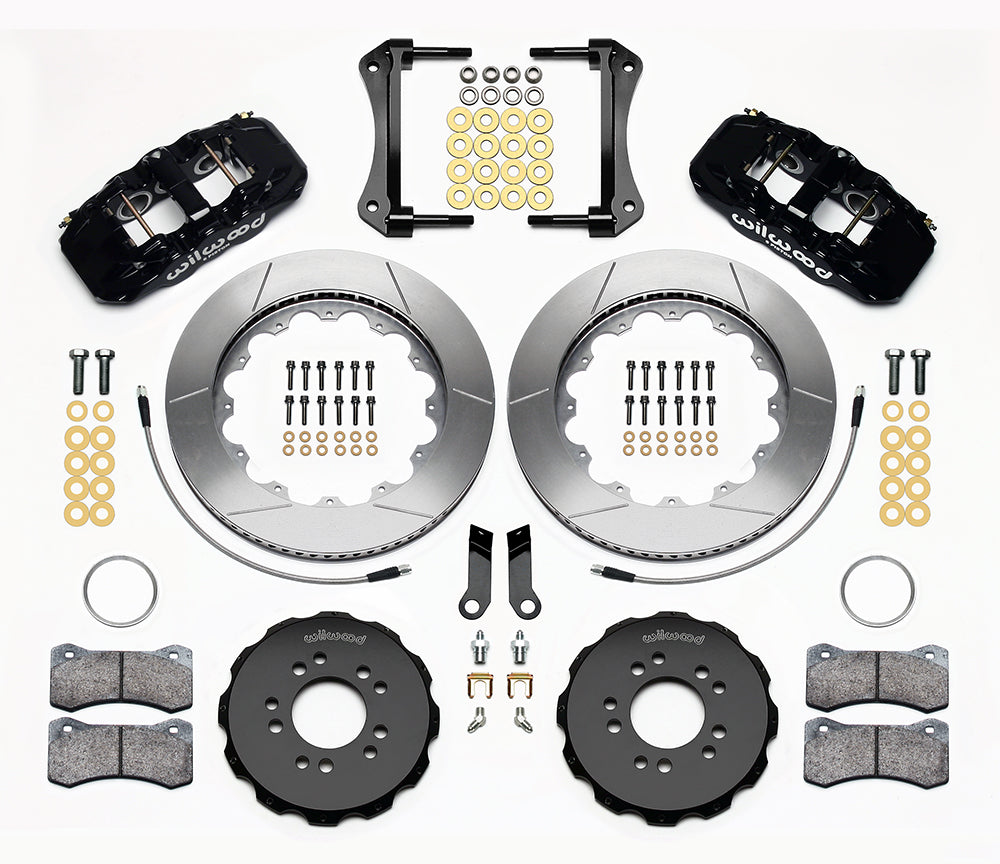

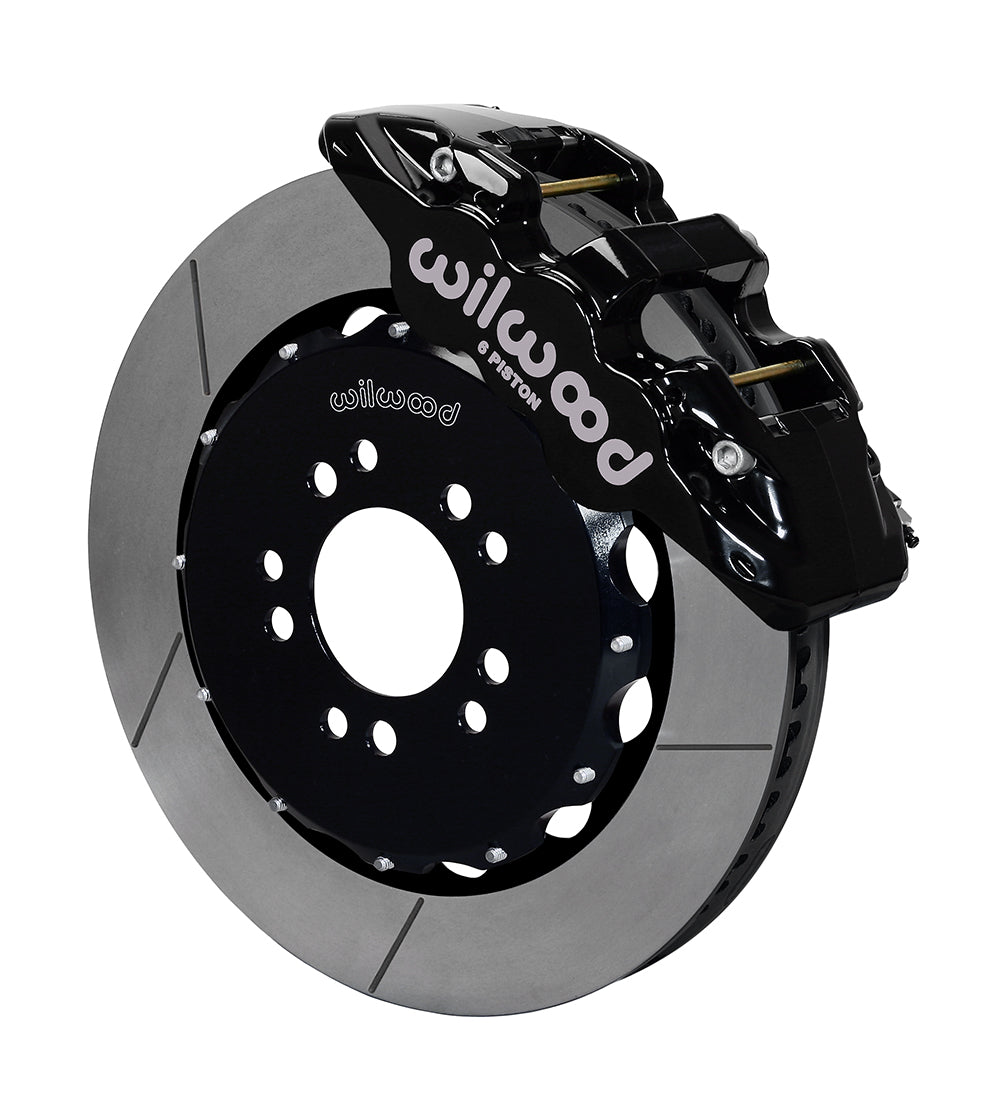

The black-caliper front kit is matched to the documented BMR-suspension Mustang arrangement. Six-piston AERO6 calipers operate 14-inch GT rotor rings on separate aluminum hats, with the brake brackets, pads and hydraulic flexline set supplied for the conversion. This is a Wilwood Engineering conversion package. Bill Wood founded the company in 1977, and it is based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, from calipers and brake rotors to master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized applications require each component to match the complete brake system.

Technical Details

• Manufacturer: Wilwood; manufacturer part number: 140-13685. Supplied quantity: Sold as a kit.
• Application category: Front Brake Kits - Street Performance. Axle/spindle category: Front Kits. Brake function: Disc.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: Yes; matched line kit 220-9111, 18.00 inches nominal length.

• Rotor: 14.00 in; 355.6 mm outside diameter; 1.25 in; 31.75 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: GT Slotted.
• Rotor-hat material: Aluminum. Hat offset: 0.540 inches; this hat dimension is separate from axle offset.
• Rotor surface finish: Black Electro Coat.

• Wheel interface: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm. Rotor/hat wheel-stud clearance: 0.580 in; 14.73 mm; 0.520 in; 13.21 mm.
• Nominal minimum wheel diameter: 18 in; 457.2 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.

• Calipers: 6 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: AERO6. Brake-pad compound: BP-20.

Fitment & Compatibility

BMR suspension is an application condition, not an optional descriptive detail. Verify the actual suspension/spindle interface, Mustang year and retained hub before installation. DS1054 provides the wheel envelope and assembly requirements for this configuration.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions

With over 20 years of parts and fitment experience, PMB Performance can help check the brake configuration before you order. Include the vehicle information, installed axle or spindle and wheel dimensions in your enquiry.
