Wilwood Red Superlite Rear Kit with Drilled Rotors and Internal Parking Brake, GM 12-Bolt C-Clip Housing Ends, 2.75-Inch Offset and Staggered Shocks

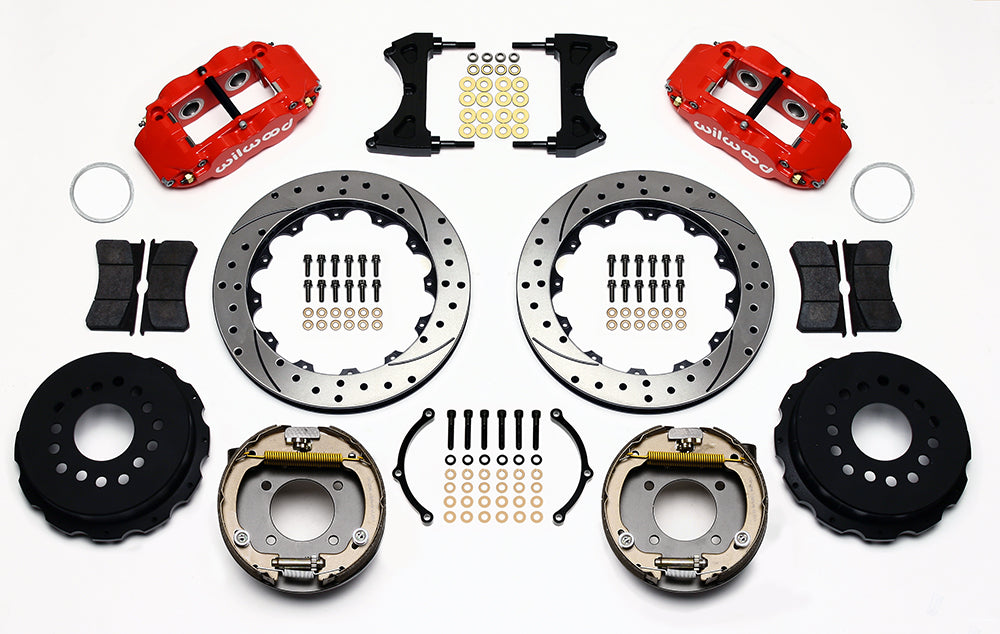

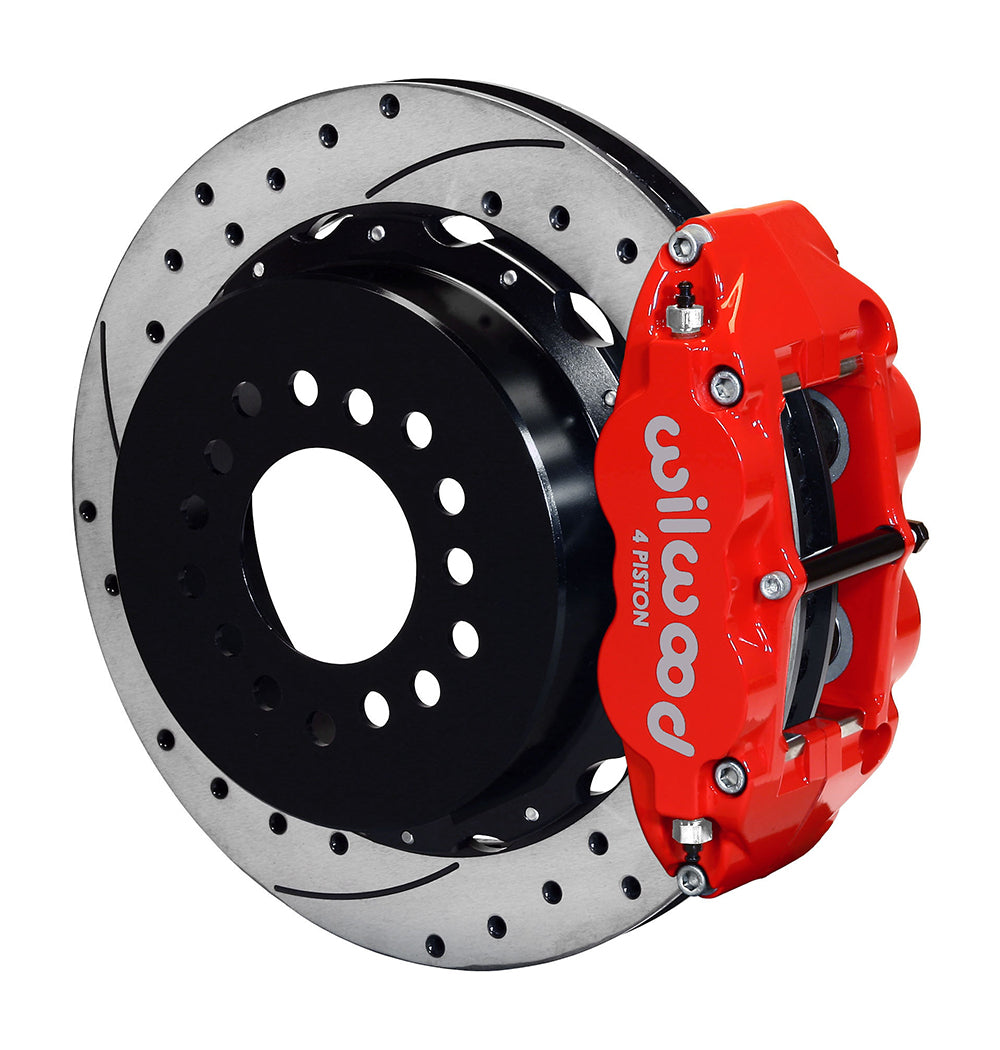

Red Superlite 4R calipers clamp drilled-and-slotted 12.88-inch rings in this GM rear conversion. Parking shoes and the aluminum drum hats form the mechanical holding system, while the factory C-clip axle and staggered brackets govern the mechanical fit. Bill Wood established Wilwood Engineering in 1977; the company is based in Camarillo, California. Its disc brake design and manufacturing range covers calipers, rotors, master cylinders, valves, fittings and brake lines, as well as complete systems. Those products serve motorsport, street-performance and specialized applications, with the individual components selected to match the braking system as a whole.

Technical Details

• Rotor: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
• Rotor-hat material: Aluminum. Hat offset: 1.950 inches; this hat dimension is separate from axle offset.
• Rotor surface finish: Black Electro Coat.

• Wheel interface: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm. Rotor/hat wheel-stud clearance: 0.520 in; 13.21 mm.
• Nominal minimum wheel diameter: 17 in; 431.8 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
• Housing/spindle flange: 12 Bolt. Flange/axle offset: 2.75 in; 69.85 mm.

• Manufacturer: Wilwood; manufacturer part number: 140-13678-DR. Supplied quantity: Sold as a kit.
• Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
• Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.

• Calipers: 4 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: Forged Narrow Superlite 4R. Brake-pad compound: BP-10.

Fitment & Compatibility

Verify the actual rear flange rather than the Ridetech front-spindle conditions attached to the Chevelle, 442, Beaumont, Camaro and Apollo entries below. The kit needs 2.75-inch axle offset and the documented staggered layout. C-clip eliminators and special housing ends are not compatible.

For staggered shock mounts, the right-hand caliper mounts behind the axle and the left-hand caliper ahead of it. Verify this orientation against the shock and suspension clearance.

Factory OE C-clip retention is required; special housing ends and C-clip eliminators are excluded. Separate flexline options are 220-7056 (14 inches), 220-7699 (16 inches) and 220-8307 (18 inches). A universal parking-cable installation may require cable or vehicle modifications.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions
• Technical bulletin

PMB Performance can help work through the mounting and wheel-clearance details before purchase. Our parts and fitment support is backed by over 20 years of experience; include measurements of any modified axle or spindle.
