Wilwood Rear Superlite Parking-Brake Kit, Black Calipers and 12.88-Inch GT Rotors, Big Ford New Style Axles with 2.50-Inch Offset and Staggered Shocks

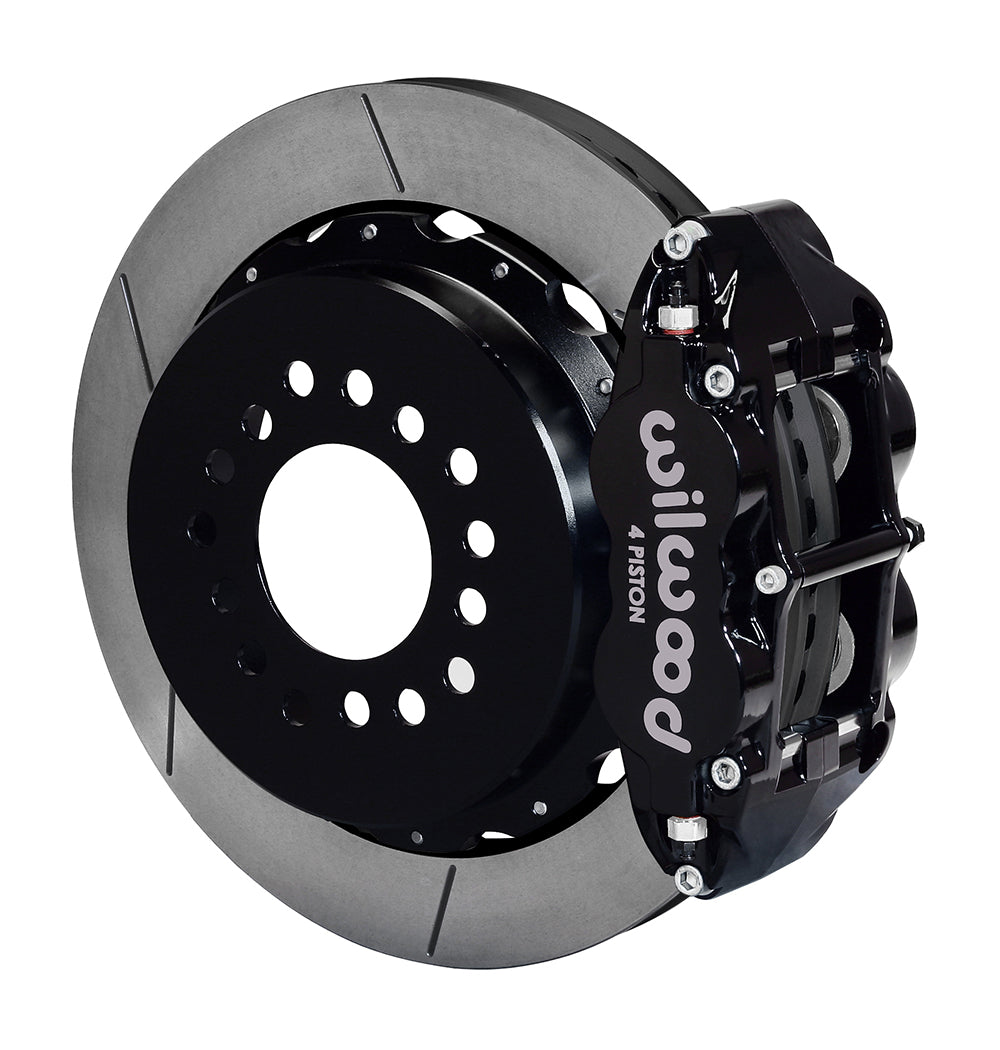

The bracket arrangement in this rear kit places the right caliper behind the axle and the left caliper ahead of it for staggered-shock clearance. Black Superlite 4R calipers operate 12.88-inch GT rotors, with internal shoes supplying the mechanical parking brake. Based in Camarillo, California, Wilwood Engineering was established by Bill Wood in 1977. It designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings and brake lines. That range serves motorsport, street-performance and specialized applications; the individual parts must be matched to the requirements of the complete braking assembly.

Technical Details

• Calipers: 4 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: Forged Narrow Superlite 4R. Brake-pad compound: BP-10.

• Rotor: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: GT Slotted.
• Rotor-hat material: Aluminum. Hat offset: 1.540 inches; this hat dimension is separate from axle offset.
• Rotor surface finish: Black Electro Coat.

• Wheel interface: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm. Rotor/hat wheel-stud clearance: 0.520 in; 13.21 mm.
• Nominal minimum wheel diameter: 17 in; 431.8 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
• Housing/spindle flange: Big Ford New Style. Flange/axle offset: 2.50 in; 63.5 mm.

• Manufacturer: Wilwood; manufacturer part number: 140-13677. Supplied quantity: Sold as a kit.
• Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: No. Select the vehicle-end connection and routing separately.

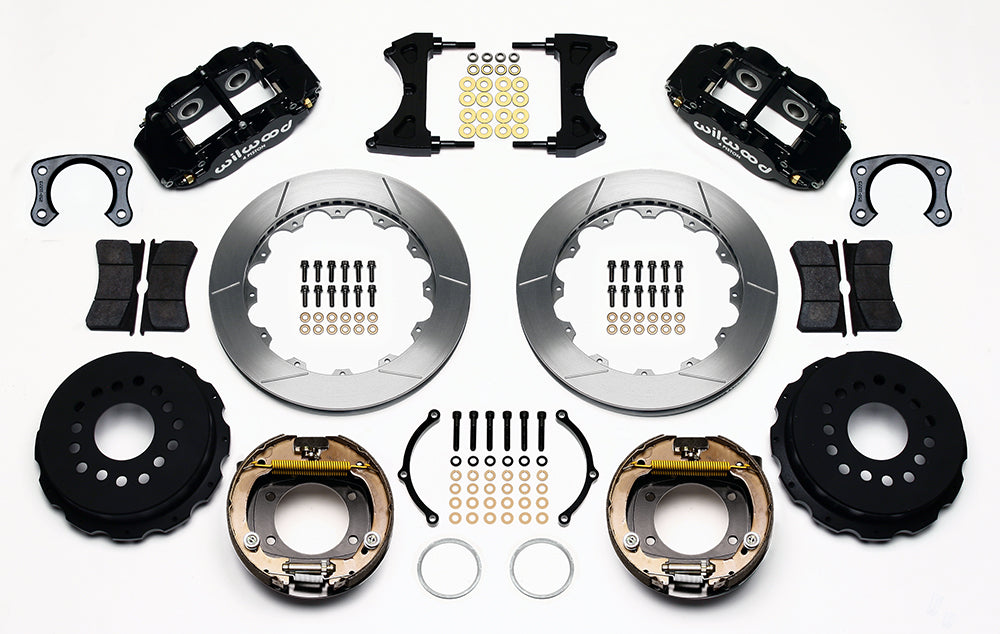

• Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.

Fitment & Compatibility

Confirm the Big Ford New Style flange, bearing and 2.50-inch offset using DS1052. The 1990 Lincoln Town Car row below does not independently confirm that its installed axle has this housing end; verify the measured conversion before ordering. Hoses and parking cable connections are separate.

For staggered shock mounts, the right-hand caliper mounts behind the axle and the left-hand caliper ahead of it. Verify this orientation against the shock and suspension clearance.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions
• Technical bulletin

With over 20 years of parts and fitment experience, PMB Performance can help check the brake configuration before you order. Include the vehicle information, installed axle or spindle and wheel dimensions in your enquiry.
