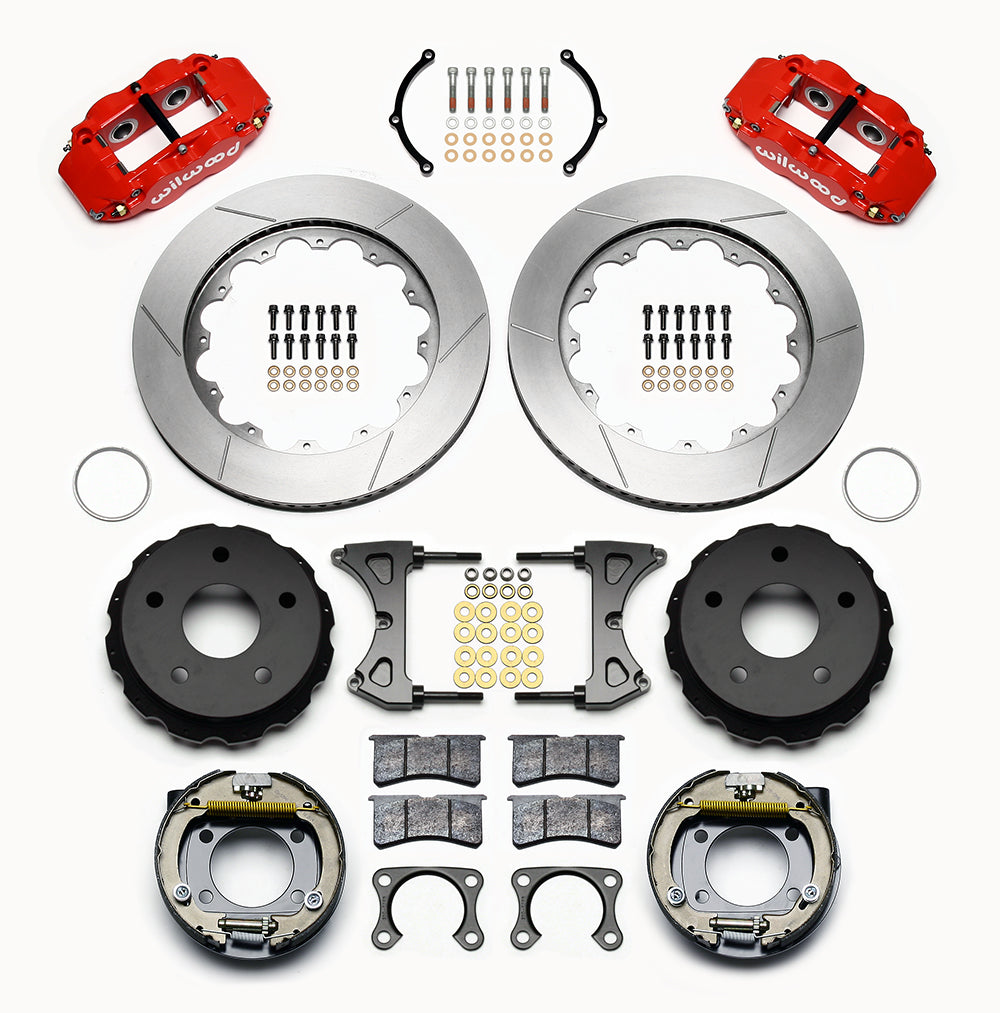

Wilwood Bronco New Style rear 14-inch Superlite brake kit laid out with red calipers, slotted rotors, internal parking-shoe assemblies and mounting parts

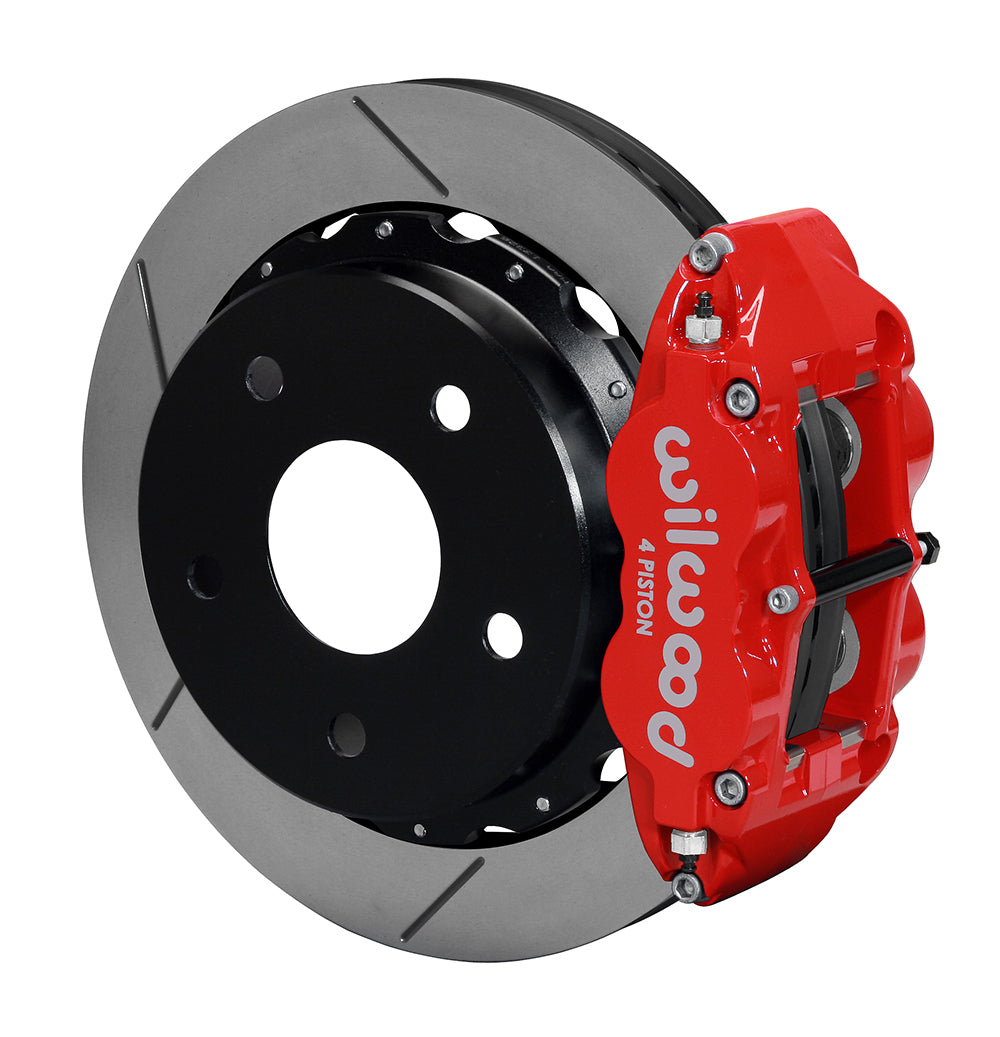

Wilwood Bronco New Style rear 14-inch Superlite brake kit assembly example, showing a red caliper positioned over the slotted rotor and mounting hat
Wilwood Bronco New Style rear 14-inch Superlite brake kit laid out with red calipers, slotted rotors, internal parking-shoe assemblies and mounting parts
Wilwood Bronco New Style rear 14-inch Superlite brake kit assembly example, showing a red caliper positioned over the slotted rotor and mounting hat

Wilwood Red-Caliper GT-Slotted Rear Brake and Parking Kit, 14-Inch Rotors, Bronco Big Ford New Style Axle Ends and 2.36-Inch Offset

SKU: 140-13666-R

$2,494.08 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The red GT configuration supplies the larger 14-inch rear rotor assembly for a matched New Style Bronco axle. Four-piston Superlite service calipers work alongside the internal-shoe mechanical parking brake, with iron hats supporting the separate rotor rings. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines, with each component chosen to suit the complete brake system.

Technical Details

  • Rotor: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: GT Slotted.
  • Rotor-hat material: Iron. Hat offset: 1.540 inches; this hat dimension is separate from axle offset.
  • Rotor surface finish: Black Electro Coat.
  • Calipers: 4 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Forged Narrow Superlite 4R. Brake-pad compound: BP-10.
  • Manufacturer: Wilwood; manufacturer part number: 140-13666-R. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Wheel interface: 5 x 5.5 in; 5 x 139.7 mm. Rotor/hat wheel-stud clearance: 0.640 in; 16.26 mm.
  • Nominal minimum wheel diameter: 18 in; 457.2 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: Big Ford New Style Bronco. Flange/axle offset: 2.36 in; 59.94 mm.

Fitment & Compatibility

Measure the housing end and bearing arrangement, and verify the 2.36-inch axle offset. This is the New Style flange version, not the 2.00-inch Big Ford package. Check wheel-to-caliper clearance and choose the correct hydraulic and parking-control connections separately.
