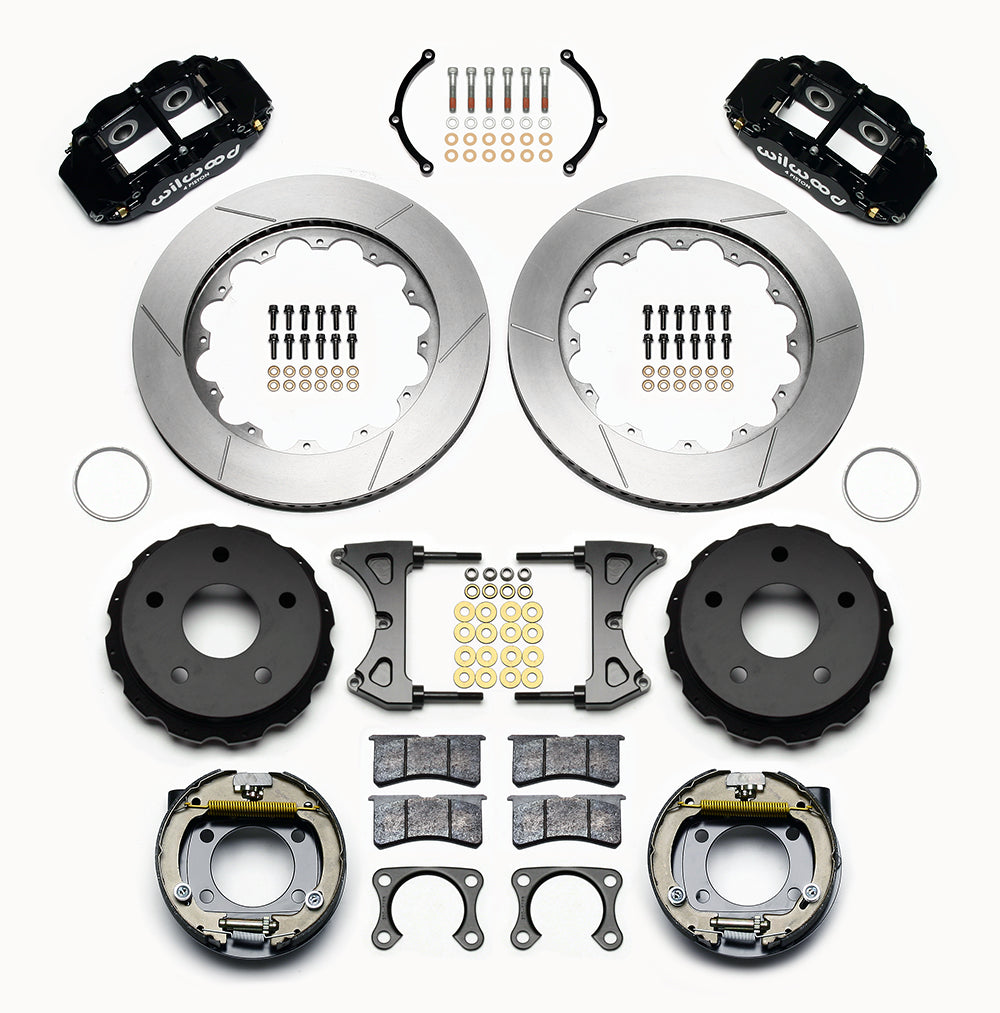

Wilwood Bronco New Style rear 14-inch Superlite brake kit laid out with black calipers, slotted rotors, internal parking-shoe assemblies and mounting parts

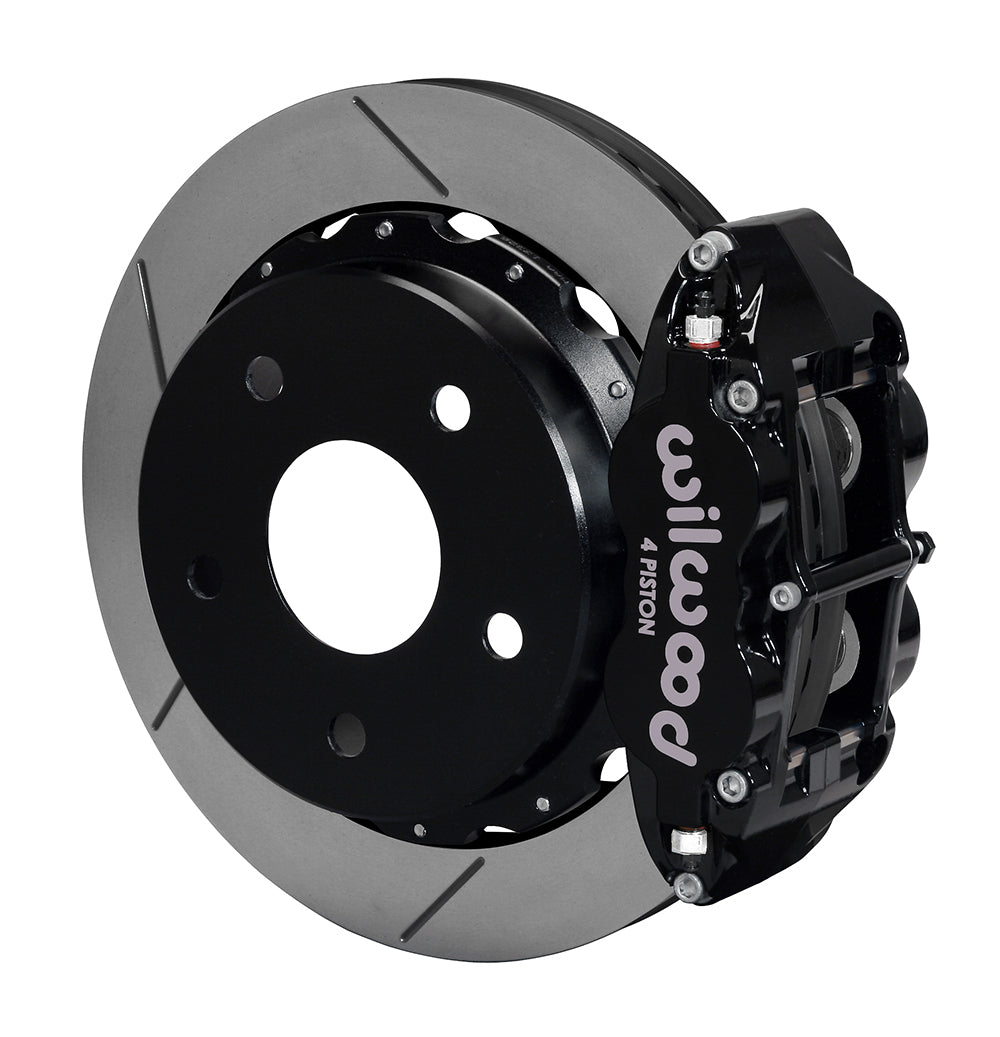

Wilwood Bronco New Style rear 14-inch Superlite brake kit assembly example, showing a black caliper positioned over the slotted rotor and mounting hat
Wilwood Bronco New Style rear 14-inch Superlite brake kit laid out with black calipers, slotted rotors, internal parking-shoe assemblies and mounting parts
Wilwood Bronco New Style rear 14-inch Superlite brake kit assembly example, showing a black caliper positioned over the slotted rotor and mounting hat

Wilwood Black Superlite 4R Rear Parking-Brake Kit for Ford Bronco New Style Axles, 14-Inch GT Rotors and 2.36-Inch Offset

SKU: 140-13666

$2,494.08 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This large-diameter Bronco rear conversion pairs black Superlite 4R calipers with 14-inch GT-slotted Spec-37 rotor rings. Iron hats and internal parking shoes complete the matched brake assembly for the Big Ford New Style flange and 2.36-inch axle offset. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It develops disc brake systems and components, designing and manufacturing calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. A correct conversion matches those individual components to the complete braking system.

Technical Details

  • Rotor: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: GT Slotted.
  • Rotor-hat material: Iron. Hat offset: 1.540 inches; this hat dimension is separate from axle offset.
  • Rotor surface finish: Black Electro Coat.
  • Wheel interface: 5 x 5.5 in; 5 x 139.7 mm. Rotor/hat wheel-stud clearance: 0.640 in; 16.26 mm.
  • Nominal minimum wheel diameter: 18 in; 457.2 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: Big Ford New Style Bronco. Flange/axle offset: 2.36 in; 59.94 mm.
  • Manufacturer: Wilwood; manufacturer part number: 140-13666. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Calipers: 4 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Forged Narrow Superlite 4R. Brake-pad compound: BP-10.

Fitment & Compatibility

Compare the actual housing end, bearing and offset with DS1045 rather than choosing by the Bronco name alone. Verify the 5x5.50 wheel pattern and clearance around the larger rotor/caliper package. Hoses and the vehicle's parking cable/clevis connections are not included.
