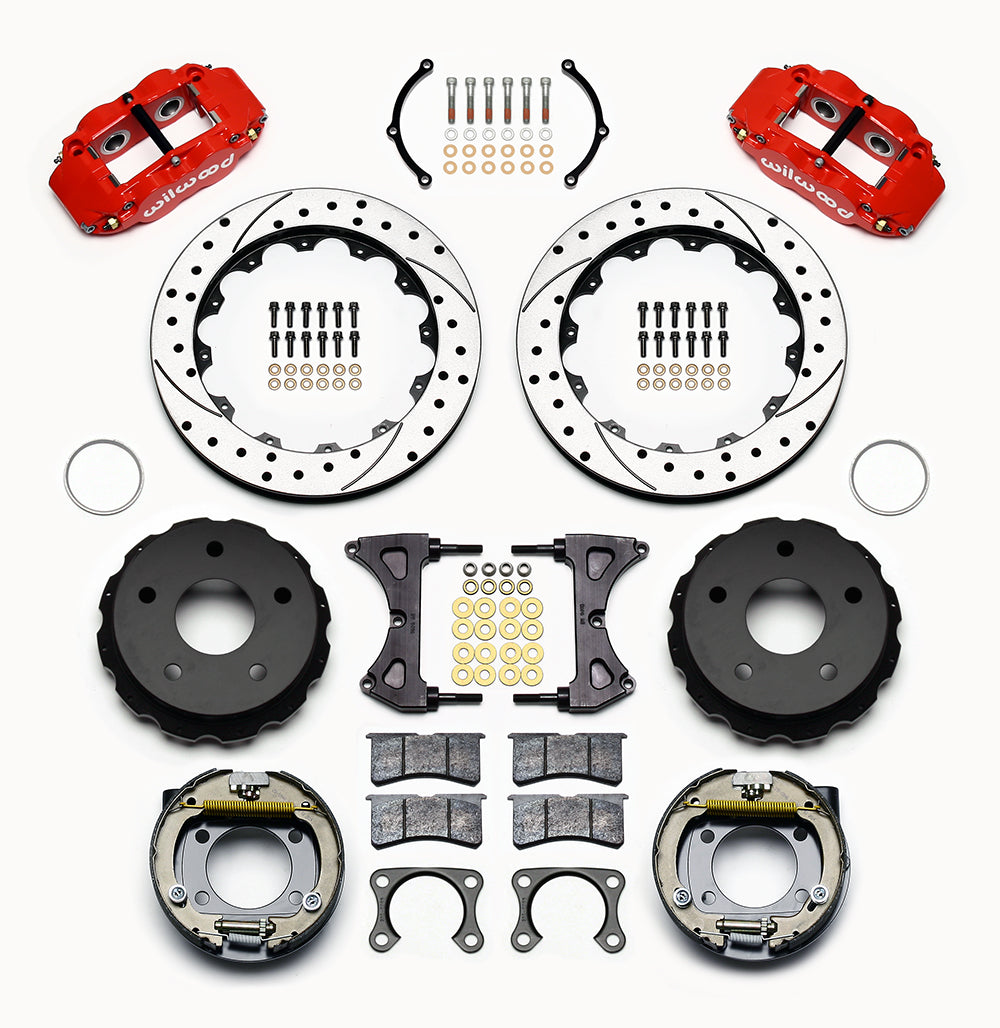

Wilwood Bronco New Style rear 12.88-inch Superlite brake kit laid out with red calipers, drilled and slotted rotors, internal parking-shoe assemblies and mounting parts

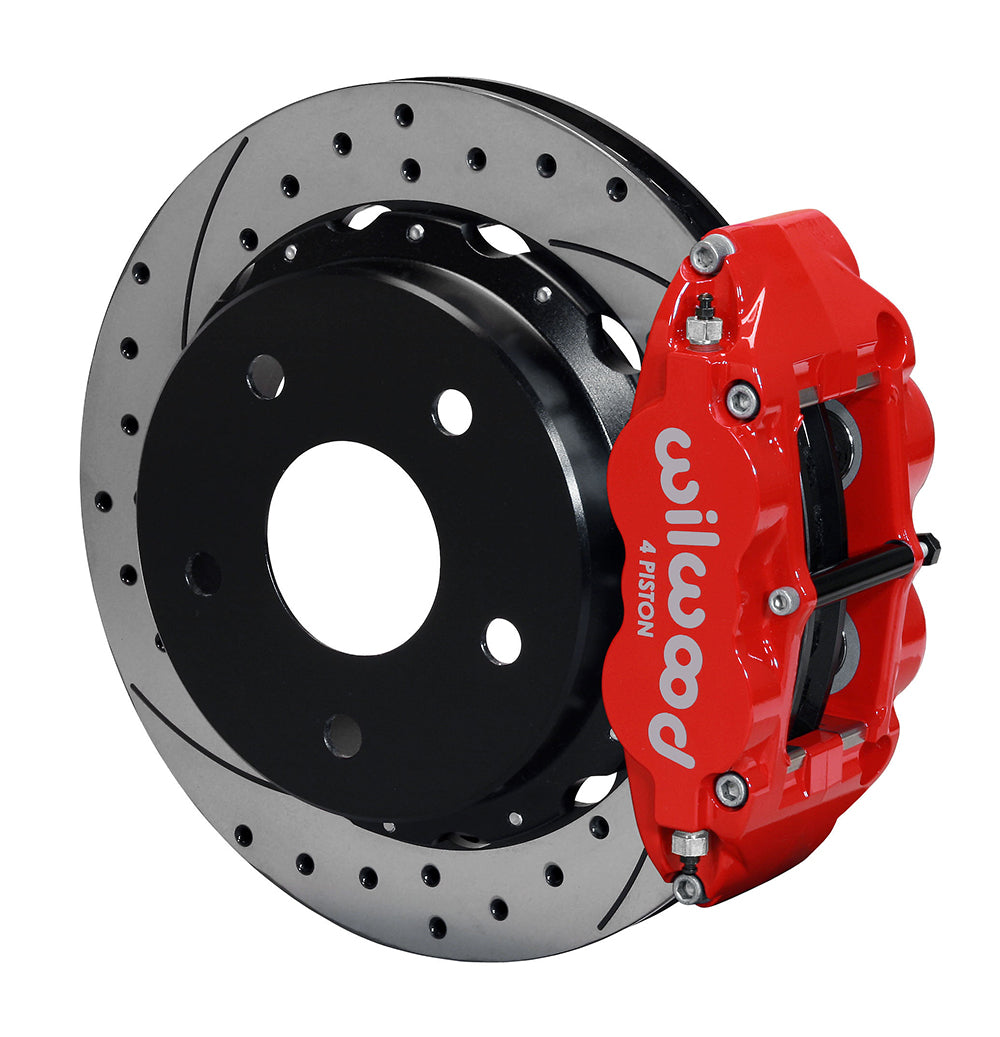

Wilwood Bronco New Style rear 12.88-inch Superlite brake kit assembly example, showing a red caliper positioned over the drilled and slotted rotor and mounting hat
Wilwood Bronco New Style rear 12.88-inch Superlite brake kit laid out with red calipers, drilled and slotted rotors, internal parking-shoe assemblies and mounting parts
Wilwood Bronco New Style rear 12.88-inch Superlite brake kit assembly example, showing a red caliper positioned over the drilled and slotted rotor and mounting hat

Wilwood Red Rear Superlite Brake Package, Drilled 12.88-Inch Rotors and Parking Shoes, Ford Bronco New Style Flange with 2.36-Inch Offset

SKU: 140-13665-DR

$2,299.11 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red four-piston Superlite calipers are paired with drilled-and-slotted rotor rings on the specified Bronco parking hats. The New Style flange and measured axle offset position the caliper and parking components; a shared wheel bolt pattern alone does not confirm compatibility. Camarillo, California is the home of Wilwood Engineering, the disc brake systems and components manufacturer founded by Bill Wood in 1977. It designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The requirements of the complete brake system determine which individual components are appropriate.

Technical Details

  • Wheel interface: 5 x 5.5 in; 5 x 139.7 mm. Rotor/hat wheel-stud clearance: 0.640 in; 16.26 mm.
  • Nominal minimum wheel diameter: 17 in; 431.8 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: Big Ford New Style Bronco. Flange/axle offset: 2.36 in; 59.94 mm.
  • Manufacturer: Wilwood; manufacturer part number: 140-13665-DR. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Calipers: 4 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Forged Narrow Superlite 4R. Brake-pad compound: BP-10.
  • Rotor: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
  • Rotor-hat material: Iron. Hat offset: 1.540 inches; this hat dimension is separate from axle offset.
  • Rotor surface finish: Black Electro Coat.

Fitment & Compatibility

Verify the 2.36-inch offset and actual New Style housing end before fitting. Match the 5x5.50 wheel circle and stud clearances, then inspect the wheel against DS1044. The parking shoes are supplied, but vehicle cable connections and hydraulic hoses remain separate requirements.

Manufacturer Documents

PMB Performance has over 20 years of experience with parts and fitment details. We can help review the installed brake arrangement when you provide the vehicle specification and the measured mounting interfaces.
