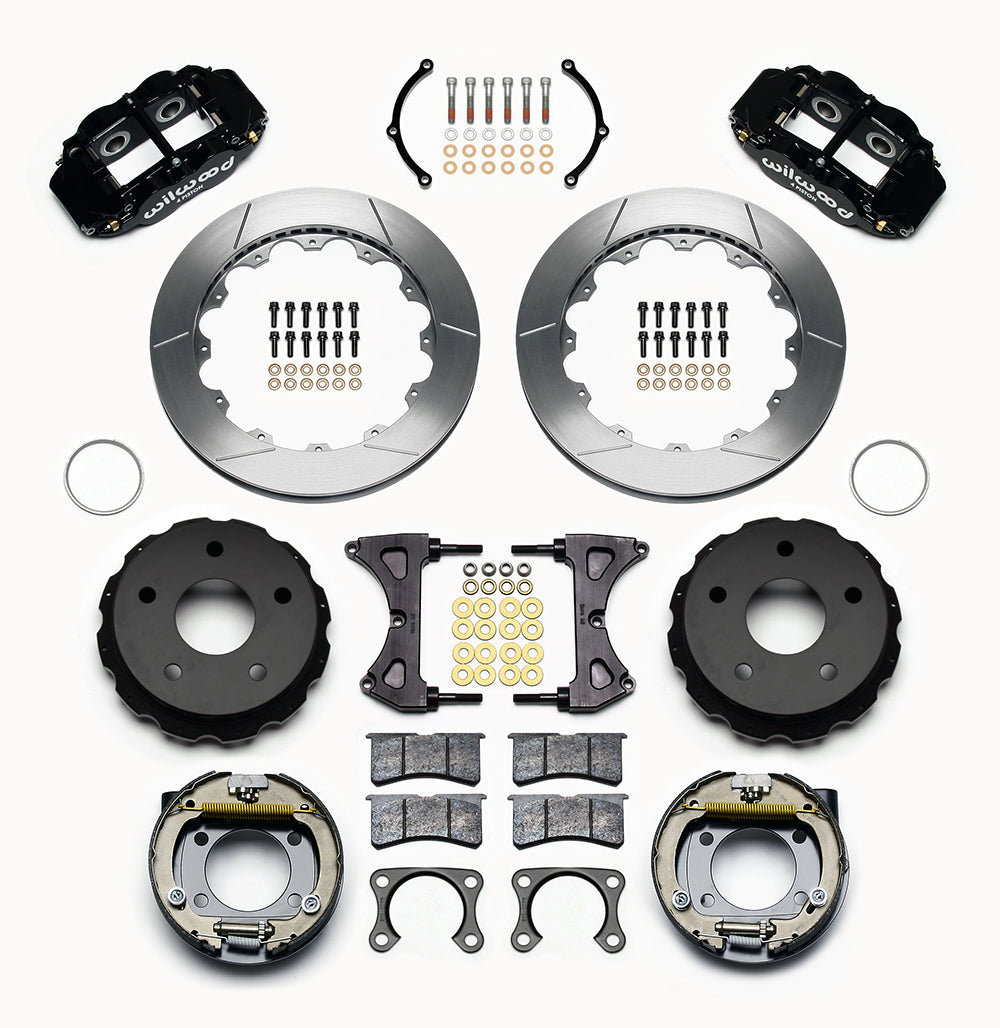

Wilwood Bronco New Style rear 12.88-inch Superlite brake kit laid out with black calipers, slotted rotors, internal parking-shoe assemblies and mounting parts

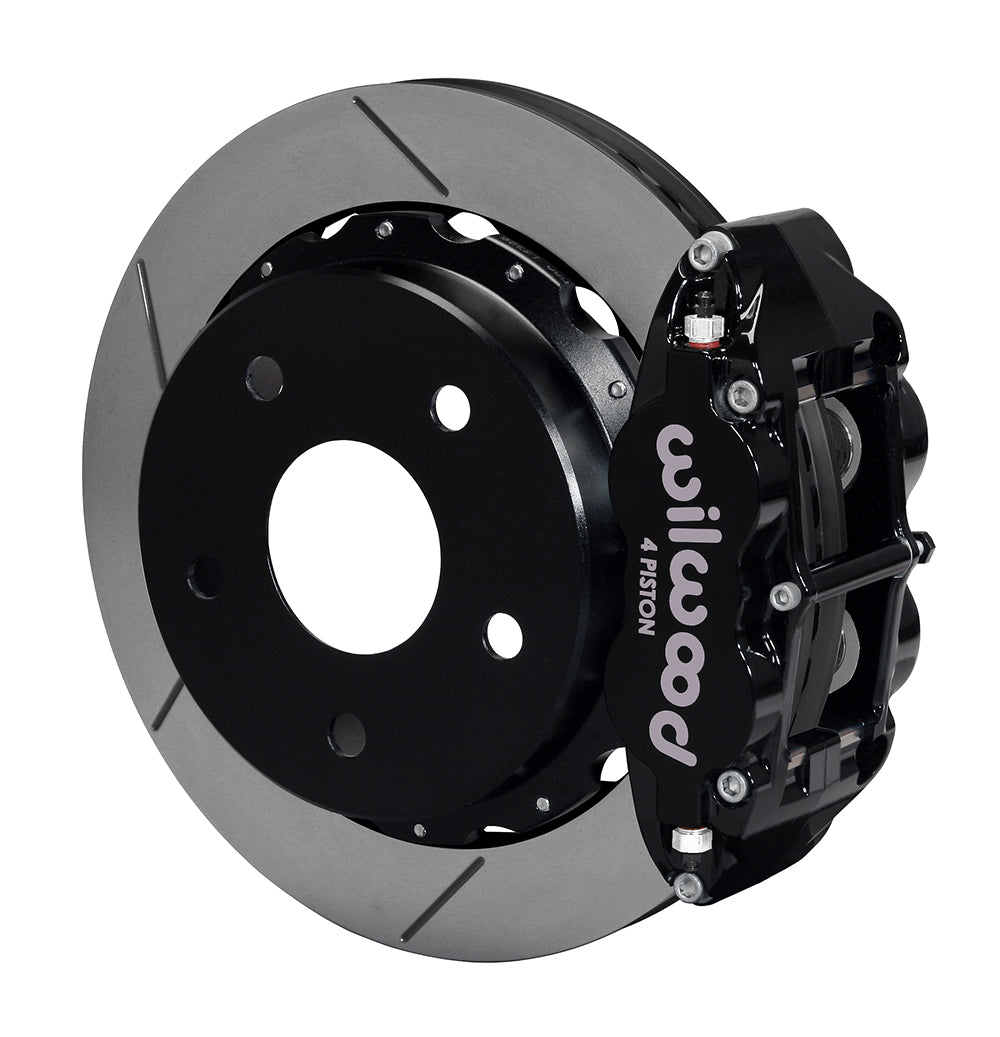

Wilwood Bronco New Style rear 12.88-inch Superlite brake kit assembly example, showing a black caliper positioned over the slotted rotor and mounting hat

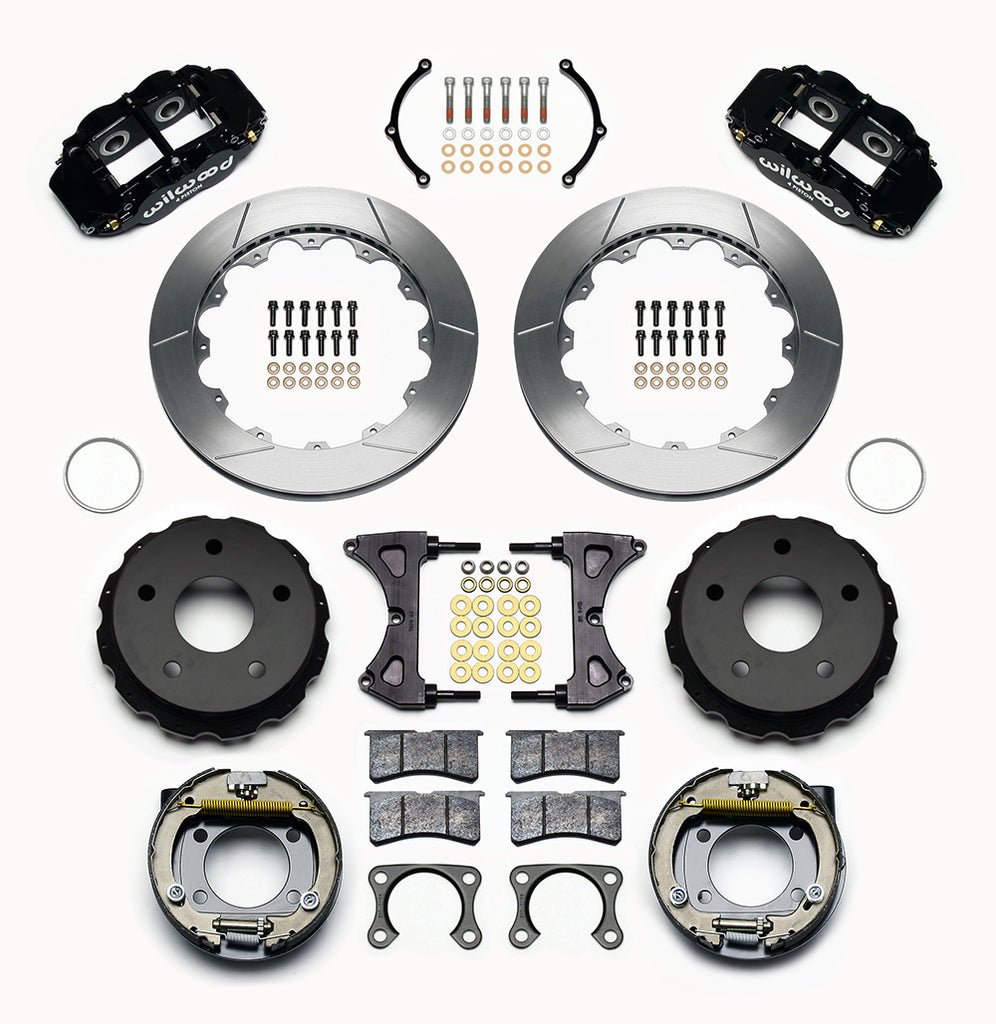

Wilwood Bronco New Style rear 12.88-inch Superlite brake kit laid out with black calipers, slotted rotors, internal parking-shoe assemblies and mounting parts
Wilwood Bronco New Style rear 12.88-inch Superlite brake kit assembly example, showing a black caliper positioned over the slotted rotor and mounting hat

Wilwood Rear Superlite 4R Parking-Brake Kit for Ford Bronco New Style Axles, Black Calipers, GT-Slotted 12.88-Inch Rotors and 2.36-Inch Offset

SKU: 140-13665

$2,299.11 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Black Superlite 4R calipers combine with two-piece 12.88-inch GT rotors in this Bronco rear package. Iron parking-brake hats and internal shoe assemblies provide the mechanical parking system, with axle selection governed by the New Style housing flange and 2.36-inch offset. The kit comes from Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized installations. Alongside calipers and brake rotors, its range includes master cylinders, valves, fittings and brake lines, all requiring selection around the complete system's operating requirements.

Technical Details

  • Manufacturer: Wilwood; manufacturer part number: 140-13665. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Wheel interface: 5 x 5.5 in; 5 x 139.7 mm. Rotor/hat wheel-stud clearance: 0.640 in; 16.26 mm.
  • Nominal minimum wheel diameter: 17 in; 431.8 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: Big Ford New Style Bronco. Flange/axle offset: 2.36 in; 59.94 mm.
  • Calipers: 4 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Forged Narrow Superlite 4R. Brake-pad compound: BP-10.
  • Rotor: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: GT Slotted.
  • Rotor-hat material: Iron. Hat offset: 1.540 inches; this hat dimension is separate from axle offset.
  • Rotor surface finish: Black Electro Coat.

Fitment & Compatibility

Measure the New Style bearing/flange arrangement and axle offset before ordering. The documented heavy-duty Bronco configuration normally uses the original 11-inch rear drum package. Check the 5x5.50 pattern and 17-inch wheel diagram; the kit does not supply brake hoses or parking cables.
