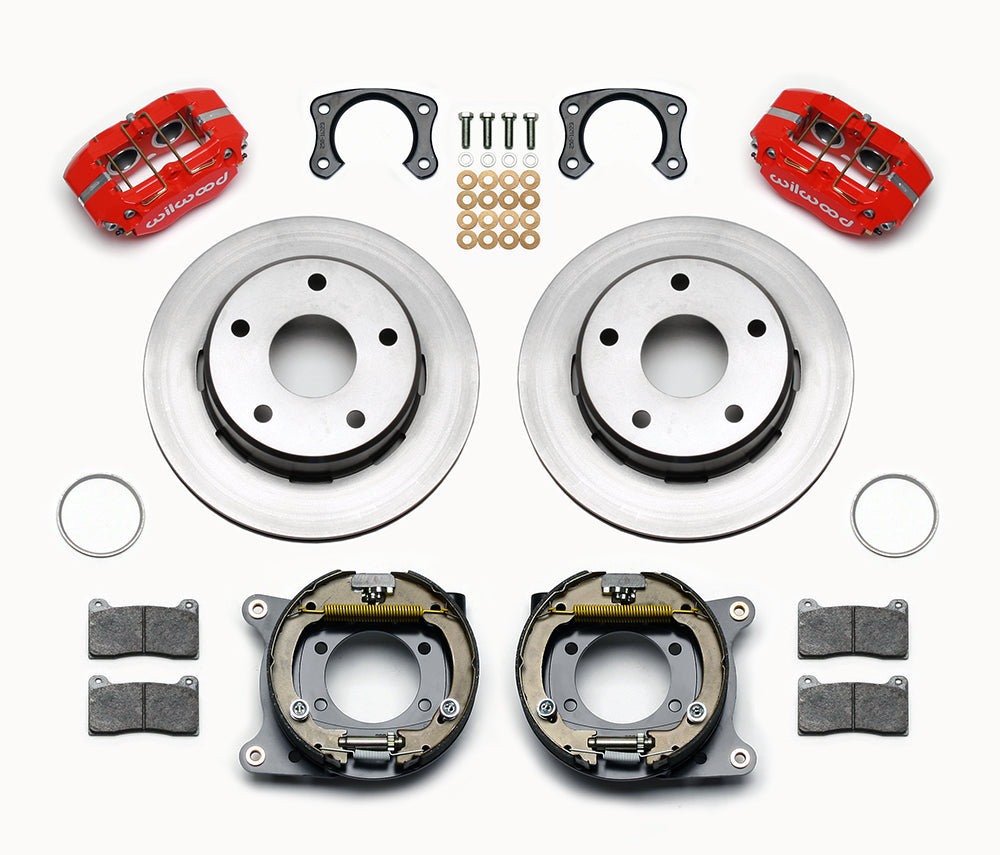

Wilwood Bronco New Style rear Dynapro parking-brake kit laid out with red calipers, plain-face rotors, internal parking-shoe assemblies and mounting parts

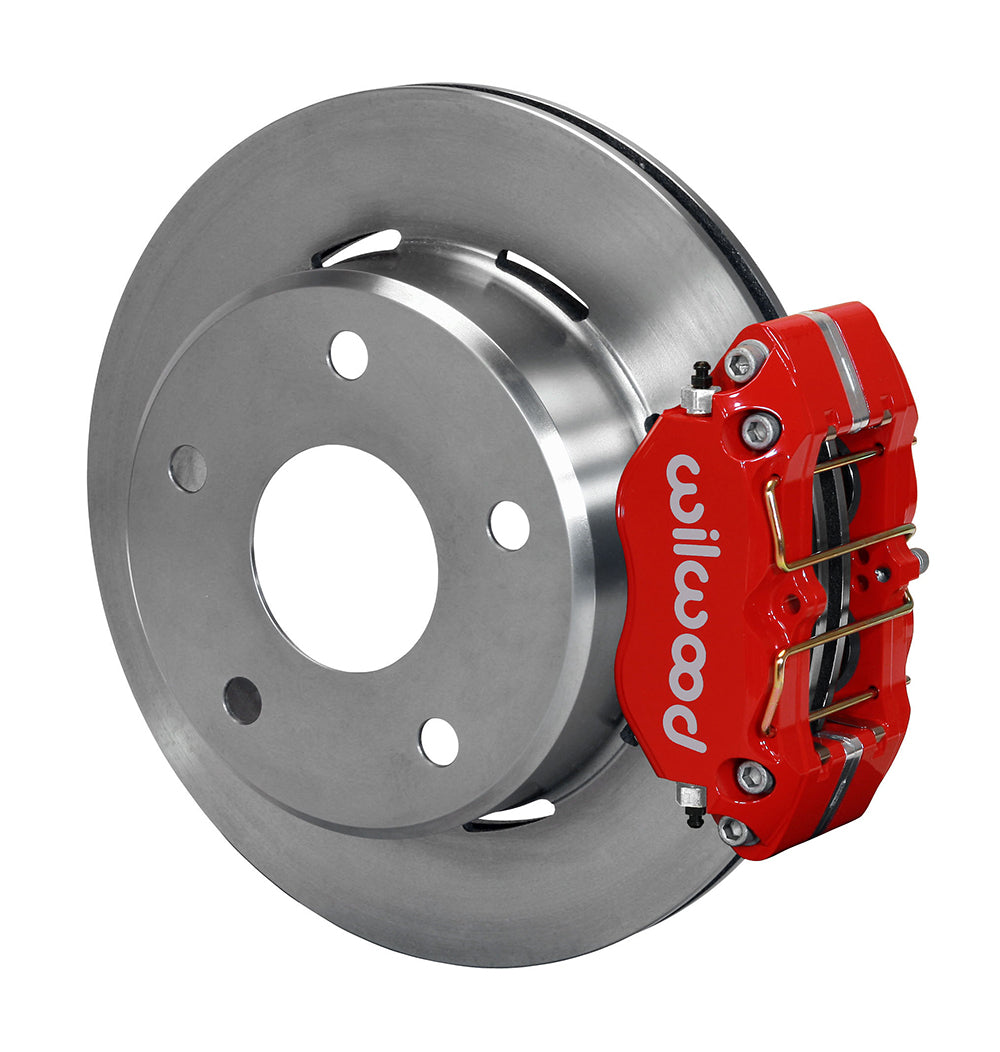

Wilwood Bronco New Style rear Dynapro parking-brake kit assembly example, showing a red caliper positioned over the plain-face rotor and mounting hat
Wilwood Bronco New Style rear Dynapro parking-brake kit laid out with red calipers, plain-face rotors, internal parking-shoe assemblies and mounting parts
Wilwood Bronco New Style rear Dynapro parking-brake kit assembly example, showing a red caliper positioned over the plain-face rotor and mounting hat

Wilwood Plain-Rotor Bronco Rear Parking-Brake Package, Red Dynapro Calipers, Big Ford New Style Housing Ends and 2.36-Inch Axle Offset

SKU: 140-13664-R

$1,298.94 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The red-caliper plain-face package converts the specified New Style Bronco axle end to rear disc service brakes with an internal parking mechanism. Its one-piece drum/rotors keep the friction ring and parking drum together, with the brackets and shoe assemblies supplied for the measured axle interface. For this conversion, component matching remains essential. Its manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems for motorsport, street-performance and specialized applications; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines selected to work within a complete system.

Technical Details

  • Wheel interface: 5 x 5.5 in; 5 x 139.7 mm. Rotor/hat wheel-stud clearance: 0.64 in; 16.26 mm.
  • Nominal minimum wheel diameter: 15 in; 381 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: Big Ford New Style Bronco. Flange/axle offset: 2.36 in; 59.94 mm.
  • Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Dynapro Lug Mount. Brake-pad compound: BP-10.
  • Manufacturer: Wilwood; manufacturer part number: 140-13664-R. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Rotor: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness. Material: Iron. Construction: Vented. Friction-face style: Plain Face.
  • Rotor surface finish: Plain.

Fitment & Compatibility

Confirm the flange pattern, bearing size and 2.36-inch axle offset before choosing this version. It is distinct from the earlier 2.00-inch-offset kit. Check the 5x5.50 wheel pattern, actual spoke clearance and separately selected hose and parking-cable components.
