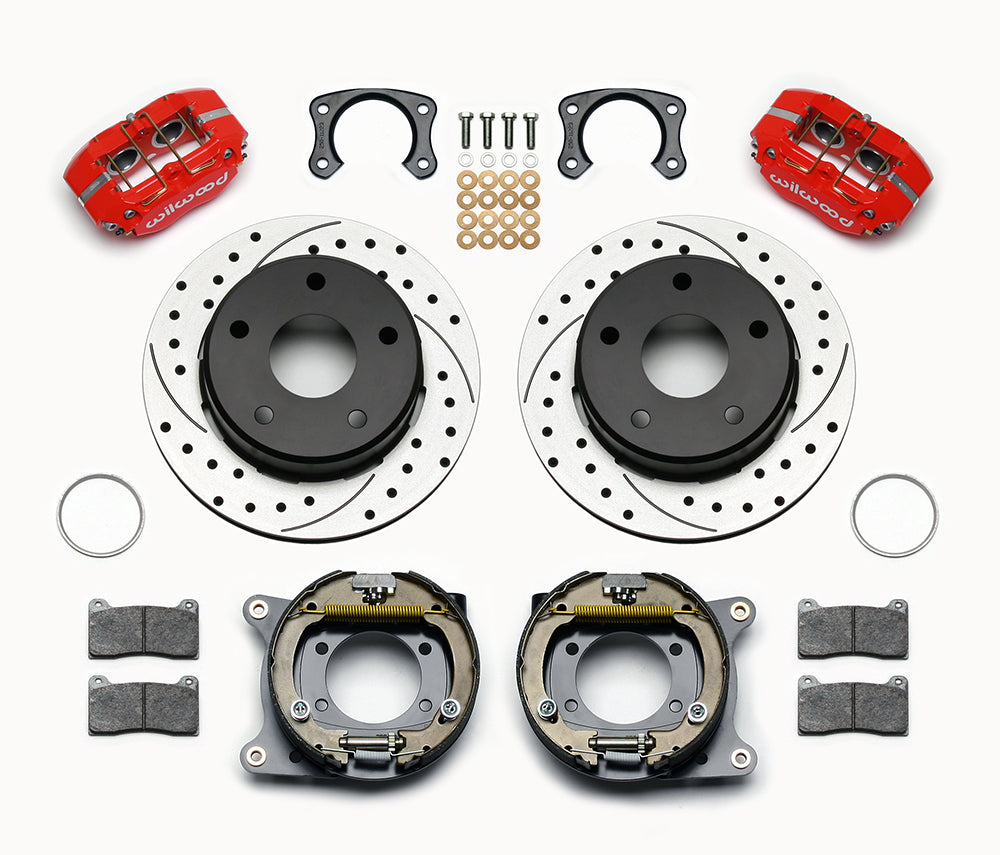

Wilwood Bronco New Style rear Dynapro parking-brake kit laid out with red calipers, drilled and slotted rotors, internal parking-shoe assemblies and mounting parts

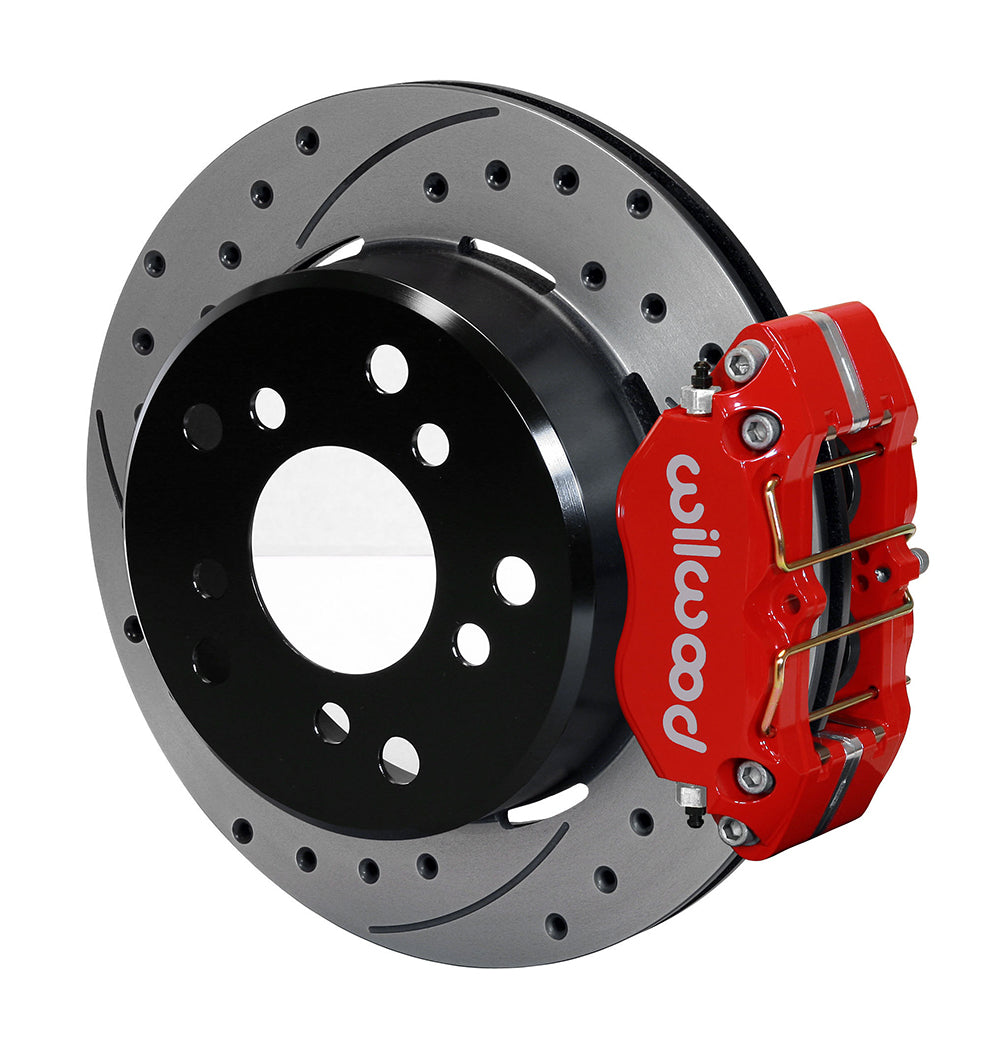

Wilwood Bronco New Style rear Dynapro parking-brake kit assembly example, showing a red caliper positioned over the drilled and slotted rotor and mounting hat
Wilwood Bronco New Style rear Dynapro parking-brake kit laid out with red calipers, drilled and slotted rotors, internal parking-shoe assemblies and mounting parts
Wilwood Bronco New Style rear Dynapro parking-brake kit assembly example, showing a red caliper positioned over the drilled and slotted rotor and mounting hat

Wilwood Red Dynapro Rear Brakes with Drilled Drum/Rotors and Parking Shoes for Ford Bronco New Style Axles, 2.36-Inch Offset

SKU: 140-13664-DR

$1,441.25 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red Dynapro four-piston calipers clamp the drilled-and-slotted iron rotors in this Bronco rear conversion. The mechanical parking shoes are housed inside the rotor drums; they require a separate compatible cable/clevis connection to the vehicle's hand or foot control. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems and their components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications. Compatibility depends on choosing those parts around the complete braking system.

Technical Details

  • Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Dynapro Lug Mount. Brake-pad compound: BP-10.
  • Rotor: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness. Material: Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
  • Rotor surface finish: Black Electro Coat.
  • Manufacturer: Wilwood; manufacturer part number: 140-13664-DR. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Wheel interface: 5 x 4.5 in; 5 x 114.3 mm; 5 x 5.5 in; 5 x 139.7 mm. Rotor/hat wheel-stud clearance: 0.56 in; 14.22 mm; 0.64 in; 16.26 mm.
  • Nominal minimum wheel diameter: 15 in; 381 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: Big Ford New Style Bronco. Flange/axle offset: 2.36 in; 59.94 mm.

Fitment & Compatibility

Use the Big Ford New Style flange and 2.36-inch offset dimensions, not a generic Bronco axle description. Verify the bearing and chosen wheel pattern, then check the complete 15-inch candidate-wheel envelope. Hydraulic hoses and parking cables are not supplied.

Manufacturer Documents

PMB Performance can help work through the mounting and wheel-clearance details before purchase. Our parts and fitment support is backed by over 20 years of experience; include measurements of any modified axle or spindle.
