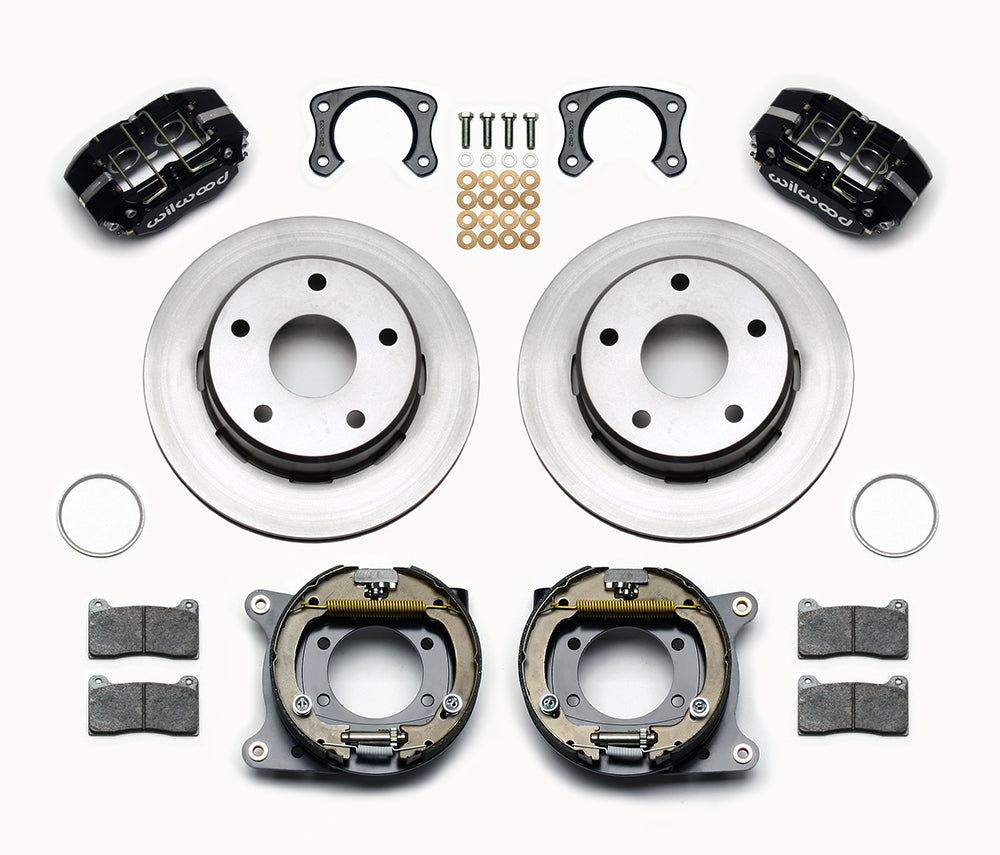

Wilwood Bronco New Style rear Dynapro parking-brake kit laid out with black calipers, plain-face rotors, internal parking-shoe assemblies and mounting parts

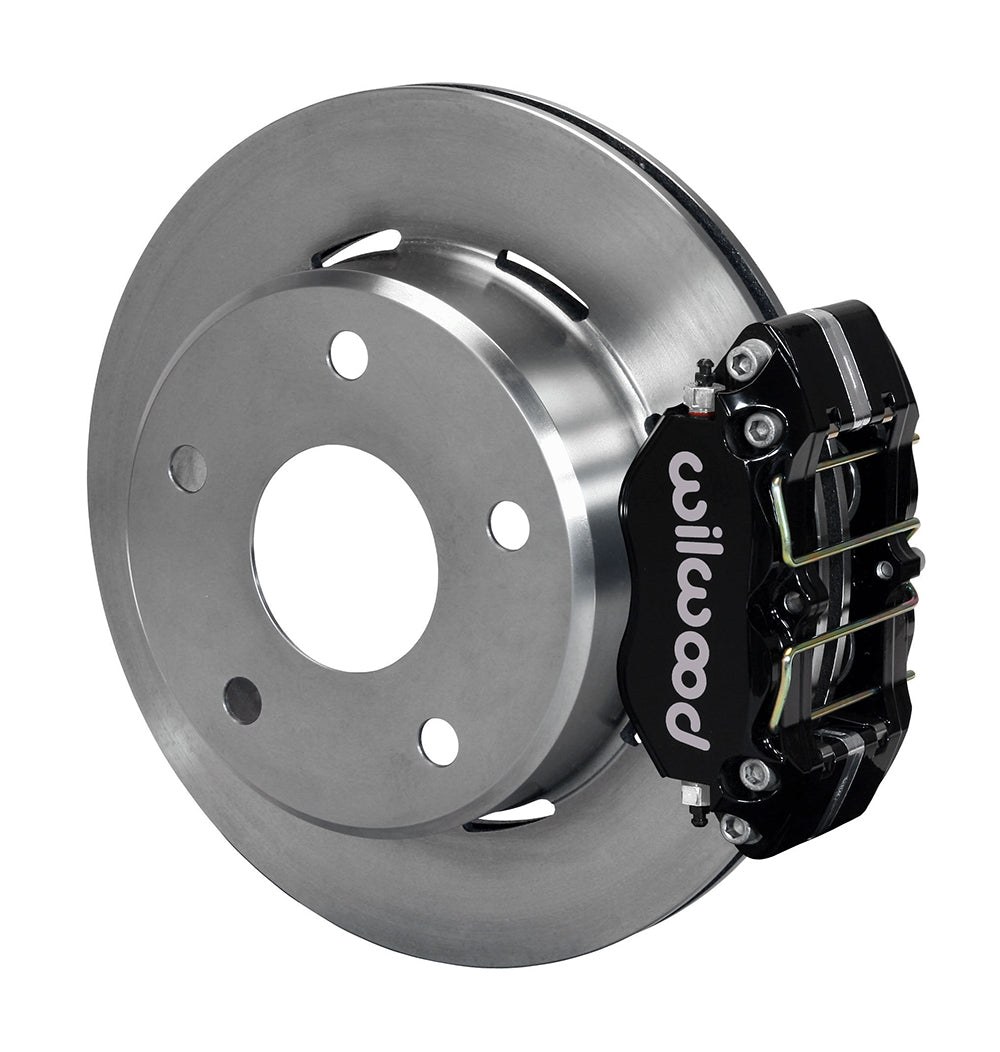

Wilwood Bronco New Style rear Dynapro parking-brake kit assembly example, showing a black caliper positioned over the plain-face rotor and mounting hat
Wilwood Bronco New Style rear Dynapro parking-brake kit laid out with black calipers, plain-face rotors, internal parking-shoe assemblies and mounting parts
Wilwood Bronco New Style rear Dynapro parking-brake kit assembly example, showing a black caliper positioned over the plain-face rotor and mounting hat

Wilwood Rear Dynapro Parking-Brake Kit for Ford Bronco Big Ford New Style Axles, 2.36-Inch Offset, Black Calipers and Plain 12.19-Inch Rotors

SKU: 140-13664

$1,298.94 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This Dynapro Lug Mount rear package is intended for the specified Bronco Big Ford New Style housing end. Black four-piston calipers operate plain-face 12.19-inch drum/rotors, while internal parking-shoe assemblies provide the mechanical holding function. Wilwood Engineering has designed and manufactured disc brake systems and components since Bill Wood founded the company in 1977. From its Camarillo, California base, it supplies motorsport, street-performance and specialized applications with calipers, brake rotors, master cylinders, valves, fittings and brake lines. Selecting those components requires a match to the complete system.

Technical Details

  • Manufacturer: Wilwood; manufacturer part number: 140-13664. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Rotor: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness. Material: Iron. Construction: Vented. Friction-face style: Plain Face.
  • Rotor surface finish: Plain.
  • Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Dynapro Lug Mount. Brake-pad compound: BP-10.
  • Wheel interface: 5 x 5.5 in; 5 x 139.7 mm. Rotor/hat wheel-stud clearance: 0.64 in; 16.26 mm.
  • Nominal minimum wheel diameter: 15 in; 381 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: Big Ford New Style Bronco. Flange/axle offset: 2.36 in; 59.94 mm.

Fitment & Compatibility

The New Style flange and 2.36-inch axle offset distinguish this kit from the 2.00-inch Big Ford Bronco version. Wilwood identifies the matching 1976–1977 heavy-duty arrangement; confirm the actual bearing, flange, wheel pattern and dimensions instead of model year alone. Hoses and cables are separate.

Manufacturer Documents

Ask PMB Performance for assistance if the installed hardware differs from the documented application. With over 20 years of parts and fitment experience, we can help identify the measurements needed to check the conversion.
