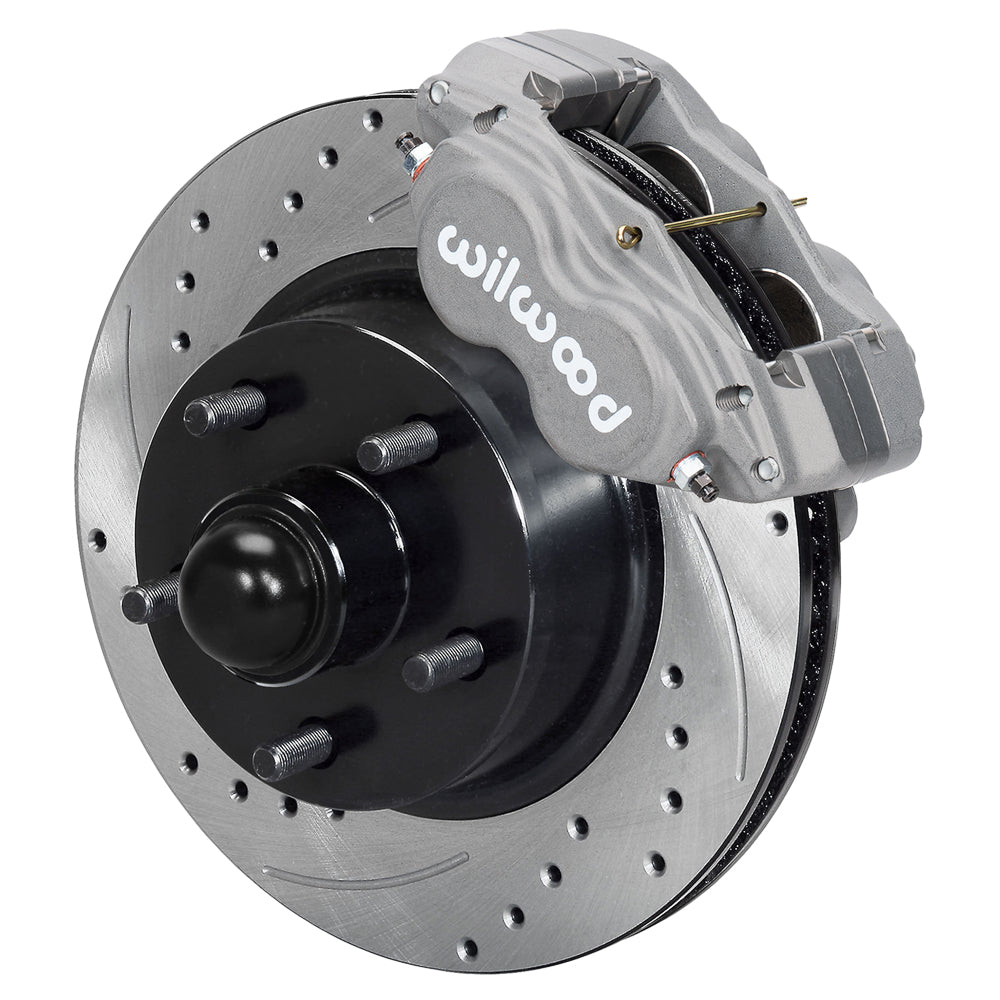

Wilwood Drilled Front Rotor/Hub Conversion with Anodized Dynalite Calipers for Selected Ford/Edsel/Mercury Full-Size Drum Spindles

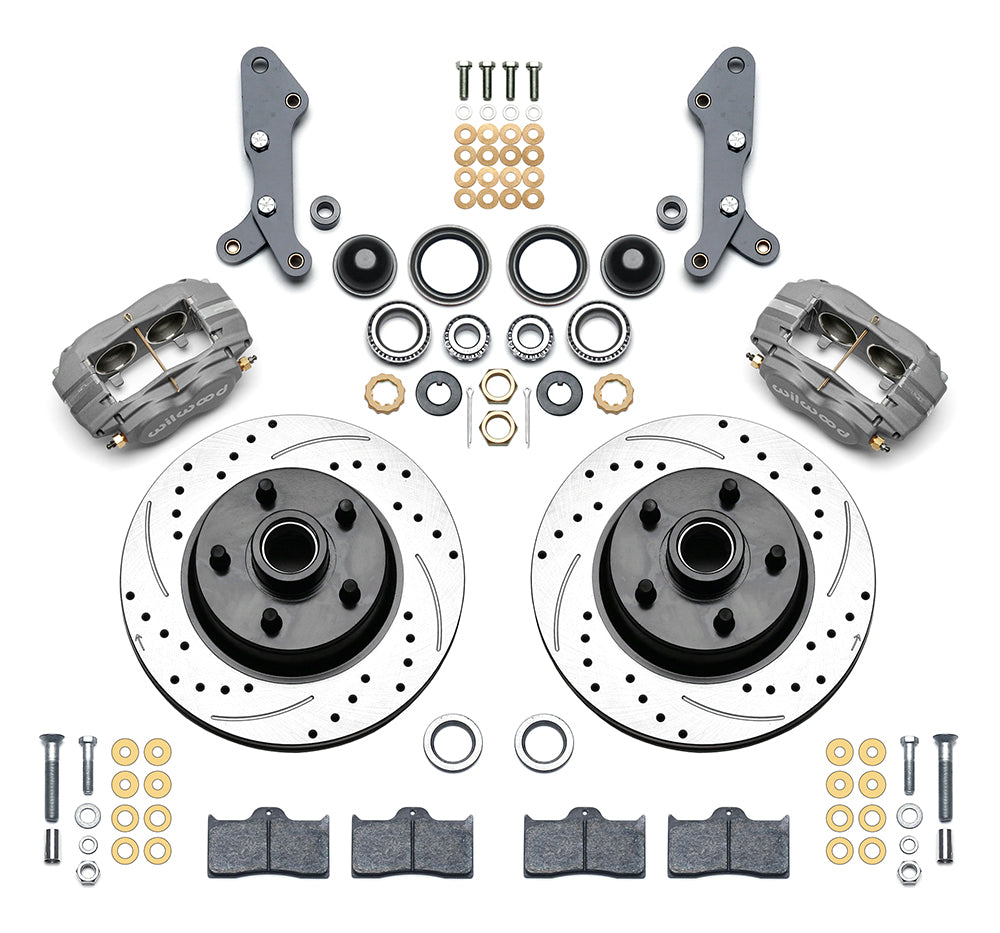

This version of the full-size Dynalite-M kit adds drilled-and-slotted friction faces to the one-piece iron rotor/hubs. The compact four-piston calipers remain anodized, with the matching spindle brackets, pads and bearing hardware supplied for the front conversion. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems and their components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications. Compatibility depends on choosing those parts around the complete braking system.

Technical Details

• Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Anodize. Finish: Type III Anodize. Inlet thread: 1/8-27 NPT.
• Caliper family: Forged Dynalite-M. Brake-pad compound: BP-10.

• Wheel interface: 5 X 4.5 in; 5 X 114.3 mm. Wheel-stud specification: 0.50 in; 12.70 mm.
• Nominal minimum wheel diameter: 14 in; 355.6 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.

• Manufacturer: Wilwood; manufacturer part number: 140-13653-D. Supplied quantity: Sold as a kit.
• Application category: Front Brake Kits - Street Performance. Axle/spindle category: Front Kits. Brake function: Disc.
• Hubs are integral with the one-piece iron rotor castings. No separate hub assemblies are supplied; the rotor/hubs include the wheel-hub function.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
• Additional installation parts: 220-8307; 220-7699; 220-12168.

• Rotor: 11.29 in; 286.77 mm outside diameter; 0.94 in; 23.88 mm thickness. Material: Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
• Rotor surface finish: Black Electro Coat.

Fitment & Compatibility

Use the model/year table and DS1049 to identify the retained factory drum spindle. The +0.18-inch hub offset changes wheel placement even though the rotor/hub is an integral casting. Supply compatible hoses and check both the wheel barrel and caliper-to-spoke space.

Separate front flexline references are 220-8307, 220-7699 and 220-12168; select the length and vehicle-end connection appropriate to the chassis. Listed hub offset is +0.18 inch per side.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions
