Wilwood Front Dynalite-M Brake Kit for Selected Full-Size Ford/Edsel/Mercury Cars, Anodized Calipers and Plain 11.30-Inch Rotor/Hubs (1957–1968)

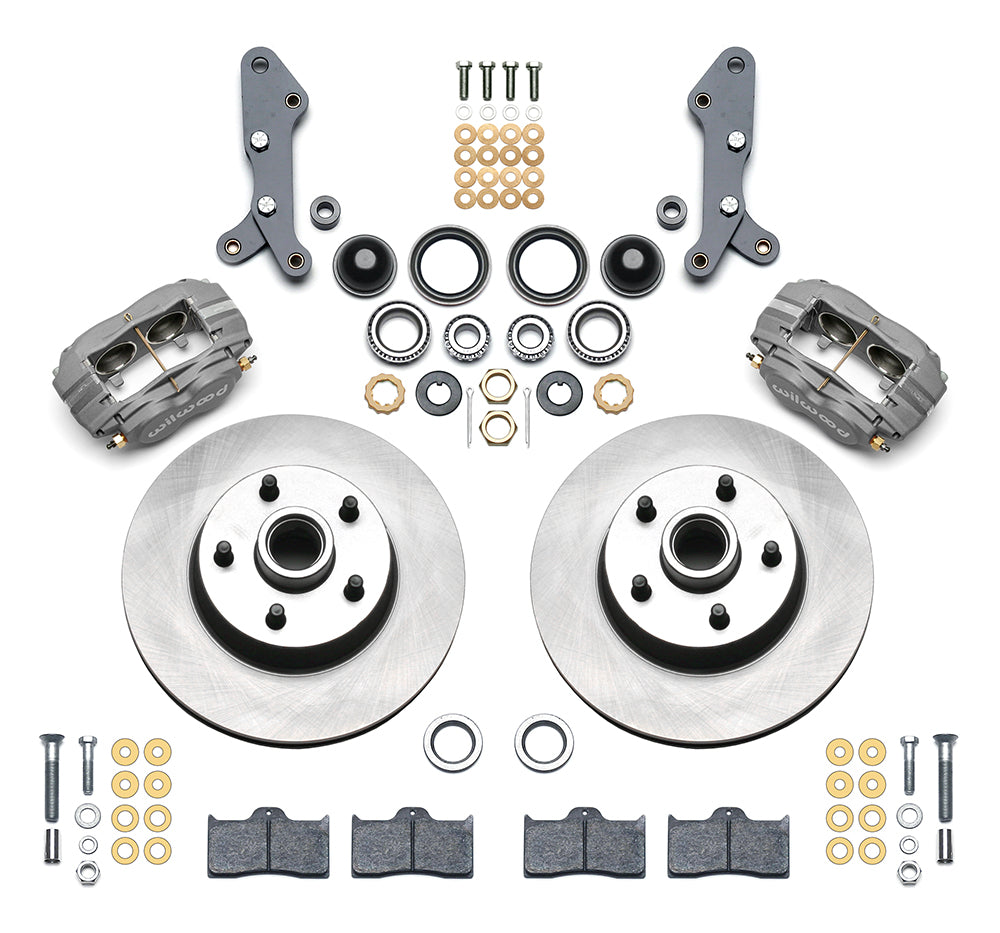

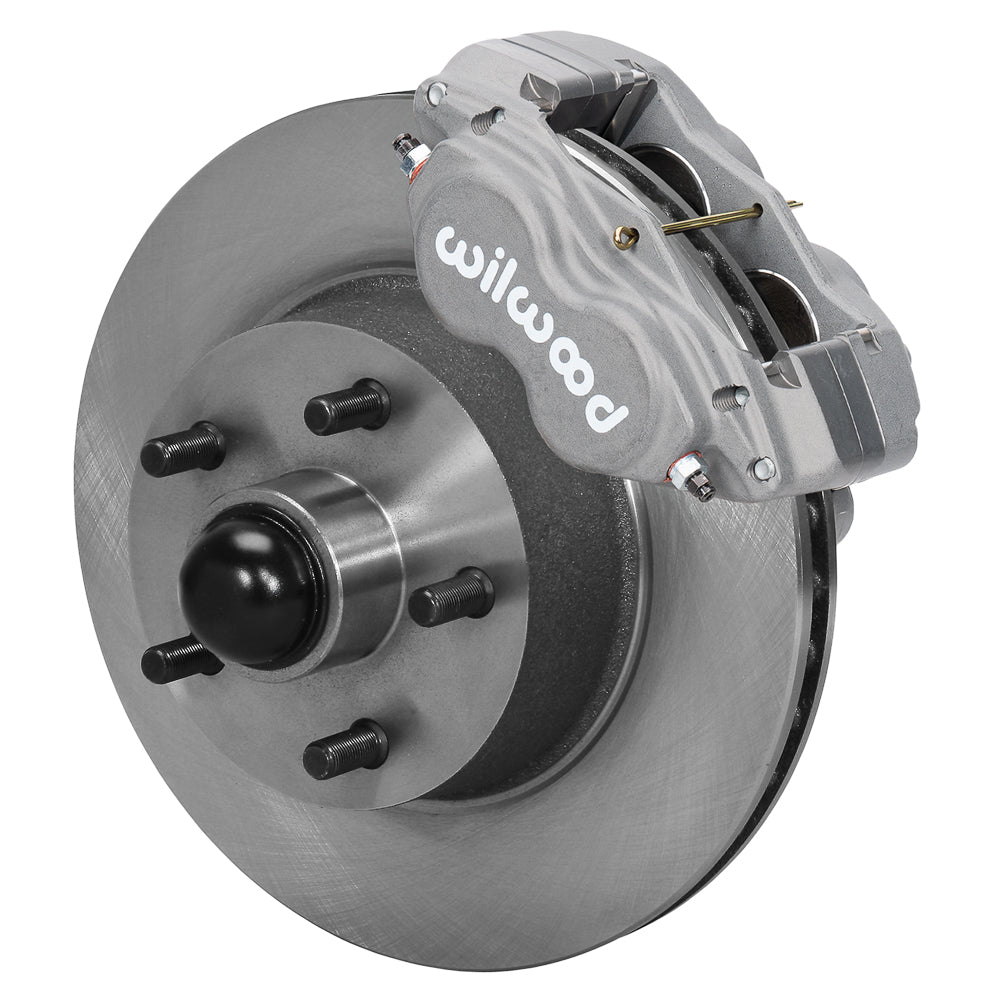

The Classic Series package combines compact Dynalite-M calipers with integral-hub iron rotors for the specified full-size factory drum spindles. This anodized-caliper version uses plain friction faces; its one-piece rotor/hubs replace the original assemblies without adding a separate aluminum hub. The manufacturer, Wilwood Engineering, was founded in 1977 by Bill Wood and is based in Camarillo, California. Its design and manufacturing work covers disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized installations each require the individual parts to suit the complete brake system.

Technical Details

• Rotor: 11.29 in; 286.77 mm outside diameter; 0.94 in; 23.88 mm thickness. Material: Iron. Construction: Vented. Friction-face style: Plain Face.
• Rotor surface finish: Plain.

• Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Anodize. Finish: Type III Anodize. Inlet thread: 1/8-27 NPT.
• Caliper family: Forged Dynalite-M. Brake-pad compound: BP-10.

• Wheel interface: 5 X 4.5 in; 5 X 114.3 mm. Wheel-stud specification: 0.50 in; 12.70 mm.
• Nominal minimum wheel diameter: 14 in; 355.6 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.

• Manufacturer: Wilwood; manufacturer part number: 140-13653. Supplied quantity: Sold as a kit.
• Application category: Front Brake Kits - Street Performance. Axle/spindle category: Front Kits. Brake function: Disc.
• Hubs are integral with the one-piece iron rotor castings. No separate hub assemblies are supplied; the rotor/hubs include the wheel-hub function.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
• Additional installation parts: 220-8307; 220-7699; 220-12168.

Fitment & Compatibility

Verify the exact Ford, Edsel or Mercury model and year below, then match the drum spindle and bearing seats. Account for the listed +0.18-inch outward wheel movement on each side. The installation requires separate flexlines and a wheel-diagram check, including any proposed 14-inch wheel.

Separate front flexline references are 220-8307, 220-7699 and 220-12168; select the length and vehicle-end connection appropriate to the chassis. Listed hub offset is +0.18 inch per side.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions

With over 20 years of parts and fitment experience, PMB Performance can help check the brake configuration before you order. Include the vehicle information, installed axle or spindle and wheel dimensions in your enquiry.
