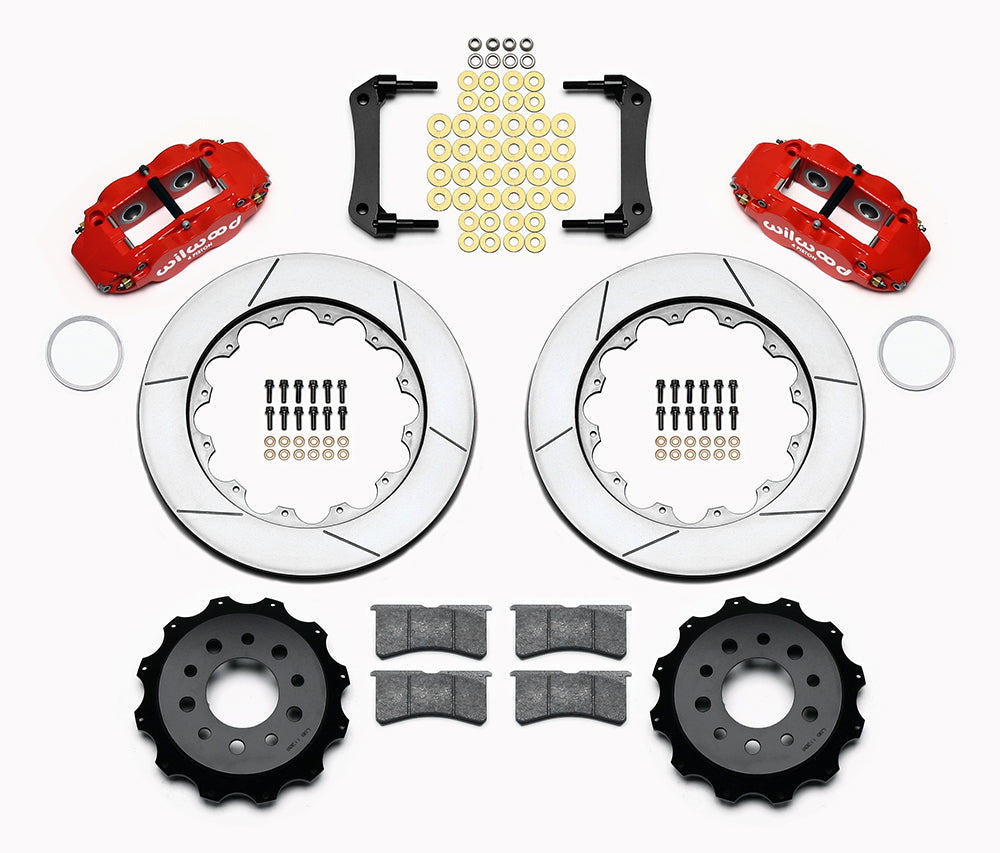

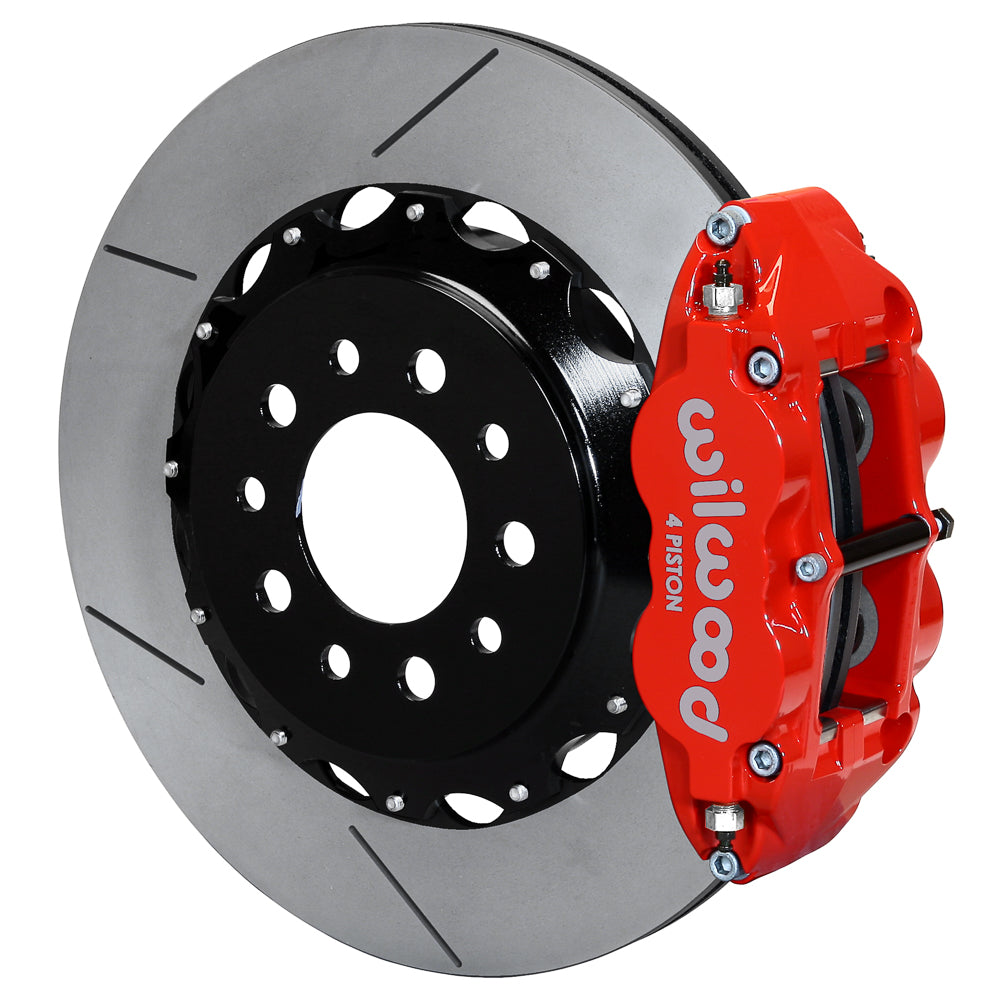

Wilwood Art Morrison Multilink IRS Rear Kit, Red Superlite Calipers and GT-Slotted Rotors for the Specified Camaro-Based Configuration

Slotted 14-inch GT rotors and red Superlite 4R calipers form this rear brake package for the specified Art Morrison Multilink IRS. The service brakes mount through the documented hats and brackets while the existing suspension and parking arrangement must remain compatible. Wilwood Engineering has designed and manufactured disc brake systems and components since Bill Wood founded the company in 1977. From its Camarillo, California base, it supplies motorsport, street-performance and specialized applications with calipers, brake rotors, master cylinders, valves, fittings and brake lines. Selecting those components requires a match to the complete system.

Technical Details

• Manufacturer: Wilwood; manufacturer part number: 140-13648-R. Supplied quantity: Sold as a kit.
• Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
• Confirm the existing Camaro-based parking-brake assembly against the specified iron hat; this kit does not establish that new parking shoes or cables are included.

• Calipers: 4 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: Forged Narrow Superlite 4R. Brake-pad compound: BP-10.

• Rotor: 14.00 in; 355.6 mm outside diameter; 0.81 in; 20.57 mm thickness. Material: Iron. Construction: Vented. Friction-face style: GT Slotted.
• Rotor-hat material: Iron. Hat offset: 0.730 inches; this hat dimension is separate from axle offset.
• Rotor surface finish: Black Electro Coat.

• Wheel interface: 5 X 4.75 in; 5 X 120.65 mm; 5 X 4.72 in; 5 X 119.89 mm; 5 X 4.5 in; 5 X 114.3 mm. Rotor/hat wheel-stud clearance: 0.520 in; 13.21 mm; 0.640 in; 16.26 mm.
• Nominal minimum wheel diameter: 18 in; 457.2 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
• Housing/spindle flange: Morrison Multilink IRS. Flange/axle offset: 0.00 in; 0 mm.

Fitment & Compatibility

Verify the Morrison suspension identification and the actual Camaro-based hub/upright hardware before ordering. Allow for the backing-plate/dust-shield and caliper-clearance modifications in DS1046. Hoses are not supplied, and full wheel clearance must be checked independently.

DS1046 specifies trimming the backing plate/dust shield to 13.75 inches diameter and relieving the caliper mounting area; the brake-line bracket hole also needs the illustrated clearance. Follow the complete procedure before assembly.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions

PMB Performance brings over 20 years of parts and brake-fitment experience to helping you select the correct configuration. Send the vehicle details and measured brake interfaces if you need help confirming this kit.
