Wilwood Red AERO6 Front Brakes with Drilled 14-Inch Rotors for Selected BMW 128i/135i/328i/335i/323i/325i/330i, Hats and Hoses Included

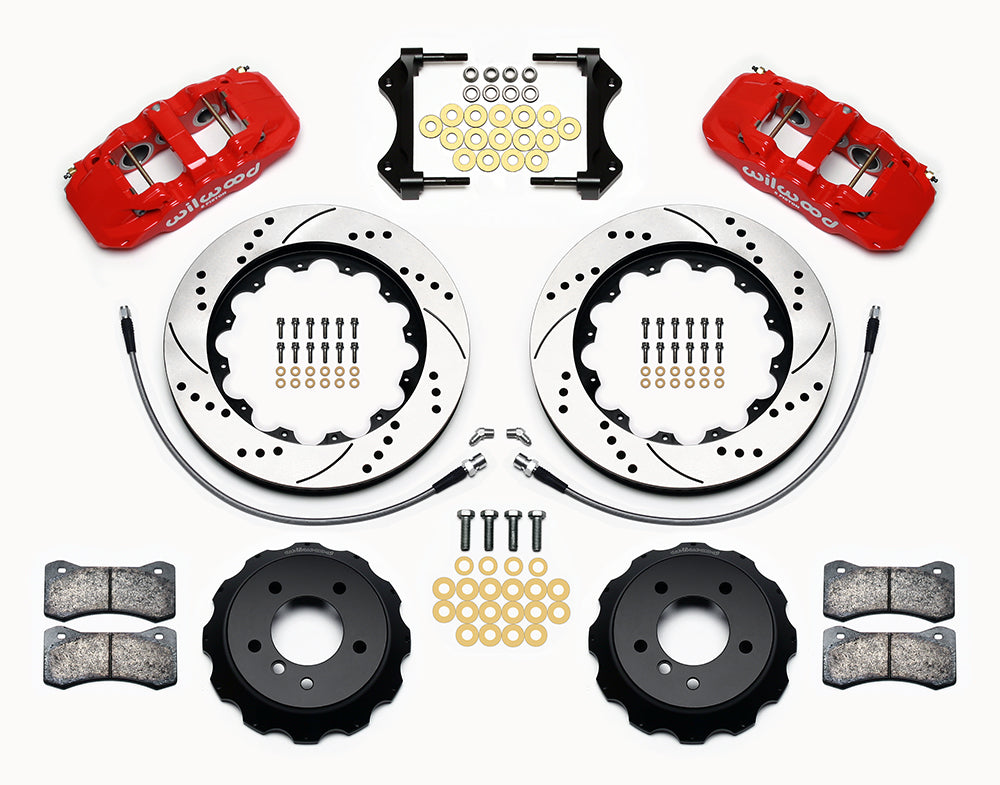

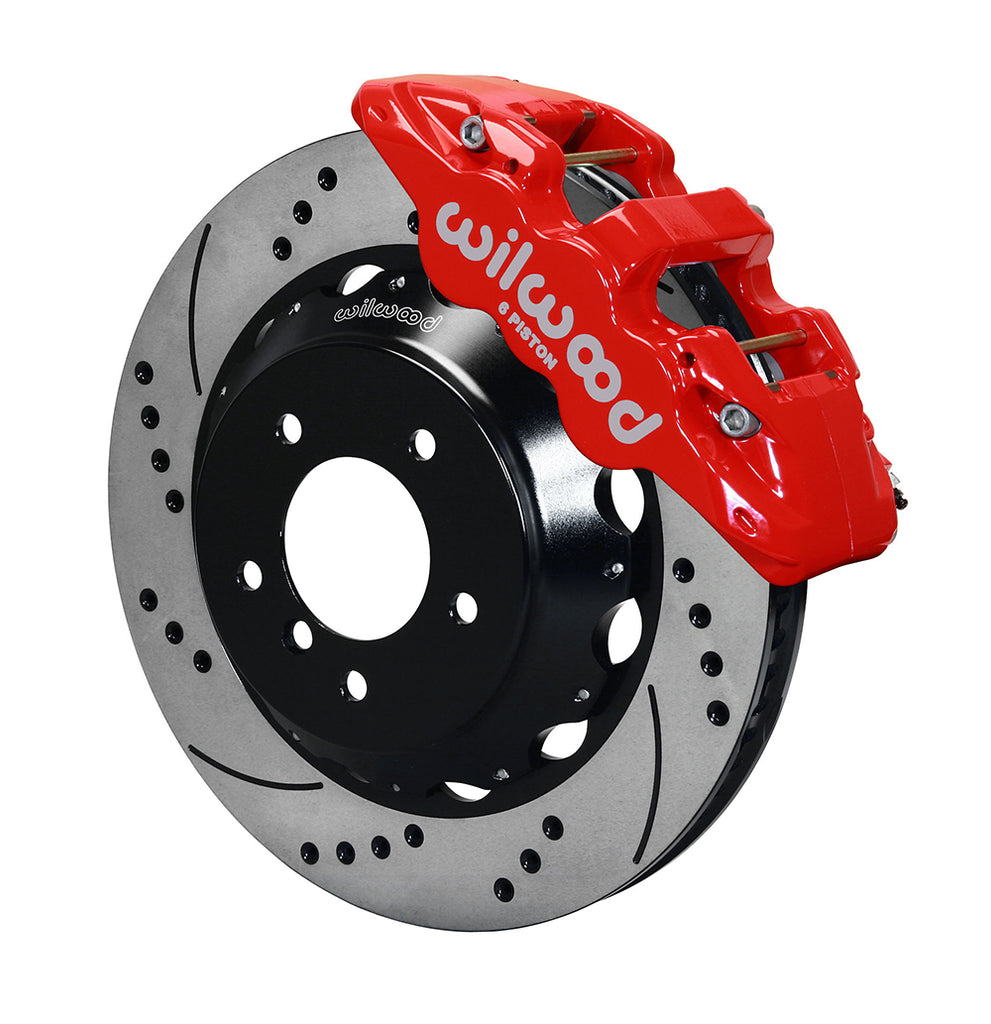

Red powder coating finishes the six-piston AERO6 calipers in this BMW front conversion. Drilled-and-slotted 14-inch rotors use the specified aluminum hats, and the supplied hydraulic lines replace the required flexible connection at each front caliper. Based in Camarillo, California, Wilwood Engineering was established by Bill Wood in 1977. It designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings and brake lines. That range serves motorsport, street-performance and specialized applications; the individual parts must be matched to the requirements of the complete braking assembly.

Technical Details

• Manufacturer: Wilwood; manufacturer part number: 140-13582-DR. Supplied quantity: Sold as a kit.
• Application category: Front Brake Kits - Street Performance. Axle/spindle category: Front Kits. Brake function: Disc.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: Yes; matched line kit 220-13646, 22.00 inches nominal length.

• Calipers: 6 stainless pistons per caliper; radial mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: AERO6. Brake-pad compound: BP-10.

• Wheel interface: 5 x 4.72 in; 5 x 119.89 mm. Rotor/hat wheel-stud clearance: 0.520 in; 13.21 mm.
• Nominal minimum wheel diameter: 18 in; 457.2 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.

• Rotor: 14.00 in; 355.6 mm outside diameter; 1.25 in; 31.75 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
• Rotor-hat material: Aluminum. Hat offset: 1.550 inches; this hat dimension is separate from axle offset.
• Rotor surface finish: Black Electro Coat.

Fitment & Compatibility

The application rows below contain important xi, rear-wheel-drive and body-style distinctions. Confirm the actual hub/brake arrangement as well as the BMW model designation. Provide the full wheel-clearance envelope required by DS1037, not simply an 18-inch rim label.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions

PMB Performance has over 20 years of experience with parts and fitment details. We can help review the installed brake arrangement when you provide the vehicle specification and the measured mounting interfaces.
